Product Overview

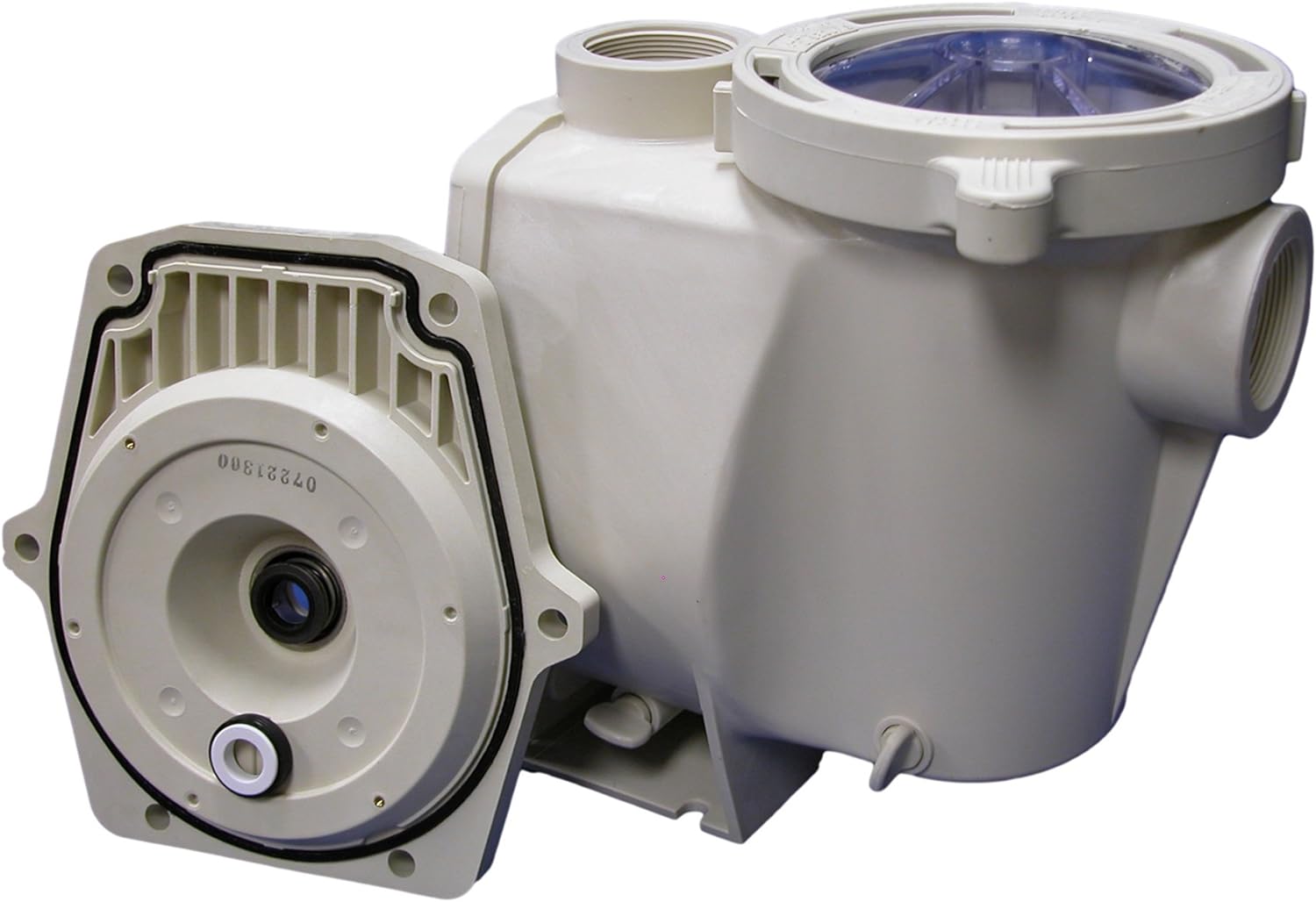

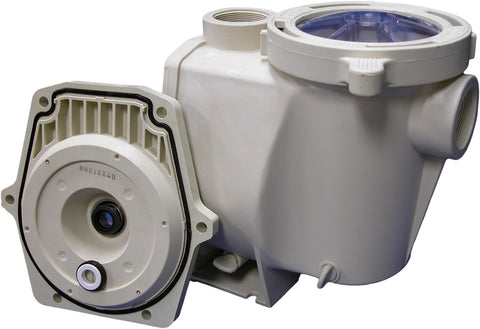

The Pentair 357149 Almond Volute and Seal Plate Replacement Kit is a genuine OEM wet-end repair kit designed for compatible Pentair IntelliFlo and WhisperFlo pool pumps. It replaces major pump housing and sealing components that may become cracked, warped, worn, or damaged over time.
This complete kit is an effective solution for repairing water leaks, air leaks, loss of prime, reduced suction, or damage around the pump housing and seal plate. Its almond finish matches older Pentair IntelliFlo VF and compatible WhisperFlo pump models.
Using genuine Pentair replacement parts helps maintain proper component alignment, hydraulic performance, and sealing throughout the pump wet end.
Key Features
- Genuine Pentair OEM replacement kit
- Almond-colored pump components
- Replaces the volute and seal plate assembly
- Designed for compatible IntelliFlo VF, IntelliFlo VS, and WhisperFlo pumps
- Includes major wet-end housing and sealing components
- Helps repair cracked or damaged pump housings
- Helps correct water leaks and suction-side air leaks
- Restores proper alignment between the motor and pump wet end
- Allows repair of the existing pump without replacing the complete unit
- Manufactured for an accurate factory fit
Kit Includes

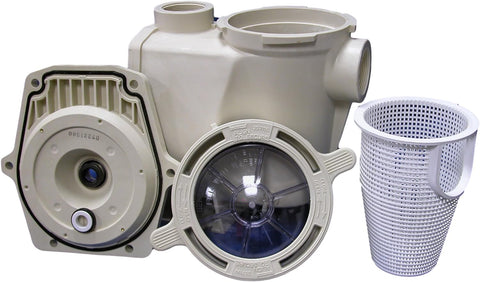

The Pentair 357149 kit includes:
- Volute or strainer pot assembly
- Almond seal plate
- Pump lid or cover
- Lid O-ring
- Pump strainer basket
- Stainless-steel clamp assembly
- Seal plate gasket
- Shaft seal assembly
- Drain plug knob
- Drain plug O-ring
- Required wet-end sealing components
Kit contents may be packaged individually or preassembled depending on the current Pentair production configuration.
Benefits
- Restores the structural integrity of the pump wet end
- Helps eliminate leaks caused by cracked or warped components
- Improves pump priming and suction performance
- Maintains proper sealing around the motor shaft
- Provides genuine OEM compatibility
- Reduces the need to replace the complete pump
- Includes multiple commonly replaced components in one kit
- Suitable for professional pump repair and refurbishment
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Type | Volute and Seal Plate Replacement Kit |
| Manufacturer Part Number | 357149 |
| SKU | 357149 |
| UPC/Barcode | 788379659691 |
| Color | Almond |
| Primary Application | Pool Pump Wet-End Repair |
| Compatible Pump Families | IntelliFlo VF, Select IntelliFlo VS and WhisperFlo Models |
| Volute Included | Yes |
| Seal Plate Included | Yes |
| Shaft Seal Included | Yes |
| Pump Lid Included | Yes |
| Strainer Basket Included | Yes |
| Drain Plug Components Included | Yes |
| Product Condition | New OEM Replacement Part |
Compatible Pump Models
The Pentair 357149 kit is commonly used with compatible models from the following pump families:
- Pentair IntelliFlo VF pumps
- Select Pentair IntelliFlo VS pumps
- Pentair WhisperFlo high-performance pumps
- Select Pentair WFE pump models
- Compatible Sta-Rite IntelliPro pump applications using the same wet-end design
Pump compatibility can vary by model number, manufacturing date, horsepower, and wet-end configuration. Verify the original pump model and parts diagram before ordering.
Common Reasons for Replacement
This kit may be needed when the pump has:
- A cracked volute or strainer housing
- Water leaking between the seal plate and volute
- A damaged or warped seal plate
- A leaking shaft seal
- Air entering through the pump housing
- Difficulty priming
- Reduced suction or circulation
- A damaged pump lid or lid sealing surface
- Worn drain plug components
- Freeze damage to the wet end
Electrical or motor-related problems will not normally be corrected by replacing this kit.
Installation Information
Installation requires separating the pump motor and internal components from the existing wet end. The impeller, diffuser, motor, and other reusable parts may need to be transferred to the new assembly.
General installation steps include:
- Shut off electrical power at the circuit breaker.
- Close the necessary plumbing valves.
- Drain all water from the pump.
- Disconnect the motor assembly from the existing volute.
- Remove the diffuser and impeller as required.
- Inspect the impeller, diffuser, and motor shaft for damage.
- Install the supplied shaft seal without touching the polished sealing surfaces.
- Transfer the compatible internal components to the new seal plate.
- Confirm that all O-rings and gaskets are seated correctly.
- Reassemble the pump and tighten the clamp evenly.
- Fill the strainer housing with water before restarting.
- Check the complete assembly for water and air leaks.
Professional installation is recommended. Improper shaft-seal installation can cause immediate leakage or damage to the replacement seal.
Confirm Before Ordering
Please verify the following before purchasing:
- Your required part number is 357149
- Your pump uses the almond-colored wet-end design
- Your pump is a compatible IntelliFlo VF, IntelliFlo VS, WhisperFlo, or WFE model
- You need the complete volute and seal plate kit rather than one individual component
- Your existing impeller and diffuser are reusable or will be ordered separately
- Your pump model and production date match the applicable Pentair parts diagram
This kit does not include a replacement motor, variable-speed drive, impeller, or diffuser unless specifically included in the current manufacturer packaging.
Warranty Information
The Pentair 357149 replacement kit is covered by Pentair’s limited manufacturer warranty against qualifying defects in materials and workmanship.
Warranty coverage is subject to Pentair’s current terms, proper installation, correct application, and normal operating conditions. Damage caused by freeze conditions, improper assembly, dry operation, incorrect plumbing, chemical exposure, or improper shaft-seal installation may not be covered.
Customer Q&A
Q: Does this kit fit the Pentair IntelliFlo VF pump?
A: Yes. The 357149 kit is listed for compatible Pentair IntelliFlo VF pump models.
Q: Is the seal plate almond-colored?
A: Yes. This kit uses the almond finish found on older compatible Pentair pump models.
Q: Does the kit include the shaft seal?
A: Yes. The kit includes a replacement shaft seal assembly.
Q: Does it include the pump basket and lid?
A: Yes. The kit includes the strainer basket, pump lid, and lid O-ring.
Q: Will this repair a cracked pump housing?
A: Yes. The kit replaces the volute or strainer housing and is commonly used to repair a cracked wet end.
Q: Does this include the impeller and diffuser?
A: No. The existing compatible impeller and diffuser are normally transferred to the new assembly or purchased separately.
Q: Will this repair a bad motor or variable-speed drive?
A: No. This is a wet-end replacement kit and does not repair electrical, motor, bearing, or drive-related failures.
Q: Can a homeowner install this kit?
A: Installation requires pump disassembly and proper shaft-seal installation. Professional installation is recommended to prevent leaks or component damage.
