Product Overview

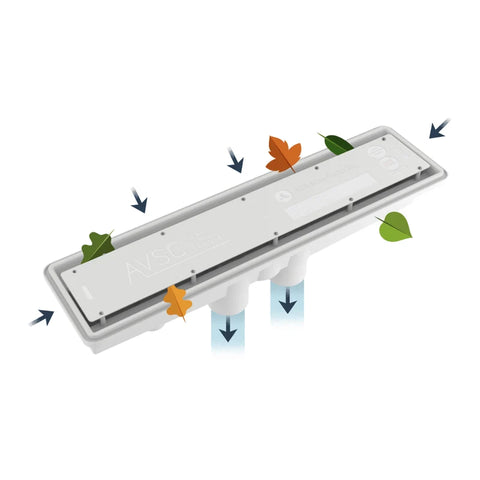

Efficiently manage heavy debris loads with the Pentair A&A AVSC Single Inlet Top Channel Drain. Engineered to capture leaves, twigs, and large particulates, this channel drain directs accumulated waste directly into the circulation system while maintaining uninterrupted water flow across the pool floor.
Supports Pentair A&A in-floor cleaning configurations by combining main-function circulation with an enlarged top-opening channel. The single-inlet design accommodates projects requiring one dedicated suction line, simplifying plumbing rough-ins. AVSC technology integrates cleaning and hydraulic performance, helping maintain optimal system pressure and ensuring reliable debris transport during automated vacuum cycles. The Pebble Top lid enables custom enclosure with pebble, aggregate, or stone finishes, removing the visual impact of exposed grated covers. Featuring a Dark Gray body, this model coordinates seamlessly with darker plaster, pebble-beacon, quartz, and aggregate interior color palettes common in contemporary pool construction.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair - A&A |
| Product Series | AVSC / PHX |
| Manufacturer Part Number | 280072 |
| Product Type | Pool Main / Channel Drain |
| Drain Configuration | Single Inlet |
| Top Style | Pebble Top |
| Color | Dark Gray |
| Application | Pool, Spa & Water Feature |
| Applications | Residential & Commercial Pools, Spas, Water Features |
| Primary Function | Circulation & Heavy Debris Removal |
| Installation Type | In-Floor |
| Approx. Product Weight | 10 lb |
| UPC / Barcode | 818965015669 |
| Warranty | 1 Year Limited Warranty |
| Dimensions (Shipping) | 35 x 9 x 9 in. |
Warranty & Compatibility
Built against safety guidelines, this drain conforms to applicable ANSI, NSF, and VGB anti-entrapment standards. Install main drains exclusively by qualified professionals in accordance with local plumbing codes, health regulations, and suction-vac system requirements.
Pentair - A&A AVSC Dark Gray PHX Pebble Top Single Inlet Top Channel Drain | 280072
| Specification | Details |
|---|---|
| Manufacturer | Pentair - A&A |
| Product Series | AVSC / PHX |
| Manufacturer Part Number | 280072 |
| Product Type | Pool Main / Channel Drain |
| Drain Configuration | Single Inlet |
| Top Style | Pebble Top |
| Color | Dark Gray |
| Application | Pool, Spa & Water Feature |
| Applications | Residential & Commercial Pools, Spas, Water Features |
| Primary Function | Circulation & Heavy Debris Removal |
| Installation Type | In-Floor |
| Approx. Product Weight | 10 lb |
| UPC / Barcode | 818965015669 |
| Warranty | 1 Year Limited Warranty |
| Dimensions (Shipping) | 35 x 9 x 9 in. |
