Product Overview

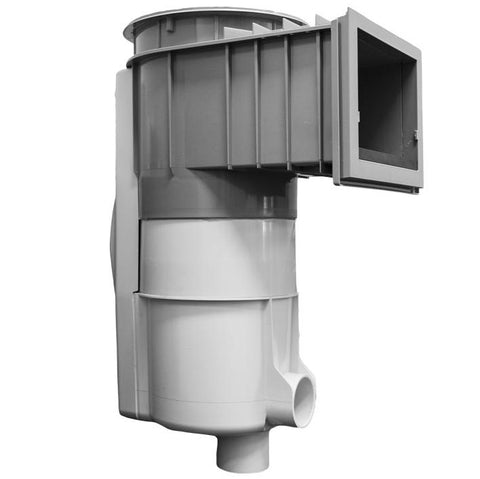

The Pentair A&A QuikSkim 504302 Venturi Powered Pool Skimmer is designed to provide strong surface skimming by using the pool’s return-water pressure to create a Venturi vacuum. This allows the skimmer to remove floating debris while reducing its dependence on traditional pump suction.

The 504302 configuration features a gray skimmer body, gray ring and lid, Protecta Foam, and an integrated bonding lug. Pentair specifically identifies 504302 as the bonding-lug version of its gray-body/gray-lid QuikSkim assembly.

How QuikSkim Works

Traditional skimmers primarily depend on suction from the circulation pump.

QuikSkim works differently.

Return water entering the skimmer creates a Venturi effect, producing a strong vacuum that pulls surface debris toward and into the skimmer.

This design allows more pump suction to remain available for other parts of the circulation system, including:

• Main drains
• In-floor cleaning systems
• Suction cleaning circuits
• Overall pool circulation

Pentair describes QuikSkim as particularly effective when paired with a variable-speed pump.

Ideal For

This color combination is an excellent choice for:

Gray pool decks

Concrete decks

Stone finishes

Modern pool designs

Darker coping and hardscape finishes

Key Features

Genuine Pentair A&A OEM QuikSkim

Manufacturer Part Number: 504302

Venturi-powered skimming technology

Gray body

Gray ring and lid

Includes Protecta Foam

Includes bonding lug

Uses existing return-water pressure to create strong surface-skimming action

Reduces reliance on pump suction for skimming

Helps dedicate more pump suction to the pool's main drain and cleaning system

Works especially well with variable-speed pump systems

Durable pool-grade construction

Designed for professional pool construction and renovation applications

Pentair states that QuikSkim uses return water rather than pump suction to create its skimming action, helping optimize overall circulation-system efficiency.

Gray Body, Ring & Lid

Part 504302 is the complete gray-body / gray-ring / gray-lid configuration.

Pentair offers QuikSkim in several body and lid color combinations, so checking the complete part number is important when matching an existing installation.

Protecta Foam Included

This configuration includes Protecta Foam, which is used during the construction process to help protect the skimmer assembly.

Pentair categorizes 504302 under its QuikSkim Complete with Protecta Foam series.

Bonding Lug Included

A major distinction with 504302 is the included bonding lug.

Pentair's ordering chart distinguishes between QuikSkim configurations without the lug and equivalent models supplied with a bonding lug. For the gray-body/gray-lid version:

505302 – without bonding lug
504302 – with bonding lug

This makes 504302 the appropriate choice when the pool installation requires the factory bonding provision.

Benefits

Energy-Efficient Circulation Design

Because QuikSkim uses existing return-water flow to generate its skimming action, it can reduce the amount of direct suction that must be dedicated to the skimmer.

Pentair identifies energy optimization as one of the primary benefits of the QuikSkim design.

This can be especially advantageous when building a system around:

• Variable-speed pumps
• In-floor cleaning systems
• Energy-efficient pool designs
• High-performance circulation systems

Specifications

Customer-Facing Q&A

Q: What is Pentair 504302?
A: 504302 is the Pentair A&A QuikSkim Venturi-powered skimmer with a gray body, gray ring/lid, Protecta Foam, and bonding lug.

Q: Does 504302 include the lid?
A: Yes. This is the complete gray-body configuration with a gray ring and lid.

Q: Does it include Protecta Foam?
A: Yes.

Q: Does it include a bonding lug?
A: Yes. The bonding lug is one of the primary differences between 504302 and 505302.

Q: What's the difference between 504302 and 505302?
A: Both use a gray body with gray ring/lid and Protecta Foam. 504302 — includes bonding lug; 505302 — version without the bonding lug.

Q: Is QuikSkim a normal suction skimmer?
A: Not exactly. It uses Venturi-powered return water to create its primary skimming action rather than relying exclusively on pump suction.

Q: Does it work well with variable-speed pumps?
A: Yes. Pentair specifically notes that QuikSkim works effectively in conjunction with variable-speed pump systems.

Q: What color is 504302?
A: Gray body with gray ring and gray lid.
