Product Overview

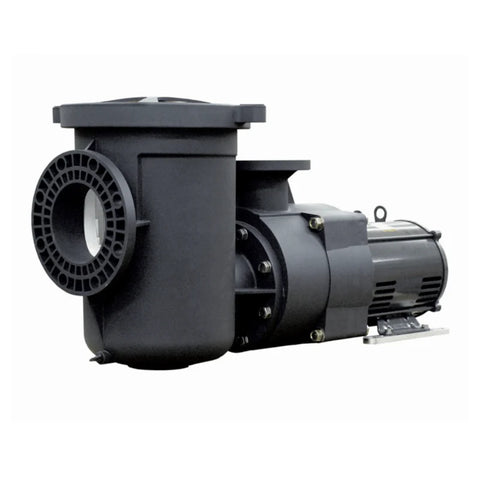

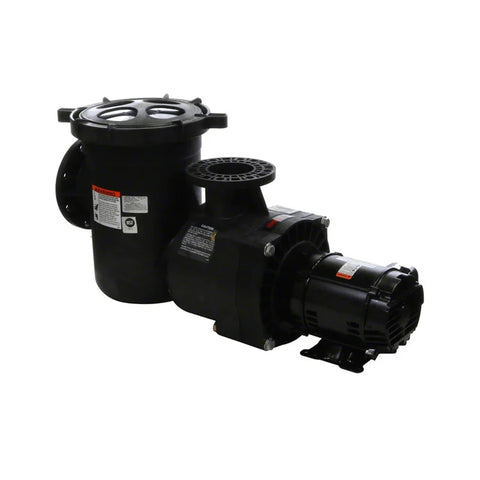

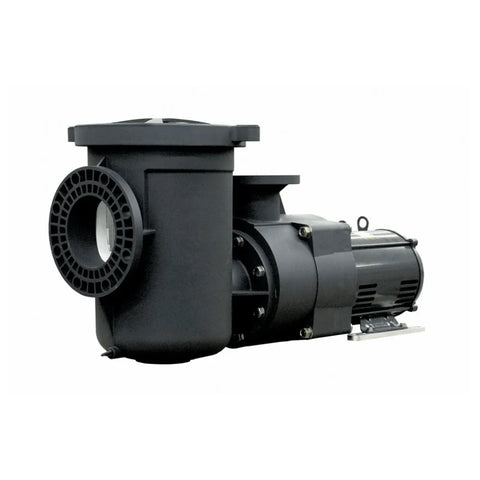

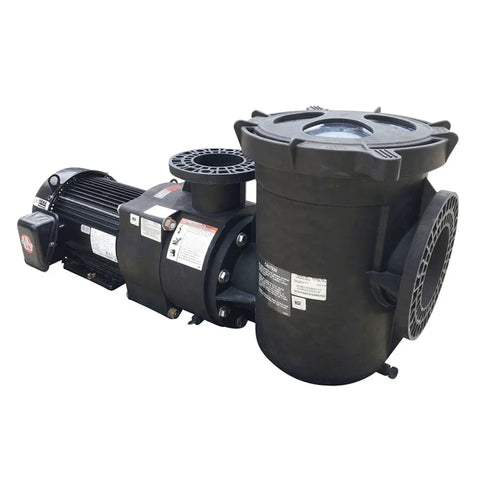

The Pentair 340238 EQ1000 EQ Series Commercial Plastic Pool Pump is a high-performance 10 HP pump engineered for demanding commercial swimming pools, aquatic facilities, and high-flow water circulation systems. This configuration features a 230V single-phase premium-efficiency motor and includes the EQ Series hair and lint strainer.

The EQ Series combines strong hydraulic performance with lightweight, non-corrosive plastic construction. Its efficient closed-impeller design helps reduce motor loading while providing reliable operation in demanding commercial applications.

Key Features

10 HP Commercial Performance: Designed for high-flow commercial swimming pools and other demanding water circulation systems.

230V Single-Phase Motor: Equipped with a 10 HP, 230V, 60 Hz single-phase motor rated at 40 amps.

Premium-Efficiency Motor: NEMA premium-grade efficiency motor provides dependable commercial-duty operation.

Hair and Lint Strainer Included: Includes the EQ Series strainer pot with a large-capacity basket and clear Cam and Ramp lid for convenient inspection and maintenance.

Corrosion-Resistant Plastic Construction: Commercial-grade non-corrosive plastic components provide durability while reducing weight compared with traditional metal commercial pumps.

Large Commercial Connections: Features 6-inch suction and 4-inch discharge connections for high-flow commercial plumbing systems.

Benefits

High-performance 10 HP commercial circulation

230V single-phase operation

Integrated hair and lint strainer

Corrosion-resistant commercial-grade construction

Efficient closed-impeller design

Self-priming configuration with strainer

Easy-access strainer basket and clear lid

Back pull-out design simplifies pump servicing

Lightweight compared with traditional metal commercial pumps

Specifications

Warranty & Compatibility

Installation Information

The Pentair 340238 requires a properly sized 230V single-phase electrical supply, commercial plumbing, appropriate motor protection, grounding, and bonding.

The pump should be installed in a cool, dry, well-ventilated equipment area with adequate clearance for motor and wet-end servicing. Pentair requires external thermal overload protection for EQ Series motors.

Installation should be completed by a qualified commercial pool professional and licensed electrician where required.

Confirm Before Ordering

Verify the electrical and hydraulic requirements before purchase.

This model is specifically:

• Pentair 340238
• EQ1000
• 10 HP
• 230V
• Single phase
• 40 amps
• Includes hair and lint strainer
• 6-inch suction / 4-inch discharge

Do not confuse this model with 340237, which is the EQ1000 10 HP single-phase configuration supplied without the strainer pot.

Warranty Information

The Pentair 340238 carries a 1-year general warranty. Warranty eligibility and coverage may depend on proper installation, application, purchase channel, proof of purchase, and Pentair's current warranty terms.

Customer-Facing Q&A

Q: Does the Pentair 340238 include a strainer?
A: Yes. This model includes the EQ Series hair and lint strainer assembly.

Q: Is this pump three phase?
A: No. The 340238 is a 230V single-phase commercial pump.

Q: How many amps does the motor draw?
A: The listed full-load amperage is 40 amps at 230V.

Q: What size plumbing connections does it use?
A: The pump uses a 6-inch suction and 4-inch discharge configuration.

Q: What is the difference between 340238 and 340237?
A: Both are 10 HP EQ1000 single-phase configurations. The 340238 includes the strainer pot, while the 340237 is supplied without the strainer.
