Product Overview

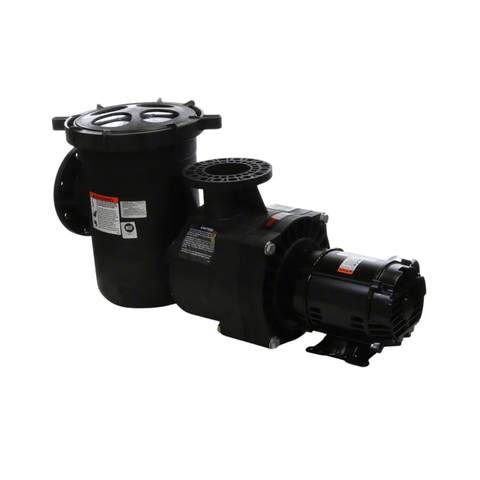

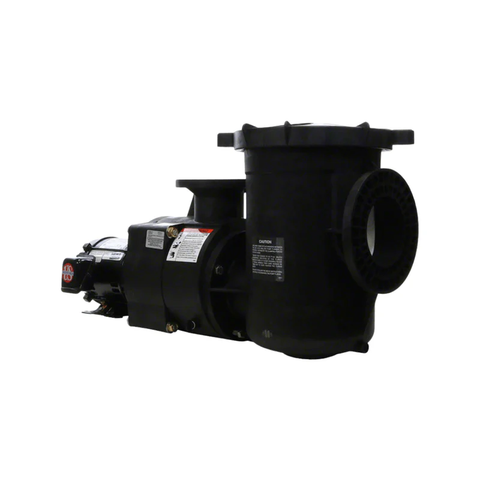

The Pentair EQ Series® 340604 EQKT500 Commercial Plastic Pool Pump is a 5 HP, three-phase pump designed for demanding commercial swimming pool and water applications. This configuration includes the integrated strainer pot and a TEFC motor, providing a durable solution for commercial facilities requiring dependable circulation and corrosion-resistant construction.

Pentair’s EQ Series is engineered for strong hydraulic efficiency, quiet operation, and reduced motor loading. The all-plastic hydraulic design helps resist corrosion commonly encountered in commercial aquatic environments.

Key Features

5 HP Commercial Performance
The 340604 uses a 5 HP motor designed for continuous-duty commercial pool circulation applications.

208-230/460V Three-Phase Motor
Designed for three-phase electrical systems with selectable 208-230/460V operation, allowing flexibility across commercial installations.

TEFC Motor Construction
Part 340604 is the EQKT500 TEFC motor configuration, helping protect the motor from environmental contaminants in commercial equipment rooms.

Integrated Strainer Pot
This model includes the Pentair commercial strainer assembly, which helps capture hair, lint, and larger debris before it reaches the pump.

Corrosion-Resistant Plastic Construction
The EQ Series uses non-corrosive engineered plastic hydraulic components for increased durability in pool and aquatic environments.

6" Suction x 4" Discharge
When configured with the strainer pot, the EQ Series uses large 6-inch suction and 4-inch discharge connections for high-flow commercial applications.

Benefits

• 5 HP commercial pool pump
• Three-phase operation
• 208-230/460V compatibility
• TEFC motor
• Includes strainer pot and basket
• High hydraulic efficiency
• Corrosion-resistant pump construction
• Quiet, close-coupled operation
• Designed for commercial pools and aquatic facilities
• Genuine Pentair commercial equipment

Specifications

Pentair identifies 340604 as the EQKT500 5 HP TEFC configuration with strainer, operating at 208-230/460V, three phase.

Installation Information

This commercial pump should be installed and serviced by a qualified pool professional and licensed electrician. Electrical supply voltage, phase, motor protection, plumbing size, system flow, and total dynamic head should all be verified before installation.

Pentair recommends appropriate commercial plumbing practices and proper straight-pipe placement near the strainer assembly for optimal hydraulic performance.

Confirm Before Ordering

Please confirm:

• Pentair part number 340604
• Model EQKT500
• 5 HP requirement
• Three-phase electrical service
• 208-230/460V compatibility
• TEFC motor requirement
• Strainer-pot configuration
• 6" suction and 4" discharge plumbing
• Required flow rate and total dynamic head

Commercial pumps should be selected based on the complete hydraulic requirements of the circulation system rather than horsepower alone.

Warranty Information

Warranty coverage is subject to Pentair’s current commercial product warranty terms, installation requirements, application, and purchase channel. Professional installation is recommended.

Customer Q&A

Does Pentair 340604 include the strainer pot?
Yes. Pentair lists 340604 as the with-pot EQKT500 configuration.

Is this pump three phase?
Yes. The 340604 is a three-phase commercial pump.

What voltage does it operate on?
It is rated for 208-230/460V operation.

What is the amperage?
Pentair publishes full-load amperage of approximately 13.5 amps at 208V, 12.3 amps at 230V, and 6.2 amps at 460V.

Is this a TEFC motor?
Yes. Part 340604 is the TEFC EQKT500 configuration.
