Product Overview

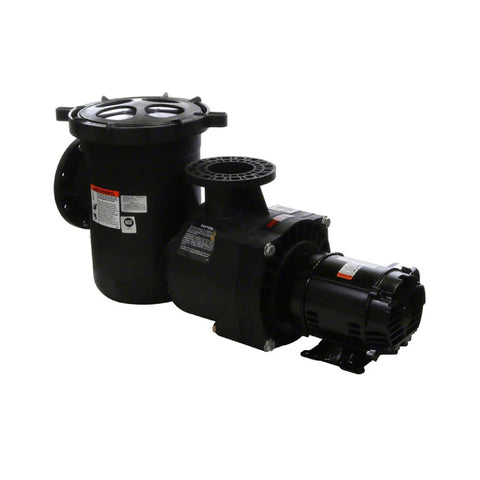

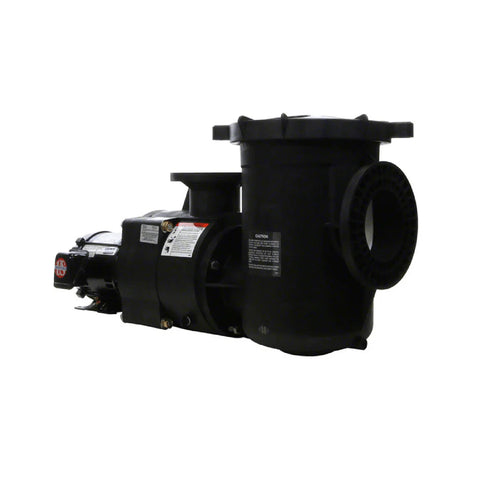

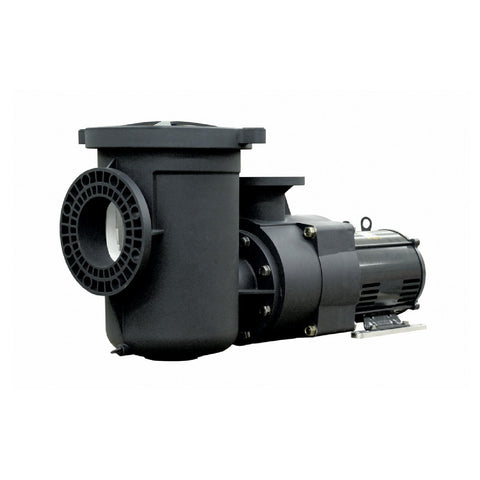

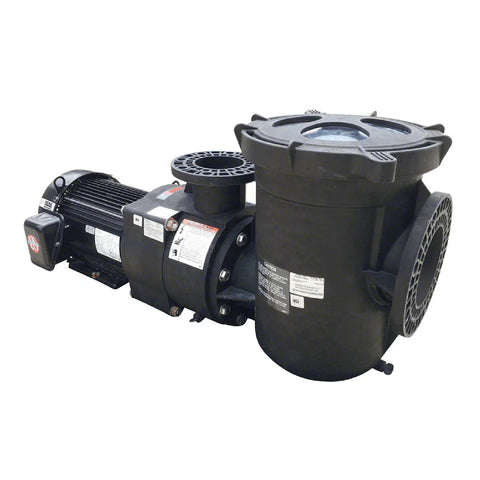

The Pentair 340605 EQKT750 EQ Series Commercial Pump is a high-performance 7.5 HP pump designed for demanding commercial swimming pools, aquatic facilities, and high-flow water circulation applications. This model features a three-phase Totally Enclosed Fan Cooled (TEFC) motor operating on 208-230/460V and includes the EQ Series hair and lint strainer.
The EQ Series combines efficient hydraulic performance with commercial-grade, non-corrosive plastic construction. Its TEFC motor provides additional protection from moisture, dirt, and airborne contaminants, making the 340605 well suited for demanding commercial equipment environments.
Key Features
7.5 HP Commercial Performance
Engineered for high-flow commercial pool and aquatic circulation applications.
Three-Phase Multi-Voltage Motor
Operates on 208-230/460V, three-phase, 60 Hz electrical service.
TEFC Motor Construction
Totally Enclosed Fan Cooled design provides additional environmental protection compared with an open motor enclosure.
Hair and Lint Strainer Included
Includes the EQ Series strainer assembly with a large-capacity basket and clear Cam and Ramp lid for convenient inspection and servicing.
Corrosion-Resistant Construction
Commercial-grade plastic hydraulic components provide excellent resistance to corrosion and harsh pool environments.
Large Commercial Connections
Features 6-inch suction and 4-inch discharge ANSI flange connections.
Benefits
- High-performance 7.5 HP commercial circulation
- TEFC motor for enhanced environmental protection
- Three-phase 208-230/460V operation
- Integrated hair and lint strainer
- Corrosion-resistant plastic construction
- Self-priming design
- Easy-access strainer basket
- Service-friendly back pull-out construction
- Compatible with appropriate VFD applications
- Designed for continuous-duty commercial operation
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Series | EQ Series |
| Model | EQKT750 |
| Manufacturer Part Number / SKU | 340605 |
| UPC / Barcode | 788379864750 |
| Product Type | Commercial Pool Pump |
| Horsepower | 7.5 HP |
| Voltage | 208-230/460V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Full Load Amps | 19.9-17.8/8.9A |
| Service Factor | 1.25 |
| Service Factor HP | 9.38 HP |
| Motor Enclosure | Totally Enclosed Fan Cooled (TEFC) |
| Motor Class | Class F |
| Motor Speed | Approx. 3500 RPM |
| Suction Connection | 6 in. |
| Discharge Connection | 4 in. |
| Connection Type | ANSI Flange |
| Strainer Included | Yes |
| Construction | Commercial-Grade Non-Corrosive Plastic |
| Shipping Dimensions | 23 x 32 x 39 in. |
| Application | Commercial Pool / Water Circulation |
| Warranty | 1-Year General Warranty |
Installation Information
The Pentair 340605 requires a properly configured 208-230/460V three-phase electrical supply, appropriately sized commercial plumbing, grounding, bonding, and external thermal overload protection.
Three-phase motor rotation must be verified after electrical connection. Incorrect rotation can reduce hydraulic performance and potentially damage equipment.
The pump should be installed in a properly ventilated equipment area with adequate clearance for motor and wet-end servicing. Installation should be completed by a qualified commercial pool professional and licensed electrician where required.
Confirm Before Ordering
This model is specifically:
- Pentair 340605
- EQKT750
- 7.5 HP
- 208-230/460V
- Three phase
- 60 Hz
- 19.9-17.8/8.9 amps
- TEFC motor
- Includes hair and lint strainer
- 6-inch suction / 4-inch discharge
Do not confuse the 340605 EQKT750 with the 340033 EQK750, which uses an Open Drip Proof motor rather than a TEFC motor.
Warranty Information
The Pentair 340605 carries a 1-year general warranty. Warranty eligibility and coverage may depend on proper installation, application, purchase channel, proof of purchase, and current Pentair warranty requirements.
Customer Q&A
Q: Does the Pentair 340605 include a strainer?
Yes. This model includes the EQ Series hair and lint strainer assembly.
Q: Is the 340605 a TEFC pump?
Yes. It uses a Totally Enclosed Fan Cooled three-phase motor.
Q: What voltage does it support?
The pump is designed for 208-230/460V three-phase electrical service.
Q: What is the service factor?
The motor has a 1.25 service factor and a 9.38 service factor horsepower rating.
Q: What replacement motor is used with this pump?
Pentair part 350732Z is the corresponding 7.5 HP three-phase TEFC replacement motor for the EQKT750 configuration.
