Product Overview

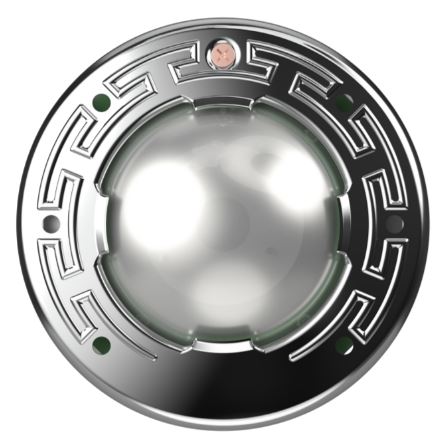

The Pentair IntelliBrite Architectural Series Spa Light | 602196 provides bright, energy-efficient white LED illumination for compatible spa and pool-light niches. Designed in a compact spa-size fixture, it uses Pentair’s Architectural Series optical system to spread light more evenly while reducing hot spots, glare, dark areas, and visible light striping.

Model 602196 operates on 120 volts, consumes only 18 watts, and includes a permanently attached 150-foot power cord. Pentair rates its white LED output as comparable to a traditional 100-watt incandescent spa light, providing strong underwater visibility with significantly lower energy consumption.

This is a fixed-white LED fixture. It does not provide color-changing operation or programmed light shows.

Key Features

Fixed-white LED underwater spa light

IntelliBrite Architectural Series design

Compact spa-size fixture

120-volt operating voltage

Energy-efficient 18-watt power consumption

Factory-installed 150-foot cord

Approximately 100-watt incandescent equivalency

Wide and even underwater light distribution

Helps minimize glare, hot spots and dark areas

Long-life LED lighting technology

Compatible with supported Pentair automation systems

Certified to UL 676

Certified to CSA C22.2 No. 89

Benefits

Produces clean, bright white underwater illumination

Uses less energy than a traditional incandescent spa light

Longer cord accommodates installations farther from the junction box

Architectural optics improve light coverage and appearance

LED construction eliminates routine incandescent bulb replacement

Enhances spa visibility and nighttime appearance

Fixed-white operation provides simple on-and-off control

Suitable for new installations and compatible replacement applications

Can be integrated with supported Pentair pool automation

Specifications

Warranty & Compatibility

Warranty Information

This product is covered according to Pentair’s applicable limited-warranty terms. Warranty eligibility may depend on purchase through an authorized Pentair dealer, professional installation, proper product registration, correct voltage, compatible niche installation, and compliance with applicable electrical and building codes.

Damage caused by improper wiring, incorrect voltage, incompatible niche installation, modified or spliced cords, water intrusion caused by installation errors, unauthorized repair, or operation outside the water may not be covered.

Keep the purchase receipt and professional installation invoice for warranty purposes.

Confirm Before Ordering

• Confirm Pentair part number 602196.
• Verify that a spa-size fixture is required.
• Confirm the installation requires 120V, not 12V.
• Verify that the 150-foot cord is the correct length.
• Confirm compatibility with the existing wet niche.
• Verify that fixed-white lighting is desired.
• This model does not produce color-changing light shows.
• Confirm junction-box location and conduit condition.
• Do not cut or splice the factory-installed cord.
• Determine whether a new niche, mounting screw, gasket, transformer, or junction box is required.
• Have the light installed by a qualified professional.

Installation Information

This underwater light must be installed by a qualified pool professional and licensed electrician in accordance with Pentair instructions and all applicable electrical codes.

Before installation, confirm the existing niche is compatible with the IntelliBrite Architectural Series spa-size fixture. The installer must also verify the supply voltage, GFCI protection, bonding, grounding, conduit condition, junction-box placement, and required cord length.

The 150-foot cord is permanently attached to the fixture. Underwater pool-light cords must not be spliced, repaired, or modified. The complete cord must be routed through the conduit to an approved junction box.

Do not operate the fixture for an extended period outside the water. Pool and spa water helps cool the light during operation.

Customer-Facing Q&A

Q: Is model 602196 a color-changing light?
A: No. It produces fixed-white LED illumination.

Q: What voltage does it require?
A: This model operates on 120 volts.

Q: How long is the attached cord?
A: It includes a factory-installed 150-foot cord.

Q: How much electricity does it use?
A: Pentair rates the fixture at 18 watts.

Q: What is its incandescent equivalent?
A: Pentair lists it as comparable to a traditional 100-watt incandescent spa light.

Q: Does this light fit every spa niche?
A: No. The niche model and dimensions must be checked before ordering.

Q: Can it connect to Pentair automation?
A: Yes. It can be controlled through supported Pentair automation equipment.

Q: Can the cord be shortened or spliced?
A: The cord must not be spliced underwater. Installation must follow Pentair instructions and applicable electrical codes.
