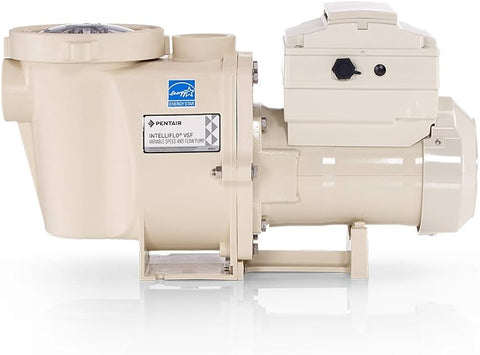

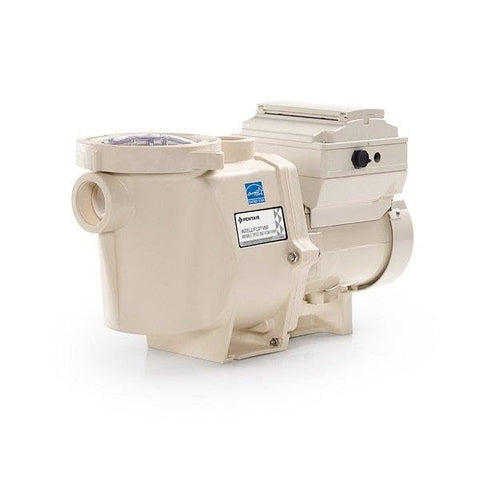

Product Overview
The Pentair IntelliFlo VSF Variable Speed and Flow Pump delivers precise, energy-efficient circulation for residential pools and spas. Unlike standard variable-speed pumps, the IntelliFlo VSF can operate by either speed or flow, automatically adjusting its motor speed to maintain the programmed flow rate as system conditions change.
Eight programmable speed or flow settings, a built-in timer, and a rotatable digital keypad make it easy to create customized operating schedules for filtration, heating, cleaning systems, spa operation, waterfalls, and other water features. Its totally enclosed fan-cooled motor supports dependable, quiet operation while helping reduce energy consumption compared with traditional single-speed pumps.
Manufacturer part number 011056 has been discontinued by Pentair. It remains suitable for direct replacement applications when matching an existing IntelliFlo VSF installation, subject to product availability.
Key Features
Variable Speed and Flow Control: Program operation from 450 to 3,450 RPM or from 20 to 140 GPM. In flow mode, the pump automatically adjusts its speed to maintain the selected flow rate.
Eight Programmable Settings: Configure up to eight speed or flow programs for filtration cycles, heaters, cleaners, spas, and water features.
Energy-Efficient Performance: The permanent-magnet motor and variable-speed drive allow the pump to operate only as fast as the pool system requires.
Pentair Automation Compatibility: Compatible with Pentair automation systems through an RS-485 communication connection.

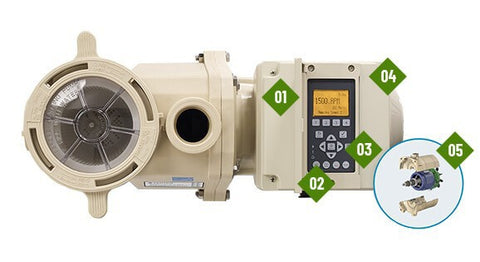

User-Friendly Digital Controls: Features an easy-to-read, rotatable keypad with built-in scheduling and an optional wall-mount kit sold separately.
Durable TEFC Motor: The totally enclosed fan-cooled motor helps protect internal components and promotes long operating life.
Benefits
Maintains more consistent circulation as filter and plumbing resistance changes
Helps optimize filter, heater, sanitizer, and water-feature performance
Reduces unnecessary motor speed and electrical consumption
Supports quieter operation at lower programmed speeds
Allows customized daily filtration and equipment schedules
Suitable for swimming pool and spa circulation systems
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Product Line | IntelliFlo VSF |
| Manufacturer Part Number | 011056 |
| Pump Type | Variable Speed and Variable Flow |
| Total Horsepower | 3.95 THP |
| Hydraulic Horsepower | 1.88 HHP |
| Voltage | 230 VAC |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Full-Load Amperage | 16A |
| Maximum Power Input | 3.2 kW / 3,200W |
| Speed Range | 450–3,450 RPM |
| Programmable Flow Range | 20–140 GPM |
| Programmable Settings | 8 |
| Port Size | 2-inch x 2-inch NPT |
| Weighted Energy Factor | 6.9 |
| Service Factor | 1.0 |
| Certifications | UL, NSF/ANSI 50 and APSP |
| Approximate Weight | 55 lb |
| Approximate Length | 23.4 inches |
| Communication | Pentair RS-485 automation connection |
| Recommended Circuit Protection | Two-pole 20A device |
| SKU | 011056 |
| UPC / Barcode | 788379861506 |
| Height x Width | 13.1 x 10.8 in. |
| Dimensions (Shipping) | 28 x 16 x 13 in. |
Warranty & Compatibility
Installation Information
This pump requires a dedicated 230V electrical supply and must be installed in accordance with applicable electrical, plumbing, and pool-safety codes. Installation and programming should be completed by a qualified pool professional or licensed electrician. Unions are not included with the pump unless specifically stated in the offer.
Confirm Before Ordering
Confirm manufacturer part number 011056, voltage, plumbing connections, automation compatibility, installation space, and intended application before purchasing. This is the original IntelliFlo VSF pump and should not be confused with the newer IntelliFlo3 VSF series.
Warranty Information
Pentair currently lists the IntelliFlo VSF pump with up to a three-year standard warranty when eligibility and professional-installation requirements are satisfied. Products purchased online generally receive a one-year parts-only warranty. Final coverage depends on the seller, installation method, purchase channel, product registration, and Pentair’s current warranty terms.
Customer-Facing Q&A
Q: Does this pump operate by both RPM and GPM?
A: Yes. Programs can be configured using either motor speed in RPM or water flow in GPM.
Q: Can it connect to Pentair automation?
A: Yes. The pump supports Pentair automation communication through its RS-485 connection.
Q: Is this the current IntelliFlo3 model?
A: No. Part number 011056 is the original IntelliFlo VSF and has been discontinued. It does not include the app connectivity found on newer IntelliFlo3 models.
Q: Are plumbing unions included?
A: No. Pentair identifies the union kit as a separately available accessory.
