Product Overview

Get powerful, dependable automatic pool cleaning with the Pentair Racer® Pressure-Side In-Ground Pool Cleaner | 360228. Engineered for residential in-ground swimming pools, the Racer combines high-powered debris removal, an oversized vacuum intake, an integrated rotating scrub brush, and four-venturi vacuum technology to provide thorough floor and wall cleaning.

The Racer operates from a dedicated pressure-side cleaner line and requires a booster pump, allowing it to clean independently without sending collected debris through the pool's main filtration system. Leaves, dirt, sand, and other debris are captured directly in the cleaner's debris bag, helping reduce additional loading on the pool filter.

Pentair designed the Racer with approximately 40% more vacuum intake area and nearly one-third more cleaning power than traditional pressure-side cleaners. Its large vacuum tube handles both fine debris and larger material, while the front rotating brush actively scrubs the pool surface as the cleaner travels.

Exclusive NightCruize® LED lights illuminate the cleaner during evening operation, while forward and reverse cleaning cycles help improve coverage throughout the pool.

Key Features

• Genuine Pentair Racer pressure-side pool cleaner
• Manufacturer Part Number: 360228
• Designed for residential in-ground swimming pools
• Powerful four-venturi vacuum system
• Approximately 40% larger vacuum intake
• Nearly 1/3 more cleaning power
• Front rotating scrub brush
• Cleans while traveling forward and reverse
• Wide tires provide stable traction
• Large vacuum tube handles leaves and debris
• NightCruize® LED lights for nighttime visibility
• Adjustable flow gauge for proper cleaner setup
• Separate debris bag captures collected material
• Compatible with multiple in-ground pool surfaces
• Easy-access design simplifies routine maintenance
• Includes approximately 30 feet of feed hose
• Requires a dedicated pressure line
• Booster pump required and sold separately

Product Specifications

Powerful Pressure-Side Cleaning

The Racer uses pressurized water from a dedicated booster pump to create strong vacuum performance. Four venturis generate suction through the oversized vacuum tube, pulling debris from the pool surface and directing it into the cleaner's debris bag.

Because debris is collected directly by the Racer instead of traveling through the pool's filter, the cleaner can help reduce unnecessary filter loading during routine pool maintenance.

Active Rotating Brush

Unlike pressure-side cleaners that rely primarily on vacuum power, the Racer incorporates a front rotating brush that scrubs the pool surface while the unit travels.

This combination of scrubbing and vacuuming helps loosen dirt and debris for a more detailed cleaning.

Forward & Reverse Cleaning

The Pentair Racer automatically changes direction during operation. The cleaner periodically enters reverse mode before returning to forward operation, helping it move away from obstacles and improve overall pool coverage.

For proper performance, Pentair recommends adjusting cleaner speed according to the installation instructions and included flow gauge.

NightCruize® LED Lights

Integrated NightCruize LED lights provide an additional visual feature during evening cleaning. The lights are self-powered by the cleaner's operation and require no separate electrical connection.

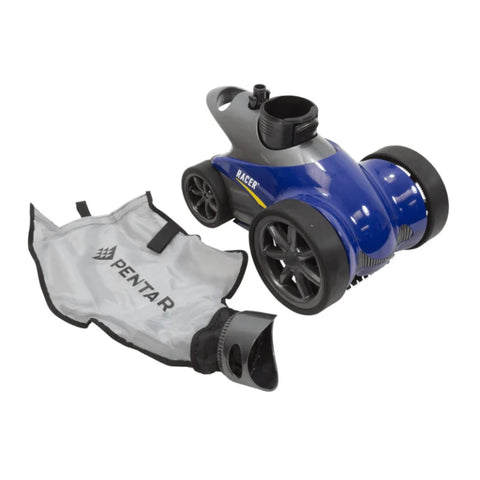

What's Included

• Pentair Racer 360228 Cleaner
• Debris Bag
• Feed Hose Assembly
• Wall Fitting
• Wall Adapter
• Debris Seal
• Flow Gauge
• Factory-installed cleaner components

Booster pump is not included.

Frequently Asked Questions

Does Pentair Racer 360228 require a booster pump?

Yes. The Racer is a pressure-side cleaner and requires a compatible booster pump and dedicated pressure cleaner line.

Is the booster pump included?

No. The booster pump is sold separately.

Does it include the feed hose?

Yes. The cleaner is supplied with the pressure-side feed hose assembly.

Does the Racer have a scrub brush?

Yes. A rotating front brush actively scrubs the pool surface while the cleaner operates.

Where does the debris go?

Debris is collected in the cleaner's removable debris bag instead of being sent through the pool's main filtration system.

Is this for above-ground pools?

No. The Pentair Racer 360228 is designed for in-ground swimming pools.

Does it have lights?

Yes. The Racer features Pentair's NightCruize LED lighting for enhanced visibility during nighttime operation.
