Product Overview

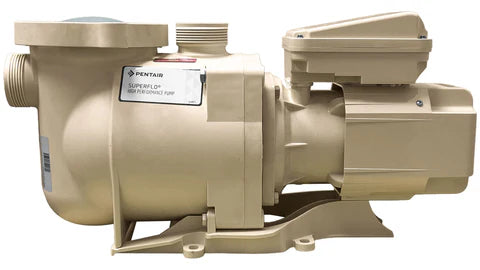

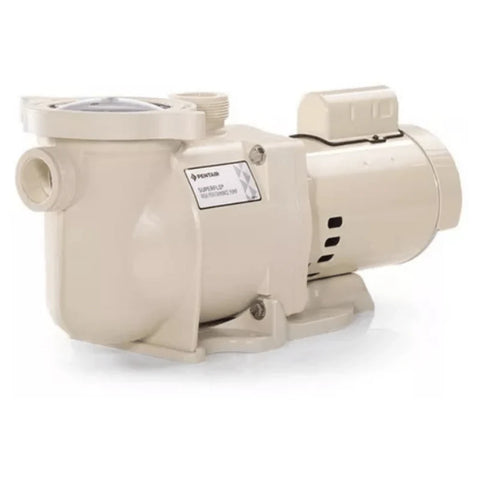

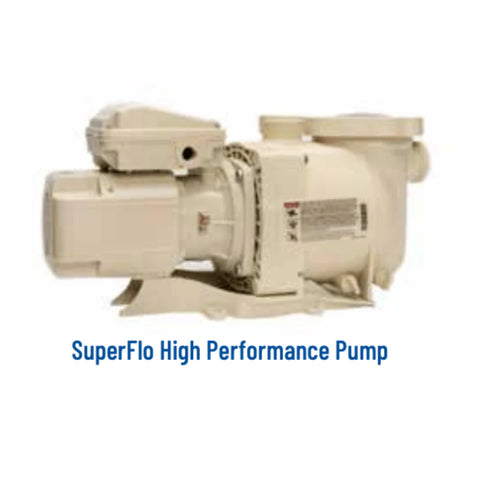

The Pentair SuperFlo® High Performance Pump EC-348190 is a dependable single-speed circulation pump designed for residential in-ground swimming pools and pool-and-spa systems. Powered by a 1.1 total horsepower NEMA Premium® Efficient motor, this pump delivers strong hydraulic performance while meeting current U.S. Department of Energy minimum-efficiency requirements.

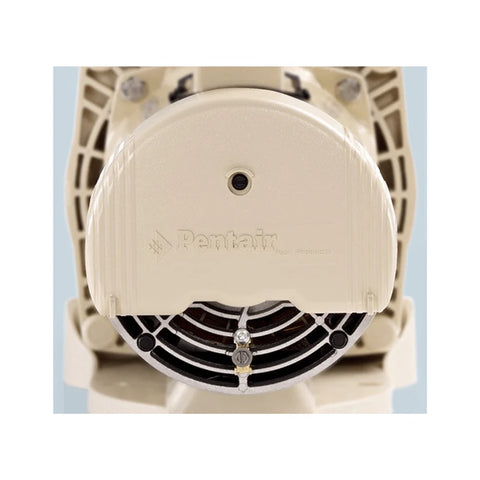

Its proprietary Totally Enclosed Fan-Cooled motor helps protect internal motor components from moisture, debris and outdoor conditions. The pump’s balanced hydraulic design provides efficient water movement with reduced operating noise and dependable long-term performance.

The SuperFlo housing includes 1.5-inch internal slip and 2-inch external slip plumbing connections, allowing it to fit a wide range of new installations and replacement applications. Quick-disconnect unions simplify plumbing service, while the Cam and Ramp™ lid provides convenient access to the large strainer basket.

Pentair identifies part number 348190 as a 1.1 THP, single-speed SuperFlo pump operating on 115V or 208–230V power, with a 0.63 hydraulic horsepower rating and a WEF rating of 3.6.

Key Features

• 1.1 total horsepower
• Single-speed operation
• NEMA Premium® Efficient motor
• Totally Enclosed Fan-Cooled motor construction
• Dual-voltage 115V or 208–230V operation
• 60 Hz single-phase electrical supply
• 0.63 hydraulic horsepower
• WEF rating of 3.6
• Meets applicable DOE minimum-efficiency requirements
• Balanced hydraulic design
• Thick-walled pump housing for quieter operation
• Large-capacity strainer basket
• Clear lid for easy basket inspection
• Cam and Ramp™ quarter-turn lid
• Quick-disconnect plumbing unions
• 1.5-inch internal slip connections
• 2-inch external slip connections
• Designed as a replacement option for many Hayward® Super Pump® installations
• Suitable for permanent residential pools and qualifying spas

Pentair states that the updated SuperFlo design uses a TEFC motor, balanced flow and improved construction to increase efficiency and withstand demanding installation conditions.

Specifications

Energy-Efficient Single-Speed Design

The EC-348190 combines the simplicity of a traditional single-speed pump with a modern NEMA Premium Efficient motor. Pentair lists the pump with a WEF rating of 3.6, helping it satisfy applicable federal efficiency standards while maintaining the straightforward operation many pool systems require.

Unlike a variable-speed pump, this model operates at one fixed motor speed. Pump runtime is normally controlled by:

• Mechanical pool timer
• Digital timer
• Automation relay
• Approved external control system
• Properly rated electrical disconnect

Ideal For

• Residential in-ground swimming pools
• Pool-and-spa combinations
• New pool construction
• Replacement of older SuperFlo pumps
• Replacement of select Hayward Super Pump installations
• Standard filtration systems
• Pool systems using mechanical or digital timers
• Applications requiring a DOE-compliant single-speed pump
• Installations with 1.5-inch or 2-inch plumbing

Benefits

• NEMA Premium motor provides improved single-speed efficiency
• TEFC construction helps protect the motor from outdoor contaminants
• Dual-voltage capability supports a variety of equipment-pad configurations
• Quick-disconnect unions simplify removal and servicing
• Clear lid allows debris inspection without opening the pump
• Large basket helps extend intervals between cleaning
• Quarter-turn lid provides convenient basket access
• Self-priming design supports standard in-ground installations
• Balanced hydraulics help reduce operating noise
• Common plumbing dimensions simplify replacement projects
• DOE-compliant design replaces older noncompliant single-speed models

What’s Included

• Pentair SuperFlo 1.1 THP pump assembly
• NEMA Premium Efficient TEFC motor
• Pump housing and wet end
• Strainer basket
• Clear Cam and Ramp lid
• Lid O-ring
• Quick-disconnect union fittings
• Drain plugs
• Motor base
• Installation and operating documentation

Electrical wiring, circuit breaker, timer, automation relay, plumbing pipe, valves and installation materials are not included unless specifically stated by the seller.

Plumbing Connections

The SuperFlo pump uses combination connections designed to accommodate:

• 1.5-inch internal slip plumbing
• 2-inch external slip plumbing

Pentair includes quick-disconnect plumbing unions to help reduce service time when the pump must be removed from the equipment pad.

The suction plumbing should be the same size as or larger than the return plumbing. Pentair recommends keeping the suction line as short and direct as practical to reduce hydraulic resistance.

Replacement Compatibility

The SuperFlo is designed for common residential pool-pump installations and may serve as a replacement for:

• Existing Pentair SuperFlo pumps
• Select Sta-Rite SuperMax configurations
• Many Hayward Super Pump installations
• Other pumps with compatible plumbing heights and performance requirements

Pentair describes the SuperFlo as a high-performing drop-in replacement option for the Hayward Super Pump. Plumbing, voltage, pump dimensions and hydraulic requirements must still be confirmed before installation.

Strainer-Basket Maintenance

Inspect the pump basket regularly through the clear lid. Pentair recommends visually inspecting the basket at least weekly because accumulated debris can reduce circulation efficiency and place additional stress on the pump motor.

Before opening the pump:

1. Turn off power at the circuit breaker.
2. Prevent the pump from restarting automatically.
3. Close isolation valves when required.
4. Open the filter air-relief valve.
5. Confirm that all system pressure has been released.
6. Remove the lid and clean the basket.
7. Inspect and lubricate the lid O-ring with an approved pool lubricant.
8. Refill the pump housing with water before restarting.
9. Reinstall the lid securely.
10. Open all valves and properly bleed air from the system.

Never operate the pump without the basket installed.

Installation Requirements

This pump should be installed and serviced by a qualified pool professional in accordance with applicable electrical, plumbing and safety codes.

Installation requirements include:

• GFCI-protected electrical circuit
• Correct voltage selection
• Proper equipment grounding
• Proper bonding to the pool bonding grid
• Correctly sized wiring and overcurrent protection
• Secure, level equipment pad
• Adequate ventilation around the motor
• Approved suction fittings and drain covers
• Properly sized suction and return plumbing
• Sufficient access for future maintenance

Pentair requires the pump to be connected to a GFCI-protected circuit and installed according to the National Electrical Code and applicable local requirements.

Important Operating Information

• This is a single-speed pump, not a variable-speed pump.
• The pump is not submersible.
• Do not operate the pump dry.
• Fill the pump housing with water before initial startup.
• Open all suction and return valves before operating.
• Maintain the correct pool-water level.
• Never open the pump or filtration system while pressurized.
• Protect the pump from freezing conditions.
• Freeze damage is not covered under standard warranty terms.
• The pump does not include Safety Vacuum Release System protection.

Operating the pump without water can damage the mechanical shaft seal and may cause leakage.

Confirm Before Ordering

Please verify:

• The required model is Pentair SuperFlo 348190
• The correct SKU is EC-348190
• A 1.1 THP single-speed pump is appropriate for the pool
• The application does not require variable-speed operation
• Available power is 115V or 208–230V
• The electrical supply is single phase and 60 Hz
• Existing plumbing is compatible with 1.5-inch or 2-inch connections
• Pump inlet and discharge heights match the existing installation
• The filter, heater and plumbing can safely handle the pump’s flow
• The pump will be installed on a properly bonded and grounded system
• A compatible timer, relay or control system is available
• Professional installation requirements can be met

Warranty Information

The Pentair SuperFlo EC-348190 is covered by Pentair’s applicable manufacturer’s limited warranty when purchased, installed and operated according to Pentair’s current warranty terms.

Warranty eligibility may depend on the seller, product registration, installation method and installer qualifications. Damage caused by improper wiring, incorrect voltage, dry operation, freeze conditions, improper plumbing, chemical exposure or failure to follow Pentair’s installation instructions may not be covered.

Professional installation by a qualified pool or electrical professional is strongly recommended.
