Product Overview

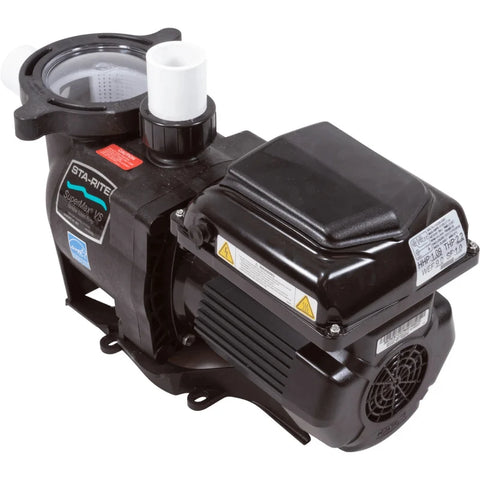

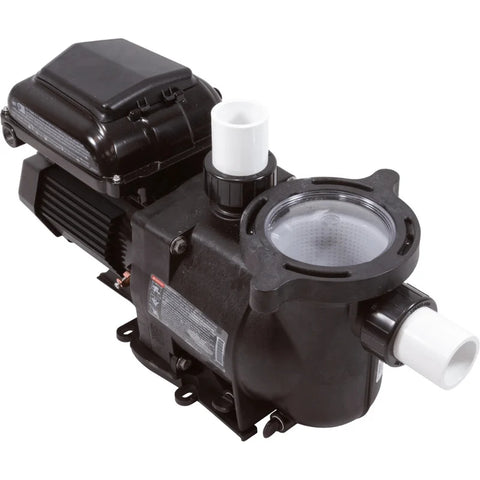

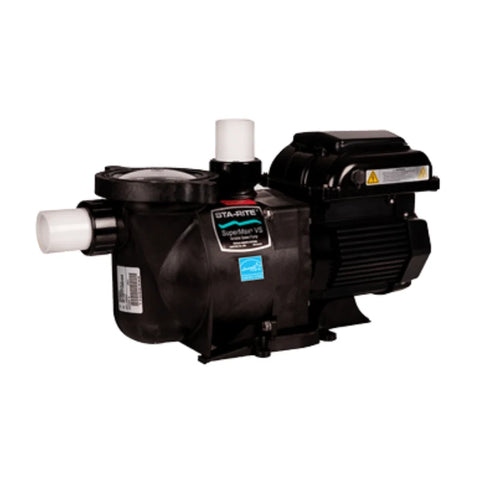

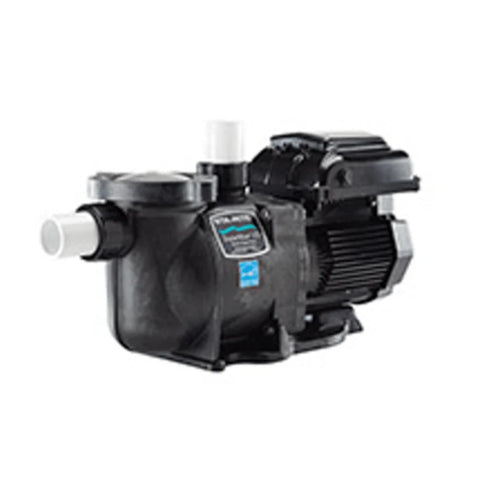

Upgrade your pool’s circulation with the Pentair Sta-Rite SuperMax VS variable speed pool pump. Designed for residential inground pools, it combines adjustable-speed operation, onboard scheduling and a digital display to simplify everyday filtration.
The SuperMax VS operates on 115V or 208–230V power, making it a flexible option for new installations and compatible pump replacements. Its variable-speed design lets your installer tailor operation to your pool’s circulation requirements rather than running at full speed throughout the day.
Important Purchase Notice
This is a Pentair TradeGrade product requiring professional installation. Manufacturer warranty coverage depends on the purchase channel and applicable terms. Confirm coverage before ordering.
Ideal For
Residential pool owners replacing a single-speed pump, contractors upgrading compatible SuperMax or Hayward Super Pump installations, and owner-builders seeking programmable filtration without a separate automation system.
Key Features
- Three programmable speed settings plus Quick Clean override for scheduled filtration and temporary higher-speed operation.
- Digital display showing RPM, power consumption, time and remaining program duration.
- Permanent-magnet, totally enclosed fan-cooled motor paired with an engineered polymer pump housing.
- Clear strainer lid for checking the basket without opening the pump.
Benefits
Lower-speed operation can reduce energy consumption when circulation requirements allow. Built-in scheduling eliminates the need for a separate timer for normal programmed operation, while the display makes it easier to monitor settings and power use. Actual savings depend on programming, plumbing and operating conditions.
Compatibility
Pentair identifies the SuperMax VS as a replacement option for SuperMax single-speed pumps and Hayward Super Pump installations. Your installer must confirm plumbing alignment, available space and hydraulic requirements; compatibility does not guarantee that every installation requires no modifications.
External control is supported through compatible digital-input or RS-485 connections, with the appropriate wiring kit and supported pump version.
Installation Guidance
Installation must be completed by a qualified professional following Pentair’s instructions. Pump sizing and programmed speeds must account for the filter, heater, sanitizer and other equipment’s flow requirements.
What’s Included
Complete SuperMax VS pump assembly with motor, variable-speed drive, onboard controls, strainer basket and lid.
Confirm Before Ordering
Verify supply voltage, plumbing connections, equipment-pad clearance and required flow. For automated systems, confirm controller compatibility and communication wiring requirements.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair / Sta-Rite |
| Product Family | SuperMax VS |
| Product Type | Variable-speed inground pool pump |
| Manufacturer Part Number / SKU | 343001 |
| UPC / Barcode | 788379866235 |
| Nominal Horsepower Class | 1.5 HP |
| Total Horsepower | 2.2 THP |
| Supply Voltage | 115/208–230V |
| Phase / Frequency | Single-phase / 50–60 Hz |
| Operating Speed Range | 450–3,450 RPM |
| Manufacturer-Listed Port Size | 1½-inch NPT |
| Motor Design | Permanent-magnet, totally enclosed fan-cooled |
| Weighted Energy Factor | 9.0 |
| Controls | Onboard keypad and programmable scheduling |
Customer Q&A
Why is this listed as 1.5 HP when Pentair specifies 2.2 THP?
The 1.5 HP designation identifies its marketed horsepower class. Pentair specifies 2.2 total horsepower. Compare replacement pumps using total horsepower and performance curves—not nominal horsepower alone.
Can this pump operate on 115V power?
Yes. However, the drive limits output when necessary on lower voltage, so maximum hydraulic performance can differ from 230V operation.
Does this pump need an automation system?
No. The onboard controls provide standalone scheduling. Integration with compatible automation requires the appropriate communication connection and wiring kit.
Can a homeowner install this pump?
Pentair requires qualified professional installation. Your installer must verify electrical protection, grounding, bonding, plumbing and safe operating flow.
