Product Overview

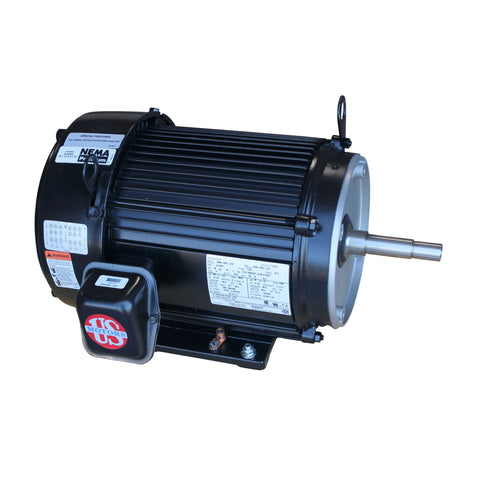

The Pentair 350731Z TEFC Motor is a genuine OEM replacement motor designed for select Pentair EQ Series commercial pool pumps. Rated at 5 HP, this three-phase motor operates on 208-230/460V, 60 Hz power and is specifically matched to compatible EQKT500 pump configurations.
Its Totally Enclosed Fan Cooled construction provides additional protection against moisture, dust, and airborne contaminants compared with an open motor design, making it well suited for demanding commercial pool equipment environments.
Key Features
Genuine Pentair OEM Replacement
Factory replacement motor engineered specifically for compatible Pentair EQ Series commercial pumps.
5 HP Commercial Performance
Designed to provide dependable continuous-duty power for high-flow commercial pool circulation systems.
Three-Phase Multi-Voltage Operation
Supports 208-230/460V three-phase, 60 Hz commercial electrical systems.
Totally Enclosed Fan Cooled Motor
TEFC construction helps protect internal motor components while an external fan provides cooling during operation.
JMZ Mounting Configuration
Designed with the appropriate JMZ mounting arrangement for compatible EQ Series pump wet ends.
Commercial-Duty Design
Engineered for continuous operation in demanding commercial swimming pool and aquatic applications.
Benefits
- Genuine Pentair replacement motor
- Restores compatible EQKT500 pump operation
- 5 HP commercial-duty performance
- 208-230/460V electrical flexibility
- Three-phase operation
- TEFC enclosure for enhanced environmental protection
- Designed for continuous-duty commercial applications
- Allows motor replacement without replacing the complete pump
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Series | EQ Series |
| Manufacturer Part Number / SKU | 350731Z |
| UPC / Barcode | 788379864705 |
| Product Type | Replacement Pool Pump Motor |
| Pump Compatibility | Pentair EQKT500 |
| Compatible Pump SKUs | 340608, 340604 |
| Horsepower | 5 HP |
| Voltage | 208-230/460V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Full Load Amps | 13.4-12.2/6.1A |
| Service Factor | 1.25 |
| Service Factor HP | 6.25 HP |
| Motor Enclosure | Totally Enclosed Fan Cooled (TEFC) |
| Motor Mounting | JMZ |
| Motor Speed | Approx. 3500 RPM |
| Duty | Continuous |
| Product Weight | 68 lb |
| Shipping Dimensions | 22 x 14 x 15 in. |
| Application | Commercial Pool |
| Warranty | 1-Year General Warranty |
Installation Information
Motor replacement requires disassembly of the EQ Series pump and proper connection to the existing pump wet end. Electrical power must be disconnected and locked out before servicing.
Because this is a three-phase motor, motor rotation must be verified after wiring. Incorrect rotation can result in reduced flow and improper pump operation.
Inspect the mechanical shaft seal, impeller, diffuser, O-rings, and associated hardware during motor replacement. Replacing worn sealing components at the same time is recommended.
Confirm Before Ordering
Verify the existing motor, pump model, horsepower, voltage, and phase before purchase.
Pentair 350731Z is specified for:
- EQKT500
- Pump SKU 340608 – without strainer
- Pump SKU 340604 – with strainer
- 5 HP
- Three phase
- 208-230/460V
- 60 Hz
- TEFC motor configuration
Do not substitute this motor for standard EQK500 pumps using an Open Drip Proof motor. ODP and TEFC EQ Series configurations use different replacement motors.
Warranty Information
The Pentair 350731Z carries a 1-year general warranty. Warranty eligibility and coverage may depend on installation, application, purchase channel, proof of purchase, and current Pentair warranty requirements.
Customer Q&A
Q: Is the Pentair 350731Z a TEFC motor?
Yes. It features a Totally Enclosed Fan Cooled motor enclosure.
Q: What pump does this motor fit?
It is designed for compatible Pentair EQKT500 commercial pumps, including pump SKUs 340608 and 340604.
Q: Is this motor single phase?
No. The 350731Z is a three-phase motor.
Q: Does this include the complete pump?
No. This listing is for the replacement motor only. The pump wet end, impeller, diffuser, strainer, and other hydraulic components are not included unless specifically stated.
