Product Overview

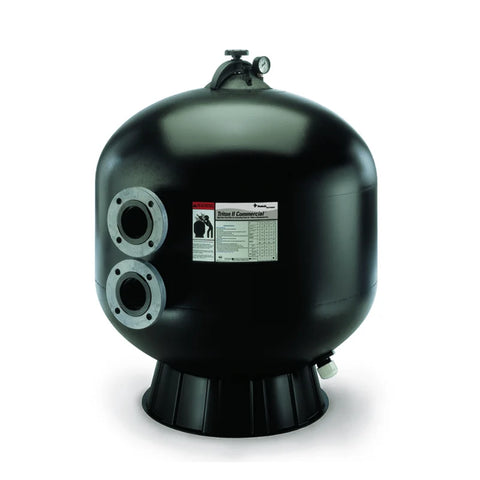

The Pentair Triton C-3 Commercial Sand Filter delivers high-capacity filtration for commercial swimming pools and properly engineered large residential installations. Its fiberglass-reinforced tank houses a multi-diffuser system that distributes water across the sand bed for consistent debris capture. With substantial filtration area and large flanged connections, it supports demanding circulation requirements using sand rather than cartridge elements. Pool Supply Depot offers this black, side-mount filter for contractors, facility operators, and owner-builders planning professionally sized filtration systems.
Ideal For
Commercial pool filtration projects, large residential equipment upgrades, and professionally engineered tandem installations requiring multiple filters. Suitable applications include hotel, community, and recreation pools when system sizing supports the facility’s requirements.
Key Features
- Multi-diffuser design promotes even water distribution across the sand bed.
- One-piece fiberglass-reinforced tank provides strength and resistance to demanding pool-equipment environments.
- Standard 3-inch flanged connections accommodate higher-flow commercial plumbing.
- An 8-inch tank opening and 2-inch drain provide access for media servicing and drainage.
Benefits
- Consistent sand-bed loading supports longer filtration cycles between cleanings.
- Backwashing removes collected debris without routine cartridge removal.
- Tandem installation capability supports professionally designed multi-filter systems.
Compatibility
Confirm pump output, flange configuration, backwash requirements, and available installation space. This is not a universal replacement for filters with 2-inch threaded connections. Actual operating flow must match the complete circulation system’s design.
Installation or Upgrade Context
Pentair requires installation by a qualified professional. Provide a suitable permanent mounting surface and maintenance clearance. Never open or adjust the filter closure while the system is pressurized.
What’s Included
Filter assembly without a control/backwash valve. Confirm the required valve or manifold arrangement, filtration media, pump, and installation plumbing with your installer before ordering.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Series | Triton C-3 |
| Model | TR140C-3 |
| SKU / Part Number | 140342 |
| UPC / Barcode | 788379666255 |
| Product Type | Commercial side-mount sand filter |
| Nominal Tank Size / Color | 36 inches / Black |
| Filtration Area | 7.06 sq. ft. |
| Maximum Rated Flow | 141 GPM at 20 GPM/sq. ft. |
| Flow at 15 GPM/sq. ft. | 106 GPM |
| Connections | 3-inch flanged |
| Maximum Operating Pressure | 50 PSI |
| Published Diameter × Height | 36.5 × 45.25 inches |
| All-Sand Media Load | Approximately 925 lb |
| Alternate Media Load | Approximately 650 lb sand + 275 lb gravel |
| Control Valve | Not included |
Customer Q&A
Is the backwash valve included?
No. The correct valve or manifold must be selected separately for the filter’s 3-inch flanged connections and your circulation system.
Why are both 106 GPM and 141 GPM listed?
They represent different filtration rates. Your project’s design determines the appropriate operating flow; the maximum rating is not automatically the recommended flow.
What type of sand does it use?
Pentair specifies No. 20 standard silica filter sand. Your installer must also maintain the specified media depth and freeboard, rather than relying on weight alone.
When should it be backwashed?
Follow Pentair’s guidance: a 30% flow reduction from the clean baseline, or a 10 PSI pressure increase when no flow meter is installed. Avoid backwashing solely on a calendar schedule.
