Product Overview

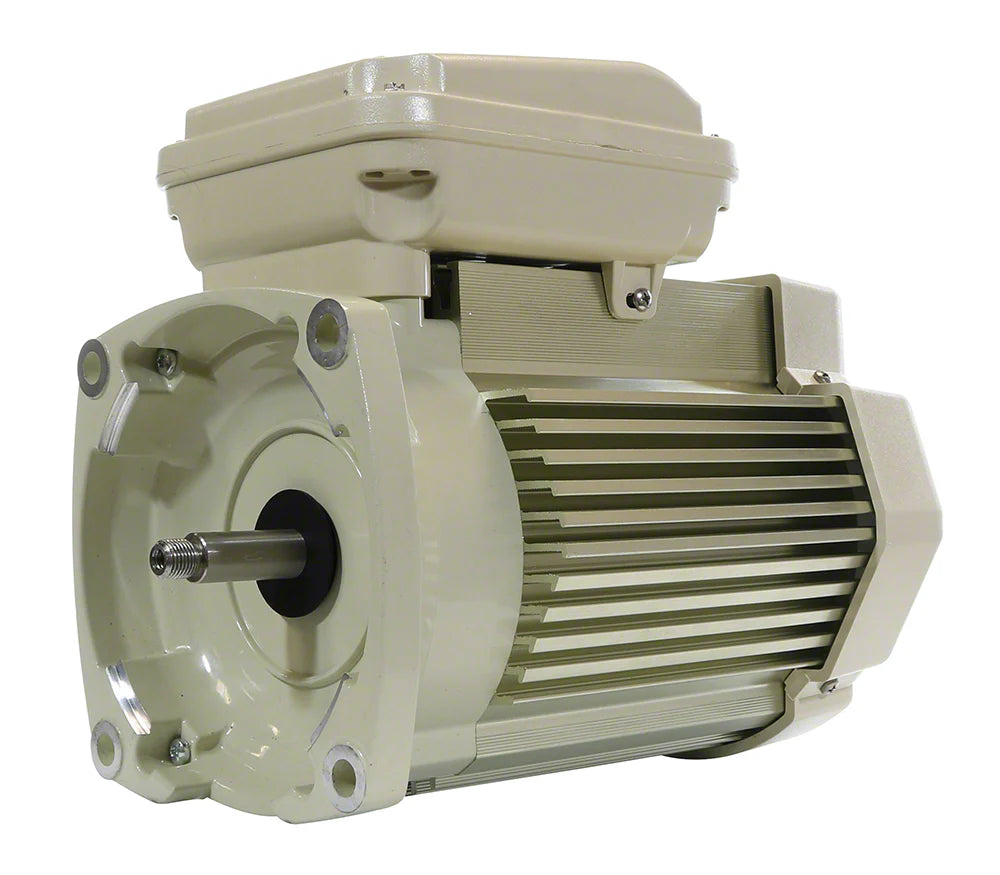

The Pentair 354813S WhisperFloXF® Replacement Pump Motor is a genuine OEM 5 HP, three-phase TEFC motor designed for compatible Pentair WhisperFloXF high-performance pool pumps.
Built for demanding commercial and professional pool applications, this motor operates on 208-230/460V three-phase power and uses a heavy-duty 56 square-flange configuration. The Totally Enclosed Fan Cooled (TEFC) design provides dependable cooling while helping protect the motor's internal components from the surrounding environment.
Part 354813S is the specified replacement motor for the WhisperFloXF XFK-20 5 HP three-phase pump. This listing is for the replacement motor only and does not include the complete pump or wet-end assembly.
Key Features
5 HP Three-Phase Motor
Heavy-duty 5 horsepower motor designed for compatible commercial WhisperFloXF pump applications.
208-230/460V Operation
Supports multiple three-phase voltage configurations for compatible commercial electrical systems.
TEFC Construction
Totally Enclosed Fan Cooled construction helps protect internal motor components while providing effective external cooling.
56 Square-Flange Design
Designed with the heavy-duty square-flange motor configuration used on compatible WhisperFloXF pumps.
Genuine Pentair Replacement
OEM Pentair component provides the proper fit and specifications for supported WhisperFloXF equipment.
Benefits
- Genuine Pentair OEM replacement motor
- 5 HP commercial-duty performance
- Three-phase electrical operation
- 208-230/460V compatibility
- TEFC motor construction
- Restores compatible WhisperFloXF pump operation
- Direct replacement for the XFK-20 motor
- Helps extend the service life of the existing pump assembly
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Product Line | WhisperFloXF® |
| Product Type | Replacement Pump Motor |
| SKU / Part Number | 354813S |
| Compatible Pump Model | WhisperFloXF XFK-20 |
| Horsepower | 5 HP |
| Phase | Three Phase |
| Voltage | 208-230/460V |
| Motor Enclosure | TEFC |
| Motor Frame | Heavy-Duty 56 Square Flange |
| Motor Color | Almond |
| Application | Commercial Pool Pump |
| Product Weight | Approximately 44 lbs. |
| Shipping Dimensions | 22.5" x 9" x 11.5" |
| UPC / Barcode | 788379858841 |
| Manufacturer | Pentair |
Installation Information
Installation requires proper three-phase electrical service and correct motor wiring for the available supply voltage. Wiring configuration must match the motor nameplate and applicable electrical codes.
Electrical installation and pump servicing should be performed by a qualified pool professional or licensed electrician. Always disconnect and lock out electrical power before servicing the pump.
Inspect the mechanical seal, impeller, seal plate, O-rings, and related pump components when replacing the motor. Worn sealing components should be replaced as necessary to help prevent water leakage into the new motor.
Confirm Before Ordering
- Confirm the required part number is 354813S.
- Verify the existing pump is a compatible WhisperFloXF XFK-20.
- Confirm the pump requires a 5 HP three-phase motor.
- Verify the available electrical service is compatible with 208-230/460V three-phase operation.
- This product is the replacement motor only, not a complete WhisperFloXF pump.
Warranty Information
POOL360 currently lists this replacement motor with a 1-year general warranty. Warranty coverage remains subject to Pentair's current terms, proper installation, intended use, and proof of purchase.
Customer Q&A
What pump does 354813S fit?
It is the specified 5 HP three-phase replacement motor for the Pentair WhisperFloXF XFK-20 pump.
What voltage does this motor require?
The motor is rated for 208-230/460V three-phase electrical service.
Is this a TEFC motor?
Yes. Part 354813S is a Totally Enclosed Fan Cooled (TEFC) motor.
Does this include the complete pool pump?
No. This listing is for the replacement motor only.
