Product Overview

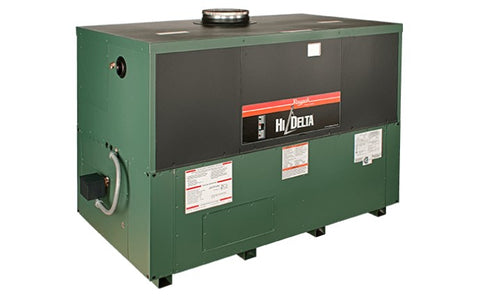

The Raypak Hi Delta P-992C 016065 is a commercial natural gas pool and spa heater designed for demanding aquatic facilities requiring high-capacity, reliable heating. With a 990,000 BTU/hr input and approximately 842,000 BTU/hr rated output, the P-992C combines fan-assisted combustion, a cupronickel heat exchanger, ASME construction, and Raypak’s VERSA IC digital control system.

Designed for indoor or outdoor installation, the Hi Delta platform provides flexible venting, advanced diagnostics, low-NOx combustion, and cascade capability for multi-heater commercial systems.

Key Features

990,000 BTU Natural Gas Input

High-capacity commercial heating performance for pools, spas, hotels, fitness centers, schools, aquatic facilities, and other high-demand applications.

Cupronickel Heat Exchanger

Features a durable cupronickel fin-tube heat exchanger with bronze headers for demanding commercial pool and spa environments.

VERSA IC Digital Controls

Raypak’s integrated VERSA IC controller provides an LCD display, operating status, fault diagnostics, programmable pump controls, and system management capabilities.

Low-NOx Fan-Assisted Combustion

Fan-assisted burner technology provides controlled combustion and low-NOx operation while maintaining reliable heater performance.

Flexible Commercial Installation

Designed for indoor or outdoor use with top or optional rear venting configurations and support for Category I vertical or Category III horizontal venting.

Benefits

• 990,000 BTU/hr natural gas input
• Approximately 842,000 BTU/hr rated output
• Commercial ASME construction
• Cupronickel fin-tube heat exchanger
• Bronze headers
• Hot surface ignition
• Fan-assisted combustion
• Low-NOx operation
• VERSA IC digital controller
• Full safety diagnostics with fault history
• Cascade control for up to 8 heaters
• Indoor and outdoor installation capability

Specifications

Installation Information

The Raypak Hi Delta P-992C is commercial gas-fired equipment and should be installed and commissioned by qualified professionals in accordance with Raypak requirements and applicable gas, electrical, plumbing, venting, and building codes.

Standard configurations require proper inlet-water temperature management to prevent condensation in the heat exchanger. Applications involving sustained cold return water may require a dedicated Raypak Cold Water Run configuration.

Confirm Before Ordering

Confirm Raypak part number 016065, P-992C model, natural gas fuel type, 990,000 BTU input, elevation, electrical requirements, water flow, and required venting configuration before ordering.

Part 016065 is the standard natural gas P-992C configuration. It should not be confused with Raypak 016088, which is the P-992C natural gas Cold Water Run configuration.

Warranty Information

Raypak documentation specifies a limited 1-year parts warranty and 5-year heat exchanger warranty for the Hi Delta commercial pool heater platform. Warranty coverage is subject to Raypak’s current terms, proper installation, application, operation, maintenance, and water chemistry requirements.

Customer Q&A

Q: How many BTUs is the Raypak 016065?

The P-992C has a 990,000 BTU/hr natural gas input with approximately 842,000 BTU/hr rated output.

Q: Is this a natural gas heater?

Yes. Raypak part 016065 is the natural gas P-992C configuration.

Q: What type of heat exchanger does it use?

The P-992C uses a cupronickel fin-tube heat exchanger with bronze headers.

Q: Can it be installed outdoors?

Yes. The Hi Delta P-992C is designed for both indoor and outdoor installations when properly configured.

Q: What is the maximum water flow?

Raypak specifies a maximum flow rate of 132 GPM for the P-992C.

Q: Is this the Cold Water Run model?

No. Part 016065 is the standard P-992C natural gas model. The corresponding P-992C natural gas Cold Water Run configuration is Raypak 016088.
