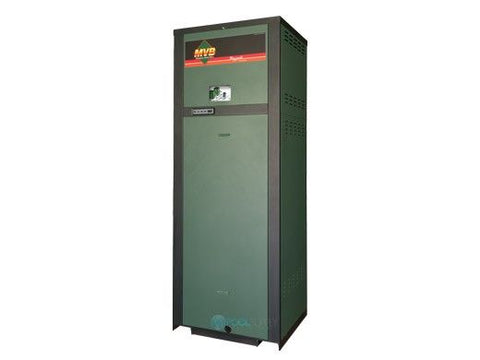

The Raypak MVB® P-754A (PN 014372) supplies 750,000 BTU input for commercial pool, spa, and aquatic facilities. Engineered with a vertical configuration, this heater minimizes equipment-room footprint while delivering approximately 623,000 BTU output. Designed for high-demand environments such as hotels, schools, and municipal centers, the unit addresses space constraints without sacrificing capacity.

Materials and Construction

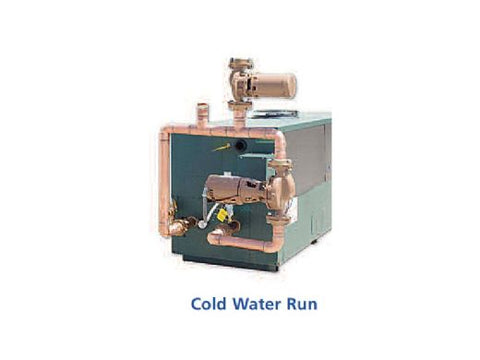

Built to ASME commercial standards, the P-754A features a cupro-nickel fin-tube heat exchanger and bronze headers for superior resistance against corrosion and scaling. With an 83% thermal efficiency rating, the system optimizes fuel consumption during operation. Low NOx combustion technology satisfies emission regulations, while the standard external H-Bypass manages water flow effectively through the unit.

Technical Specifications

• Fuel Type: Natural Gas Configuration Only
• Water Flow: Maximum 100 Gallons Per Minute (GPM)
• Venting: 10-inch Flue, Category I & III
• Mounting: Indoor or Outdoor Installation
• Power Requirement: 120VAC Single Phase

Professional commercial installation is mandatory to verify clearances, combustion air, and plumbing connectivity. Indoor sites require an approved venting system matching local building codes, while outdoor units accommodate direct exposure. Select PN 014372 specifically for natural gas supply, as liquid propane versions utilize different manufacturing specifications. The package is covered under warranty provisions including 1-year parts and labor protection and extended 5-year heat exchanger coverage, subject to professional installation records and water chemistry compliance.
