Product Overview

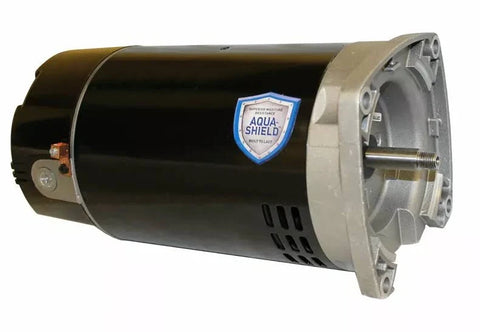

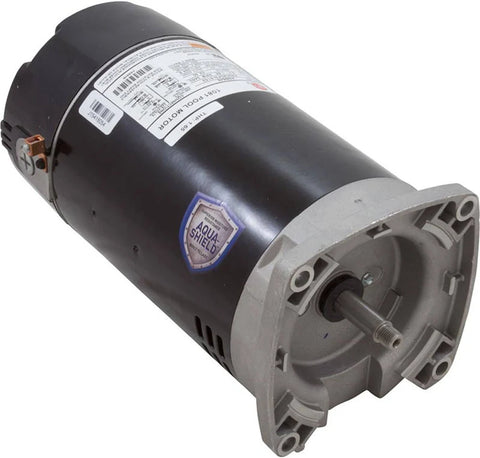

The U.S. Motors ASB848 AQUA-SHIELD Pool and Spa Pump Motor is a single-speed replacement motor designed for compatible pumps requiring a 1 HP full-rated motor, 56Y square-flange frame, and threaded shaft.

This motor operates at 3450 RPM and can be configured for either 115V or 230V, single-phase power. Its 1.65 service factor provides a total horsepower rating of 1.65 THP, allowing it to replace compatible full-rated and up-rated motors when all electrical and mechanical specifications match.

The ASB848 features a switchless AQUA-SHIELD design, threaded stainless-steel shaft, sealed ball bearings, automatic-reset thermal protection, continuous-duty construction, and an open drip-proof enclosure. A new mechanical shaft seal should always be installed when replacing the motor.

Key Features

Genuine U.S. Motors AQUA-SHIELD replacement motor

Manufacturer part number ASB848

1 HP full-rated motor

1.65 service factor

1.65 total horsepower

Single-speed operation

3450 RPM

Dual-voltage 115/230V operation

Single-phase, 60 Hz

56Y frame

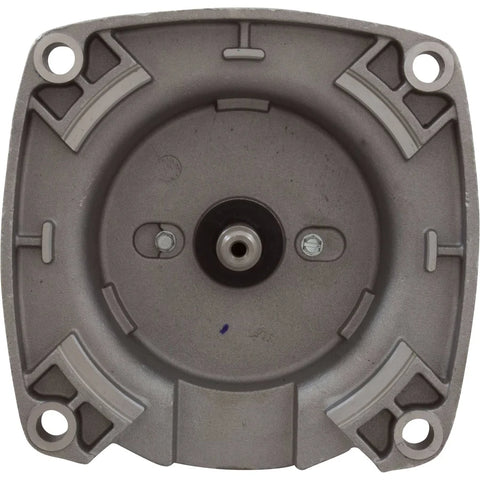

Square-flange mounting

Threaded stainless-steel shaft

Automatic-reset thermal protection

Sealed ball bearings

Open drip-proof enclosure

Continuous-duty rated

Benefits

Restores compatible pump performance without replacing the complete pump

Dual-voltage design supports 115V or 230V installations

Square-flange frame fits many modern pool and spa pumps

Stainless-steel shaft helps resist corrosion

Sealed bearings provide dependable operation

Automatic thermal protection helps protect against overheating

1.65 THP rating supports compatible full-rated and up-rated applications

Switchless design simplifies voltage configuration

Specifications

The ASB848 specifications include a 56Y frame, 1.65 THP rating, 115/230V operation, threaded shaft, and clockwise lead-end rotation.

What Is Included

• U.S. Motors ASB848 pump motor
• Threaded stainless-steel shaft
• Factory-installed capacitor
• Automatic thermal protection

Not Included

Pump housing, impeller, diffuser, seal plate, mechanical shaft seal, O-rings, wiring, or installation labor.

Warranty & Compatibility

Compatible Applications

The ASB848 is intended for pool and spa pumps requiring:

• 1 HP full-rated or 1.65 THP motor
• 56Y square-flange frame
• Threaded shaft
• 115V or 230V single-phase power
• 3450 RPM single-speed operation

Compatibility cannot be confirmed by horsepower alone. Compare the original motor’s frame, voltage, service factor, total horsepower, shaft, flange, amperage, and rotation before ordering.

Installation Information

Professional installation is recommended. Configure the motor for the correct voltage, verify proper grounding and bonding, and install a new mechanical shaft seal selected for the exact pump model. Prime the pump before startup and never operate it without water.

Confirm Before Ordering

• Confirm model ASB848
• Verify 1 HP and 1.65 THP
• Confirm 56Y square-flange mounting
• Verify threaded shaft configuration
• Confirm 115/230V single-phase power

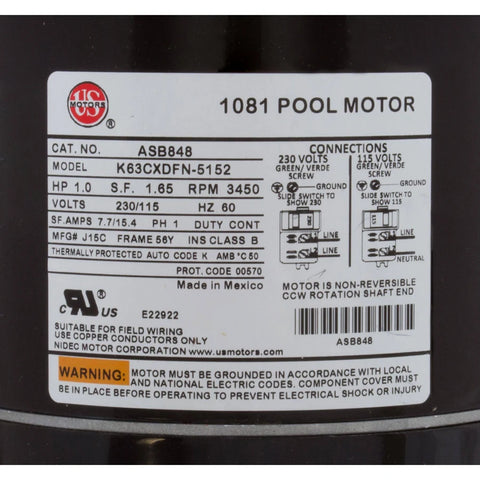

• Compare all specifications with the original motor nameplate

Warranty Information

The ASB848 is covered by the manufacturer’s applicable limited warranty. Coverage may require correct motor selection, proper installation, correct voltage, and replacement of the mechanical shaft seal. Damage caused by incorrect wiring, water intrusion, dry operation, or improper installation may not be covered.

Customer-Facing Q&A

Q: Is this a single-speed motor?
A: Yes. It operates at approximately 3450 RPM.

Q: Does it include a shaft seal?
A: No. The seal must be selected according to the pump model.

Q: Can it replace any 1 HP motor?
A: No. Frame, total horsepower, flange, shaft, voltage, and rotation must match.

Q: Can it operate on 115V and 230V?
A: Yes. It can be configured for either voltage.
