Product Overview

2” 45 degree fitting

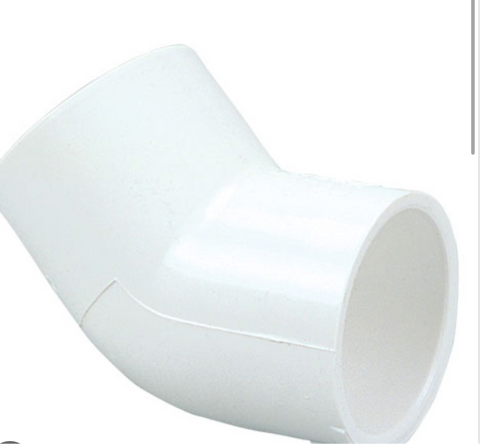

The 2" Schedule 40 PVC 45° Elbow (part number 417-020) is a white socket x socket (slip x slip) fitting used to make a 45-degree change of direction in 2" PVC plumbing. It is a standard solvent-weld fitting for pool and spa equipment pads, plumbing runs, and irrigation.

Ideal For

Gradual direction changes in 2" PVC plumbing

Pool and spa equipment pad layouts

Reducing flow restriction compared to a 90° elbow

Irrigation and general PVC plumbing

Key Features

45° angle

2" nominal pipe size on both ends

Socket x socket (slip x slip) solvent-weld connections

Schedule 40 PVC, white

Listed to ASTM D2466, NSF 14 and NSF 61

Specifications

Warranty & Compatibility

Compatibility Notes

Fits standard 2" nominal PVC pipe. Both ends are sockets; for a fitting-to-fitting connection with no pipe between, a street 45 (spigot x socket) is used instead.

Installation Notes

Cut pipe square and deburr. Dry-fit to check alignment, then prime and cement both the pipe ends and the elbow sockets, insert fully, and hold briefly. Allow full cure per the cement manufacturer's directions before pressurizing. Follow local plumbing code.

Customer-Facing Q&A

Q: What is the part number?
A: 417-020 (2" Schedule 40 PVC 45° elbow, socket x socket).

Q: Is this a street 45?
A: No. Both ends are slip sockets. A street 45 has one spigot end.

Q: What pipe does it fit?
A: 2" nominal PVC pipe.

Q: Do I need primer and glue?
A: Yes. Use PVC primer and PVC solvent cement.
