Product Overview

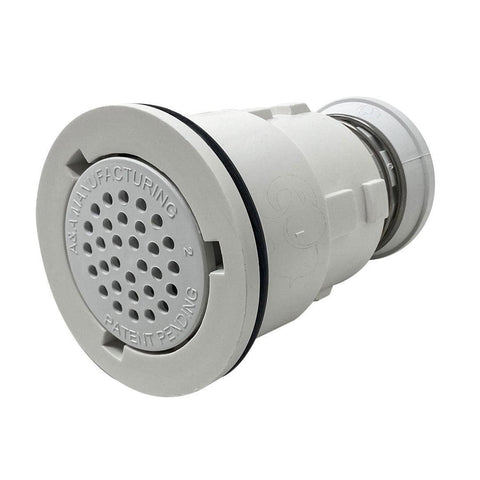

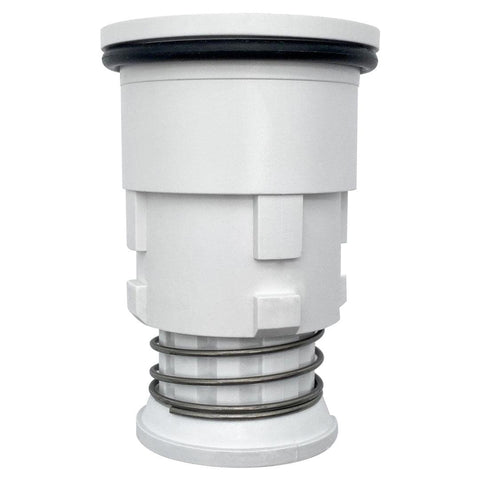

The A&A G2V Retro Internal for Style 2 White | 236701 is a genuine Pentair/A&A replacement in-floor cleaning head designed for compatible Style 2 / Gamma Series 2 pool cleaning systems.
The G2V design uses Venturi-assisted water movement to support effective circulation and debris movement across the pool floor. This replacement internal installs into a compatible existing Style 2 floor fitting, making it ideal for replacing a worn, damaged, sticking, or missing cleaning head without replacing the permanent floor fitting.
Finished in white, the 236701 blends well with light-colored plaster, quartz, pebble, and other pool finishes.
Key Features
- Genuine Pentair / A&A in-floor cleaning component
- Manufacturer Part Number: 236701
- Legacy A&A Part Number: 566961
- G2V Series Venturi retro cleaning head
- Designed for compatible Style 2 / Gamma Series 2 systems
- White finish
- Venturi-style water-flow design
- Helps restore proper in-floor cleaning performance
- Helps improve circulation across the pool floor
- Replaces worn or damaged G2V cleaning head internals
- Fits into the compatible existing floor fitting
- No need to replace the permanent floor fitting when the fitting is in good condition
- Designed for residential in-floor pool cleaning systems
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair / A&A Manufacturing |
| Manufacturer Part Number | 236701 |
| Legacy A&A Number | 566961 |
| Product Type | In-Floor Cleaning Head Internal |
| Series | G2V / Gamma Series 2 Venturi |
| Style | Style 2 |
| Configuration | Venturi Retro Internal |
| Color | White |
| Application | In-Floor Pool Cleaning |
| Installation | Compatible Style 2 Floor Fitting |
| UPC / GTIN | 818965011654 |
| Quantity | 1 |
| Warranty | 1-Year Limited |
Style 2 / Gamma Series 2 Compatibility
The 236701 is designed for compatible A&A/Pentair Style 2, also commonly referred to as Gamma Series 2, in-floor cleaning installations.
It is intended to replace the removable cleaning-head internal while utilizing the existing compatible floor fitting.
This part is not intended as a replacement for Style 1 or Style 1.5 cleaning heads. Verify the existing cleaning system and floor-fitting style before ordering.
G2V Venturi Design
The G2V designation identifies this cleaning head as the Venturi version of Pentair/A&A's Gamma Series 2 retro cleaning head.
The Venturi configuration is designed to use the water moving through the cleaning head to enhance circulation around the head. Properly operating in-floor heads work together by zone to move debris across the pool surface toward the main drain or other debris-collection point.
This can help provide:
- Improved floor circulation
- Effective debris movement
- Better distribution of treated water
- More uniform pool temperature
- Reduced stagnant areas within the pool
G2 vs. G2V
The 236701 is a G2V Venturi cleaning head, not the standard G2 variable-flow version.
For a standard white G2 Retro Internal with Variable Flow Orifice, the corresponding Pentair part number is 236671.
| Type | White Part Number |
|---|---|
| G2 Variable Flow Retro Internal | 236671 |
| G2V Venturi Retro Internal | 236701 |
Always confirm which cleaning-head design the existing in-floor system requires before ordering.
Available G2V Retro Colors
Pentair offers G2V Retro Internals in several colors:
| Part Number | Color |
|---|---|
| 236744 | Black |
| 236703 | Dark Gray |
| 236701 | White |
| 236702 | Light Gray |
| 236786 | Dark Blue |
This allows the replacement head to better match the pool's interior finish.
Installation Notes
Before replacing an in-floor cleaning head:
- Turn off the pool pump.
- Relieve all pressure from the circulation system.
- Verify that the existing fitting is Style 2 / Gamma Series 2.
- Remove the existing cleaning-head internal using the appropriate installation/removal tool.
- Inspect the floor fitting for cracks, damage, or debris.
- Install the new G2V internal and confirm that it locks securely into position.
- Restart the circulation system and verify proper head operation.
Frequently Asked Questions
What is Pentair 236701?
The 236701 is a white G2V Venturi Retro Internal cleaning head for compatible Pentair/A&A Style 2 in-floor pool cleaning systems.
What is the old A&A part number?
The legacy A&A Manufacturing number is 566961.
Is 236701 a complete floor fitting?
No. This is the removable cleaning-head internal. The permanent floor fitting is a separate component.
Does 236701 fit Style 2 systems?
Yes. It is designed for compatible Style 2 / Gamma Series 2 in-floor cleaning systems.
Is this the same as Pentair 236671?
No.
236701 = White G2V Venturi Retro Internal
236671 = White G2 Variable Flow Retro Internal
Verify which design your pool's cleaning system requires before ordering.
What color is 236701?
White.
Is this an OEM part?
Yes. It is a genuine Pentair/A&A in-floor cleaning replacement component.
