Product Overview

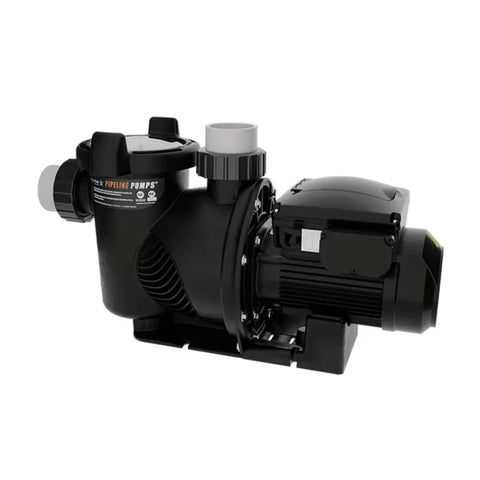

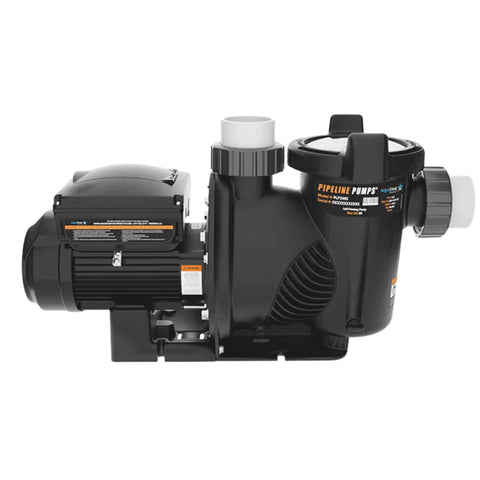

The AquaStar Pipeline Smart Model PLP300S is a 3 HP variable speed pool pump designed for efficient circulation, quiet operation, and smart control. Built with a permanent magnet motor and variable speed programming, this pump allows pool owners and service professionals to adjust pump speed for filtration, heating, cleaning, water features, and energy-saving daily operation.
The PLP300S Smart Model includes app-capable control, programmable speeds, RS485 communication, and integrated 2" / 2.5" union connection options, making it a flexible replacement or upgrade pump for many residential pool systems.
Ideal For
Residential pools needing a 3 HP variable speed pump with smart control, programmable speed settings, quiet operation, and energy-efficient circulation.
Key Features
- 3 HP variable speed pool pump
- 230V operation
- Permanent magnet motor design
- Smart model with app capability
- Four programmable speeds
- Speed range commonly listed from 800 to 3400 RPM
- RS485 communication port
- Automation-capable design
- Programmable start and stop times
- Noise-reducing vibration dampening insert
- Integrated 2.5" and 2" socket union connections
- Ergonomic lid handles with quick-release quarter-turn locking lid
- High-capacity self-aligning HDPE basket
- High-efficiency volute design
- Professional installation recommended
Benefits
The AquaStar PLP300S Pipeline Smart Pump gives customers the performance of a 3 HP variable speed pump with the convenience of smart control and programmable operation. Running the pump at lower speeds during routine filtration can help reduce energy usage and noise compared to traditional single-speed pumps.
The smart control features make it easier to adjust schedules and pump speeds, while the large basket, efficient volute design, and union connection options help support easier installation and maintenance.

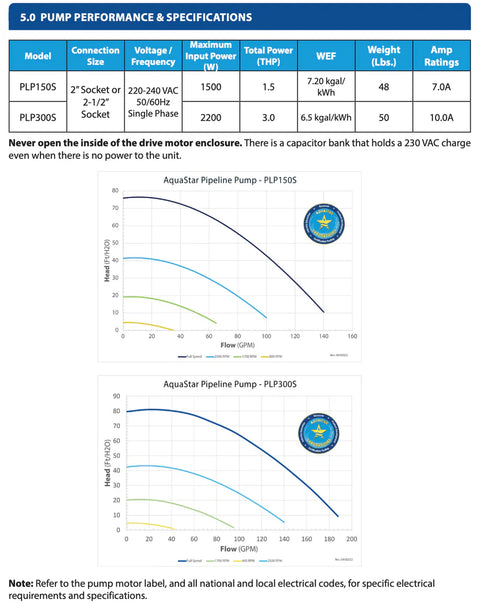

Specifications
| Specification | Details |
|---|---|
| Brand | AquaStar |
| Series | Pipeline |
| Product Type | Smart Variable Speed Pool Pump |
| Part Number / SKU | PLP300S |
| Horsepower | 3 HP |
| Speed Type | Variable Speed |
| Voltage | 230V |
| Motor Type | Permanent Magnet Motor |
| RPM Range | 800–3400 RPM |
| Programmable Speeds | 4 |
| Communication | RS485 Port |
| Smart Control | App Capability |
| Automation Compatibility | Automation capable; compatible systems may require additional interface/module |
| Union Connections | Integrated 2.5" and 2" socket unions |
| Basket Type | High-Capacity Self-Aligning HDPE Basket |
| Application | Residential Pool Circulation |
| Complete Pump Included | Yes |
| Barcode / UPC | 0883612102962 |
Confirm Before Ordering
Please confirm horsepower, voltage, plumbing size, automation requirements, equipment pad space, and replacement pump compatibility before ordering. This model is a 230V, 3 HP variable speed pump and should be installed by a qualified pool professional or licensed electrician.
If connecting to automation, confirm the required communication setup or interface module before purchase.
Customer-Facing Q&A
Is the AquaStar PLP300S a variable speed pump?
Yes. The PLP300S is a 3 HP variable speed pool pump.
What voltage does this pump use?
This model is listed as 230V.
Does this pump have smart/app control?
Yes. The PLP300S is the Smart Model and is commonly listed with app capability.
How many programmable speeds does it have?
This pump is commonly listed with four programmable speeds.
What is the RPM range?
The speed range is commonly listed from 800 to 3400 RPM.
Does this pump connect to automation?
Yes. It includes RS485 communication and is automation capable. Some automation systems may require an additional interface or module.
What plumbing connections does it use?
It includes integrated 2.5" and 2" socket union connection options.
Does this require professional installation?
Yes. Professional installation is recommended for correct wiring, plumbing, programming, priming, and safe startup.
