Product Overview

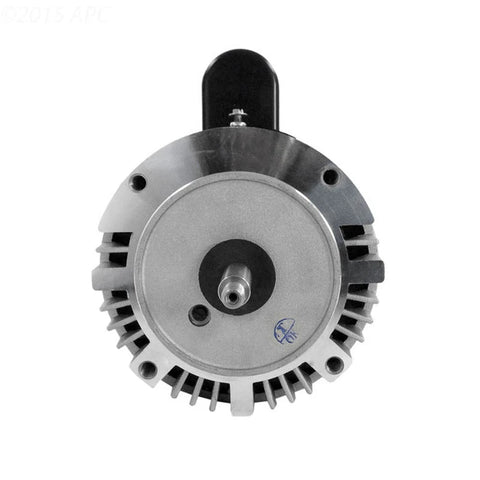

The Century B128 Pool Pump Motor is a full-rated 1 HP replacement motor designed for compatible pool and spa pump applications. This motor features single-phase power, single-speed operation, 230/115V dual-voltage compatibility, and 60Hz operation.

The B128 uses an M56J / 56J C-face frame with a threaded shaft, making it a common replacement motor for compatible pool pumps that require a 56J threaded-shaft motor. It is built with a permanent split capacitor design, open drip-proof enclosure, automatic thermal protection, and a stainless steel threaded shaft for pool and spa pump service.

Ideal For

• Pool pump motor replacement
• Spa pump motor replacement
• Compatible 56J C-face pump assemblies
• Replacing failed or noisy 1 HP motors
• Single-speed pool pump repairs
• Dual-voltage pump applications
• Residential pool circulation systems
• Pool service technicians
• Pump rebuilds and motor swaps
• Compatible Hayward, Jandy, Pentair, and other pump wet ends requiring a 56J threaded-shaft motor

Key Features

• 1 HP full-rated motor — provides dependable performance for compatible pool and spa pumps.
• 230/115V dual-voltage operation — supports either voltage when wired correctly by a qualified installer.
• Single-phase design — suitable for standard residential pool equipment applications.
• Single-speed operation — direct replacement for compatible 1-speed motor setups.
• 3450 RPM motor speed — standard high-speed pool pump motor performance.
• M56J / 56J C-face frame — designed for compatible threaded-shaft pump wet ends.
• Threaded stainless steel shaft — commonly listed with 7/16-20 threaded shaft configuration.
• 1.40 service factor — full-rated motor design for compatible pump systems.
• Permanent split capacitor motor — efficient, reliable motor design for pool pump service.
• Open drip-proof enclosure — designed for properly protected pool equipment installations.
• Automatic thermal overload protection — helps protect the motor from overheating.
• 50°C ambient temperature rating — suitable for demanding outdoor equipment environments when installed correctly.

Benefits

The Century B128 helps restore reliable pool circulation when the existing pump motor has failed, become noisy, overheated, or stopped starting properly. If the pump housing, impeller, diffuser, seal plate, and plumbing are still in good condition, replacing the motor can be a cost-effective alternative to replacing the entire pump.

The dual-voltage design gives installers flexibility for either 115V or 230V systems, while the 56J C-face threaded-shaft design makes this motor compatible with many common pool and spa pump wet ends.

For pool professionals, the B128 is a practical replacement motor for compatible 1 HP full-rated pump repairs.

Specifications

Included Components

• 1 × Century B128 1 HP pool and spa pump replacement motor

Pump housing, seal plate, impeller, diffuser, shaft seal, gaskets, O-rings, wiring, conduit, bonding wire, unions, and installation labor are sold separately unless specifically included by the supplier.

Compatibility Notes

The Century B128 is designed for compatible pool and spa pump assemblies requiring a 1 HP, single-speed, single-phase, 230/115V, 56J C-face threaded-shaft motor.

Common application references include:

• Compatible 56J threaded-shaft pool pump wet ends
• Hayward MaxFlo-style compatible applications where confirmed
• Select pool and spa pump systems using a 1 HP full-rated 56J motor
• Replacement applications matching B128 motor label specifications

Always confirm the existing motor label, horsepower, service factor, voltage, frame, shaft type, rotation, impeller size, seal plate style, and pump model before ordering.

Installation Notes

This motor should be installed by a qualified pool professional or licensed electrician. Turn off all power at the breaker before servicing the pump.

When replacing a pump motor, inspect the shaft seal, seal plate, diffuser, impeller, gaskets, O-rings, wiring, conduit, and bonding connection. It is strongly recommended to replace the shaft seal any time the motor is replaced to help prevent water from leaking into the new motor.

After installation, verify correct voltage wiring, bonding, grounding, motor rotation, pump priming, pressure, flow, and leak-free operation. Incorrect voltage, improper wiring, or mismatched impeller sizing can damage the motor.

Customer-Facing Q&A

Q: What is the Century B128?
A: It is a 1 HP single-speed replacement motor for compatible pool and spa pumps using a 56J C-face threaded-shaft motor.

Q: What is the SKU?
A: The SKU is B128.

Q: What is the barcode / UPC?
A: The barcode / UPC is 786674011893.

Q: What horsepower is this motor?
A: This motor is rated at 1 HP.

Q: What voltage does it use?
A: It is a dual-voltage motor rated for 230/115V.

Q: Is this motor single phase?
A: Yes. This is a single-phase motor.

Q: Is this a variable-speed motor?
A: No. This is a single-speed replacement motor.

Q: What frame is this motor?
A: It uses an M56J / 56J C-face frame.

Q: What is the RPM?
A: This motor is commonly listed at 3450 RPM.

Q: What is the service factor?
A: The service factor is 1.40.

Q: Does this include the full pump?
A: No. This listing is for the replacement motor only.

Q: Does this include the shaft seal?
A: No. The shaft seal is sold separately unless specifically included by the supplier.

Q: Should I replace the shaft seal during motor replacement?
A: Yes. Replacing the shaft seal is strongly recommended whenever the motor is replaced.
