Product Overview

Restore dependable circulation in a compatible inground pool or spa pump with the Century B985 replacement motor. This two-speed motor delivers 2 horsepower on high speed and approximately ⅓ horsepower on low speed, allowing compatible systems to use full output when higher flow is needed and reduced output during lighter circulation demands.

The B985 operates exclusively on 230V, single-phase, 60 Hz electrical service. High speed runs at approximately 3450 RPM, while low speed operates at approximately 1725 RPM. The motor uses a Y56Y square-flange configuration commonly found on compatible inground pool pumps.

A threaded stainless-steel shaft connects the motor to the pump impeller. Its open drip-proof enclosure provides ventilation around the windings, while automatic thermal-overload protection helps protect the motor if its internal temperature becomes excessive.

This listing includes the replacement motor only. The pump housing, impeller, diffuser, shaft seal, two-speed switch, timer, wiring, and installation hardware are not included.

Key Features

• Genuine Century pool and spa pump motor
• Two-speed 2 HP / ⅓ HP output
• 230V single-phase operation
• 60 Hz electrical configuration
• Approximately 3450/1725 RPM

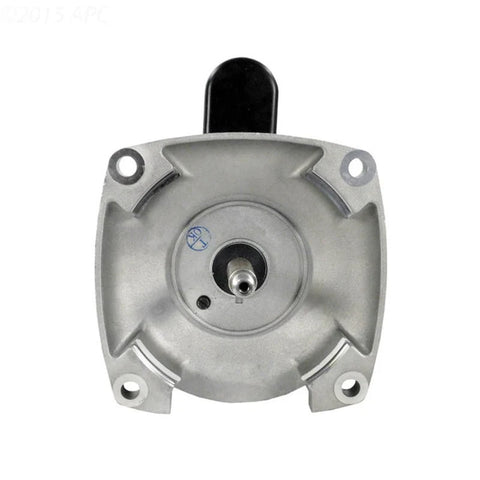

• Y56Y square-flange frame
• 1.1 high-speed service factor
• Approximately 2.2 total horsepower
• Threaded stainless-steel shaft
• Counterclockwise rotation from the shaft end
• Open drip-proof enclosure
• Automatic thermal-overload protection
• High/low toggle switch sold separately
• Designed for compatible inground pool and spa pumps

Specifications

Compatibility

The B985 is intended for compatible pumps requiring a two-speed, 230V, Y56Y square-flange motor with approximately 2.2 total horsepower.

Horsepower alone does not confirm compatibility. Compare the existing motor’s voltage, speed, frame, flange, service factor, total horsepower, shaft, amperage, and rotation. The pump impeller and diffuser must also be matched to the motor’s total output.

Replacing a single-speed motor with the B985 requires compatible two-speed controls. A standard single-pole timer or switch will not provide independent high- and low-speed selection.

Installation Information

Installation should be completed by a qualified pool technician or electrician. Disconnect and lock out power before servicing the pump.

Wire the motor according to its nameplate diagram using controls rated for two-speed 230V operation. Replace the mechanical shaft seal whenever the motor is separated from the pump wet end. Inspect the impeller, diffuser, seal plate, O-rings, and housing before reassembly.

Prime the pump completely before startup. Never operate the pump dry.

Package Contents

• One Century B985 two-speed replacement motor

Pump components, shaft seal, high/low switch, timer, wiring, and installation labor are not included.

Warranty Information

Warranty coverage is subject to Century’s current terms, proof of purchase, correct application, and proper installation. Incorrect voltage, improper controls, water intrusion, dry operation, or incompatible hydraulic components may not be covered.
