Product Overview

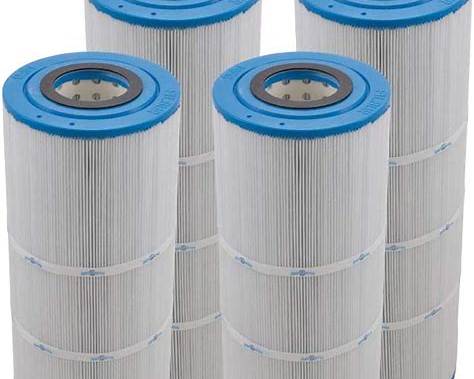

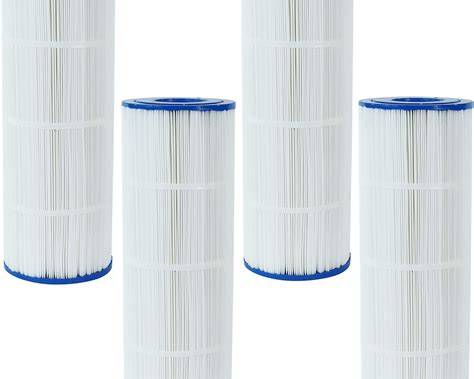

The Filbur FC-6425 Replacement Filter Cartridge 4-Pack is designed for compatible Hayward SwimClear C3025 and C3030 cartridge filters.
Each cartridge provides approximately 81 sq. ft. of filtration area, giving you a complete four-cartridge replacement set for compatible SwimClear filter systems.
Filbur cartridges are engineered for strong dirt-holding capacity, efficient water flow, and dependable service life. The FC-6425 uses 4 oz. filtration media, molded end caps, and an extruded PVC center core for structural support during demanding pool filtration operation.
This aftermarket replacement set provides a convenient alternative to Hayward OEM CX580XRE / CX580XREPAK4 cartridges without requiring adapters or modifications when used in the correct filter.
Key Features & Benefits
- Complete 4-Pack – Replaces all four cartridges in compatible SwimClear filters at the same time.
- 81 Sq. Ft. Per Cartridge – Provides the filtration capacity required for the applicable Hayward filter system.
- 4 oz. Pool Filtration Media – Designed for dirt-holding capacity and reliable water flow.
- PVC Extruded Core – Provides structural support under normal filtration pressure.
- Molded End Caps – Designed for straightforward installation without additional adapters.
- Embossed Filbur Part Numbers – Makes future cartridge identification easier.
- 3" Open Top & Bottom – Matches the compatible Hayward-style cartridge configuration.
- Direct Aftermarket Replacement – Cross-references common Hayward, Pleatco, and Unicel cartridge numbers.
Filbur specifically lists FC-6425 as 7" diameter × 19-5/8" long with 81 sq. ft. of media per cartridge.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Filbur |
| Manufacturer Part Number | FC-6425 |
| Product Type | Replacement Pool Filter Cartridge Set |
| Pack Quantity | 4 Cartridges |
| Filtration Area | 81 Sq. Ft. Per Cartridge |
| Outside Diameter | 7" |
| Length | 19-5/8" |
| Top Opening | 3" Open |
| Bottom Opening | 3" Open |
| Media Weight | 4 oz. |
| Core Construction | Extruded PVC |
| Application | Pool & Spa |
| Compatible Filter Family | Hayward SwimClear |
| Primary OEM Cross Reference | CX580XRE |
| Approx. Pack Weight | 17.7 lbs |
| Shipping Dimensions | 15" × 15" × 20.5" |
| UPC / GTIN | 645544064257 |
| Condition | New |
Compatible Hayward Filters
The Filbur FC-6425 is commonly used with:
- Hayward SwimClear C3025
- Hayward SwimClear C3030
- Compatible C3020 applications using CX580XRE cartridges
Hayward's current C3030 manual specifies CX580XRE, with four cartridges required, confirming the replacement architecture used by FC-6425.
Cross-Reference Part Numbers
The FC-6425 cross-references several commonly used replacement cartridge numbers:
| Manufacturer | Part Number |
|---|---|
| Hayward | CX580XRE / CX580-XRE |
| Hayward 4-Pack | CX580XREPAK4 |
| Filbur Single Cartridge | FC-1225 |
| Pleatco | PA81 / PA81-PAK4 |
| Unicel | C-7483 |
These cross-references are supported by Filbur's own catalog and current replacement-filter data.
Cartridge Dimensions

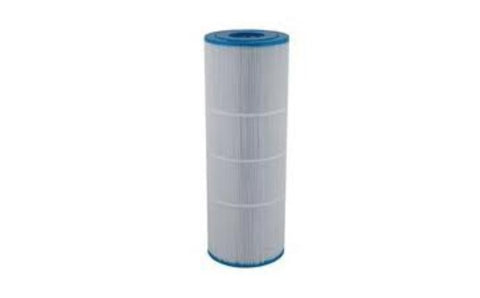

Each FC-6425 cartridge measures approximately:
7" Outside Diameter
19-5/8" Length
3" Open Top
3" Open Bottom
Always compare the dimensions and existing cartridge number before ordering, especially on older SwimClear filter installations.
Why Replace All Four Cartridges Together?
A four-cartridge filter performs best when all elements have similar flow resistance and condition.
Replacing the full set can help provide:
- More balanced water flow
- Improved filtration
- More consistent filter pressure
- Easier maintenance scheduling
- Reduced chance of one older cartridge restricting the system
- Consistent service life across the complete filter set
Maintenance Tips
For maximum cartridge life:
- Clean cartridges when filter pressure rises approximately 8–10 PSI above clean starting pressure, or according to the filter manufacturer's instructions.
- Use a garden hose with a focused spray pattern to clean between pleats.
- Avoid damaging the pleated media with excessive pressure.
- Inspect the end caps, bands, pleats, and center core during each cleaning.
- Replace cartridges that are torn, collapsed, cracked, or no longer clean effectively.
- Keep pool water chemistry properly balanced.
Frequently Asked Questions
How many cartridges come in FC-6425?
Four cartridges are included.
How much filtration area does each cartridge have?
Approximately 81 sq. ft. per element.
Does FC-6425 fit a Hayward C3030?
Yes. It replaces the CX580XRE-style cartridges used in compatible C3030 filters. Hayward specifies four CX580XRE cartridges for the C3030.
Does it fit the Hayward C3025?
Yes. FC-6425 is specifically marketed for compatible C3025/C3030 SwimClear systems.
Is this a genuine Hayward cartridge?
No. This is a Filbur aftermarket replacement cartridge set manufactured to fit compatible Hayward filtration equipment.
What is the OEM Hayward cross reference?
CX580XRE.
