Product Overview

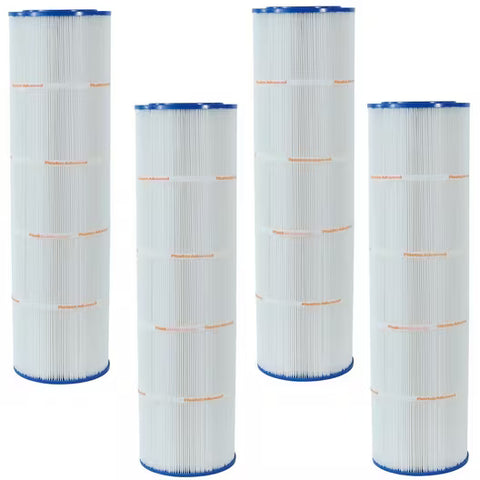

The Filbur FC-6430 Replacement Cartridge 4-Pack is designed for compatible Hayward SwimClear C4025 and C4030 cartridge filters.
Each cartridge provides approximately 106 sq. ft. of filtration area, giving you a complete four-cartridge replacement set for compatible SwimClear filter systems.
Filbur cartridges are engineered for strong dirt-holding capacity, consistent water flow, and long service life. The FC-6430 uses 4 oz. filtration media, molded end caps, and durable extruded PVC center cores to maintain cartridge structure under normal pool filtration pressure.
This aftermarket replacement set is a direct alternative to Hayward CX880XRE / CX880XREPAK4 cartridges and installs in compatible SwimClear filter housings without modification.
Key Features & Benefits
- Complete 4-Pack – Replaces all four cartridges in compatible SwimClear filters at the same time.
- 106 Sq. Ft. Per Cartridge – Provides the required filtration area for compatible C4025/C4030 systems.
- 4 oz. Filtration Media – Designed for efficient dirt capture and dependable water flow.
- PVC Extruded Center Cores – Provides structural support and helps resist collapse.
- Molded End Caps – Designed for straightforward installation.
- Embossed Filbur Part Numbers – Makes future cartridge identification easier.
- Direct Hayward Replacement – Cross-references CX880XRE-style cartridges.
- OEM-Spec Aftermarket Design – Filbur manufactures replacement cartridges to pool and spa industry specifications.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Filbur |
| Manufacturer Part Number | FC-6430 |
| Product Type | Replacement Pool Filter Cartridge Set |
| Pack Quantity | 4 Cartridges |
| Filtration Area | 106 Sq. Ft. Per Cartridge |
| Outside Diameter | 7" |
| Length | 25-1/2" |
| Media Weight | 4 oz. |
| Core Construction | Extruded PVC |
| Application | Pool & Spa |
| Compatible Filter Family | Hayward SwimClear |
| Primary OEM Cross Reference | CX880XRE / CX880RE |
| Approx. Package Weight | 22.55 lbs |
| Shipping Dimensions | 15" × 15" × 26.25" |
| UPC / GTIN | 645544064301 |
| Condition | New |
Compatible Hayward Filters
The Filbur FC-6430 is designed for compatible Hayward SwimClear systems including:
- Hayward C4025
- Hayward C4030
- Compatible C4000/C4020 installations using CX880-series cartridges
Hayward specifically lists CX880XRE for the C4030, with four cartridges required. Hayward also identifies CX880XRE for C4000, C4020, C4025, and C4030 applications.
Cross-Reference Part Numbers
| Manufacturer | Part Number |
|---|---|
| Hayward | CX880XRE / CX880RE |
| Hayward 4-Pack | CX880XREPAK4 |
| Filbur Single Cartridge | FC-1226 |
| Filbur 4-Pack | FC-6430 |
| Pleatco | PA106 / PA106-PAK4 |
| Unicel | C-7488 / C-7488-4 |
Filbur’s catalog directly identifies FC-6430 as the quad-pack replacement for Hayward CX880RE.
Cartridge Dimensions
Each cartridge measures approximately:
7" Outside Diameter
25-1/2" Length
106 Sq. Ft. Filtration Area
These dimensions are confirmed directly by Filbur’s current quad-pack catalog.
Why Replace All Four Cartridges Together?
Replacing the entire set helps maintain more consistent hydraulic performance across the filter.
Benefits can include:
- Balanced water flow
- More even dirt loading
- Consistent filter pressure
- Better overall filtration
- Easier maintenance scheduling
- Similar service life across all four elements
Hayward’s C4030 filter uses four CX880XRE cartridges, so the FC-6430 provides the complete replacement set in one package.
Maintenance Tips
For best cartridge life:
- Rinse cartridges thoroughly with a garden hose.
- Clean between each pleat.
- Avoid using excessively high pressure that could damage the media.
- Inspect the end caps, bands, center core, and pleats during cleaning.
- Replace cartridges that are cracked, torn, collapsed, or no longer clean effectively.
- Maintain proper pool-water chemistry.
- Follow the filter manufacturer's pressure-rise guidance for cleaning intervals.
Frequently Asked Questions
How many cartridges are included with FC-6430?
Four cartridges are included.
How much filtration area does each cartridge provide?
Approximately 106 sq. ft. per cartridge.
Does FC-6430 fit a Hayward C4030?
Yes. The C4030 uses four CX880XRE cartridges, which FC-6430 cross-references.
Does it fit the Hayward C4025?
Yes. Hayward lists CX880XRE for the C4025, and Filbur FC-6430 is the corresponding quad-pack replacement.
Is this a genuine Hayward cartridge?
No. It is a Filbur aftermarket replacement set designed for compatible Hayward SwimClear filters.
What are the cartridge dimensions?
Approximately 7" diameter × 25-1/2" long.
