Product Overview

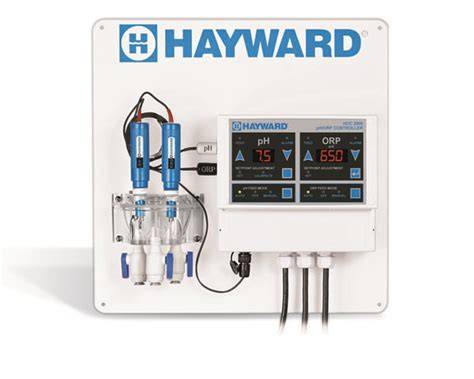

The Hayward HCC 2000 Water Chemistry Controller | HCC2000 is a commercial-grade automated pH and ORP controller designed to provide continuous monitoring and precise chemical control for swimming pools and spas. Using microprocessor-based technology and proportional feed control, the HCC 2000 automatically activates compatible chemical feed equipment based on actual water demand, helping maintain consistent water chemistry while reducing manual adjustments.
The controller monitors pH and oxidation-reduction potential (ORP) through commercial-grade sensors. ORP measures sanitizer activity and allows the controller to manage compatible chlorine, bromine, salt-chlorine, acid, base, and other chemical-feed systems. The standard HCC2000 includes the controller, pH and ORP sensors, flow cell, flow sensor, installation tubing, fittings, and mounting backboard. Chemical feed pumps are not included with HCC2000; for a package with pre-mounted feed pumps, use model HCC2000-CP.
Key Features
- Automatic pH and ORP monitoring and control
- Advanced microprocessor-based controller
- Proportional chemical feed for more precise water chemistry
- Compatible with chlorine, bromine, salt chlorine generators, acid and base feed systems
- Easy-to-read digital LED display
- Automatic, Off, and Manual feed modes
- Acid or base pH feed configuration
- Adjustable pH and ORP setpoints
- Audible and visual safeguard alarms
- Adjustable overfeed protection
- Flow-sensor protection prevents chemical feeding during inadequate circulation
- Diagnostic self-test functionality
- Dry-contact outputs for compatible external chemical feeders
- Optional remote alarm capability
- Factory-mounted on a durable PVC backboard
- NSF/ANSI Standard 50 Certified
- Designed for commercial pool and spa applications
- 1-year limited manufacturer warranty
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Hayward |
| Series | HCC 2000 |
| Part Number | HCC2000 |
| Product Type | Automated Water Chemistry Controller |
| Controlled Parameters | pH and ORP |
| pH Display Range | 0.0 – 9.9 |
| ORP Display Range | 100 – 995 mV |
| pH Setpoint Range | 7.0 – 8.0 |
| ORP Setpoint Range | 525 – 995 mV |
| Factory pH Setpoint | 7.5 |
| Factory ORP Setpoint | 650 mV |
| pH Control Accuracy | ±0.1 pH |
| ORP Control Accuracy | ±5 mV |
| pH Feed Modes | Automatic / Off / Manual |
| ORP Feed Modes | Automatic / Off / Manual |
| pH Feed Selection | Acid / Base |
| Power Input | 120/240 VAC, 10 Amp, 50/60 Hz |
| pH Feed Output | 4 Amp at 120/240 VAC; 1 Amp Dry Contact |
| ORP Feed Output | 4 Amp at 120/240 VAC; 1 Amp Dry Contact |
| Remote Alarm Output | 1 Amp Dry Contact |
| Sensor Connection | Shielded BNC |
| Sensor Wet End | 1/2" NPT |
| Flow Sensor | Included |
| Application | Commercial Pools & Spas |
| Carton Quantity | 1 |
| Carton Weight | Approx. 11 lb |
| UPC / GTIN | 0610377139243 |
| Warranty | 1 Year Limited |
Current Hayward technical specifications list the HCC2000 at a 0.0–9.9 pH display range, 100–995 mV ORP display range, 7.0–8.0 pH setpoint range, and 525–995 mV ORP setpoint range.
What's Included
The HCC2000 standard package includes:
- HCC 2000 Water Chemistry Controller
- PVC mounting backboard with mounting holes and stainless hardware
- Flow cell with flow sensor and valves
- pH sensor with 24" cable and BNC connector
- ORP sensor with 24" cable and BNC connector
- 30 ft. roll of 3/8" OD installation tubing
- Two 1/4" NPT x 3/8" tubing connectors
- Two BNC connector protective covers
- Two sensor storage containers
- Owner's manual
- Quick-start guide

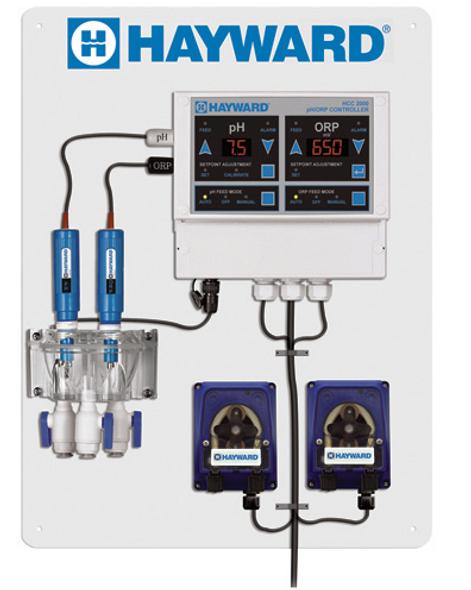

Important: Chemical feed pumps are optional equipment and are not included with part number HCC2000. The HCC2000-CP is the complete-package version with pre-mounted chemical feed pumps.
How the HCC 2000 Works
The pH sensor continuously measures the acidity or alkalinity of the pool water, while the ORP sensor measures sanitizer activity. The controller compares these readings with the programmed setpoints and activates the appropriate external chemical feeder when adjustment is required.
The integrated flow sensor provides an additional safety layer by disabling automatic chemical feeding when inadequate circulation is detected. Hayward also incorporates audible and visual alarms and diagnostic functions to help operators identify improper water chemistry or system conditions.
Frequently Asked Questions
Does the HCC2000 include chemical pumps?
No. The standard HCC2000 includes the controller, sensors, flow cell, flow sensor and installation components. For the model with pre-mounted chemical-feed pumps, use HCC2000-CP.
Does the HCC2000 measure chlorine in PPM?
The HCC2000 controls sanitizer primarily through ORP, which measures the sanitizing activity of chlorine, bromine or other oxidizers rather than directly displaying a free-chlorine PPM measurement.
Can it control a salt chlorine generator?
Yes. The HCC 2000 is designed for integration with compatible electronic salt chlorine generation and other chemical-feed systems.
Is the HCC2000 suitable for commercial pools?
Yes. The HCC Series is part of Hayward's commercial water-quality management line and is designed for commercial pool and spa applications.
Is the HCC2000 NSF certified?
Yes. Hayward identifies the HCC2000 as NSF/ANSI Standard 50 Certified.
