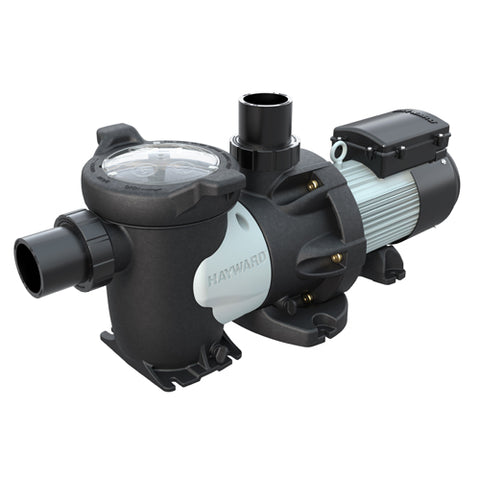

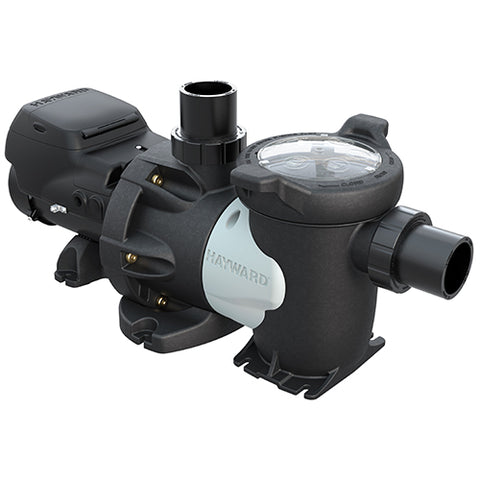

Keep a commercial pool circulation system moving with the Hayward HCP 3000 Series 5 HP self-priming pump. Its service-friendly strainer components make routine equipment checks and cleaning easier for pool professionals.

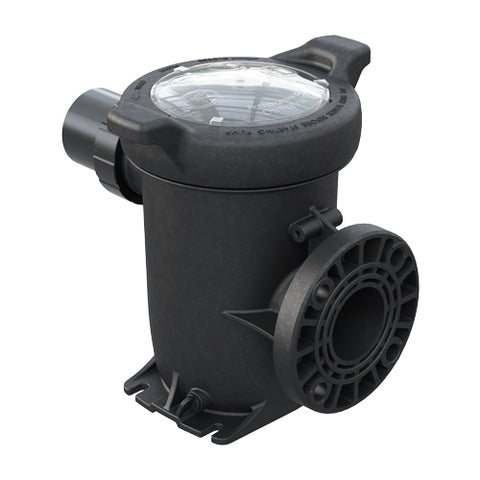

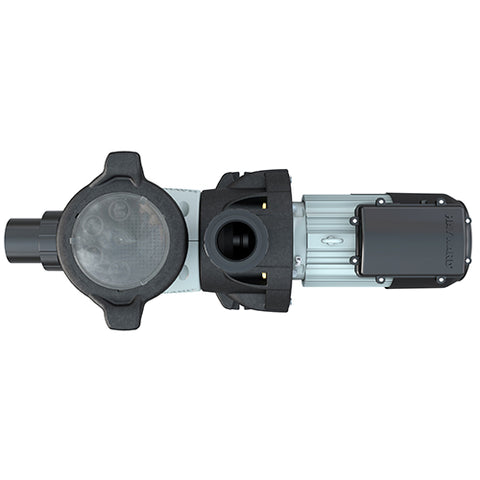

The transparent cover lets you inspect the basket at a glance and closes with less than a quarter turn. A modular strainer housing also supports remote mounting when the equipment layout calls for it.

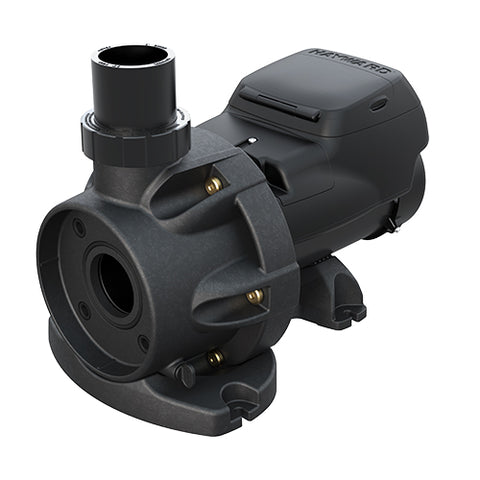

• Commercial motor: The totally enclosed fan-cooled, three-phase motor runs at a single speed.
• Chemical-resistant seal: A Viton shaft seal resists pool chemicals.
• Debris collection: The oversized, removable strainer basket gives debris a dedicated place to collect.
• Electrical rating: The pump is rated 208–230/460V at 60 Hz and requires compatible three-phase power.
• Flow reference: Published performance is 200 GPM at 60 feet of head and 60 Hz; actual flow depends on system resistance.
• Plumbing connections: Suction and discharge use 2½-inch × 3-inch unions for matching system layouts.
• Included assembly: The pump and motor arrive with strainer housing, basket, cover, and union connections. An external variable frequency drive is selected separately.

Use this pump for a new commercial installation or a replacement evaluated for electrical supply, required flow, total dynamic head, and plumbing fit. Matching horsepower alone does not confirm compatibility. Qualified professionals should install or service it and check system requirements, electrical protection, grounding, bonding, ventilation, and clearances.

Hayward classifies this as Expert Line equipment, sold through pool professionals or in-store. The listed limited warranty is three years, subject to current purchase, installation, and manufacturer terms. The pump is NSF/ANSI Standard 50 certified; shipping dimensions are 19.9 × 18.5 × 38.3 inches, and shipping weight is 117 lb.
