Product Overview

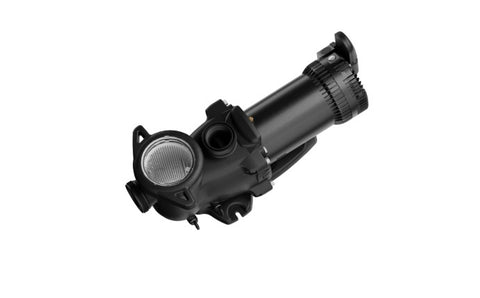

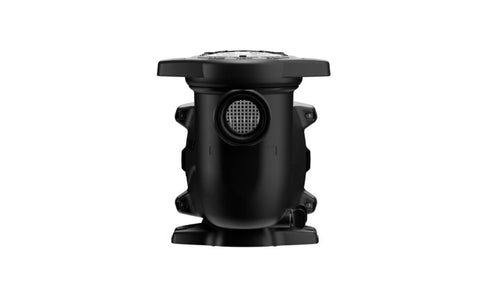

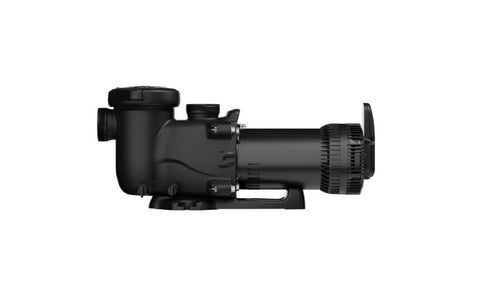

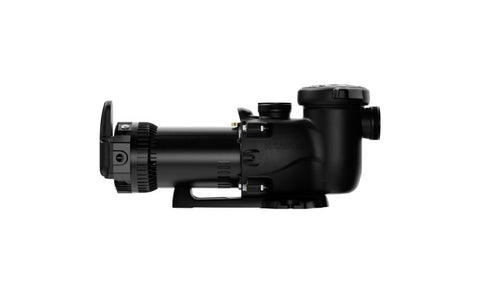

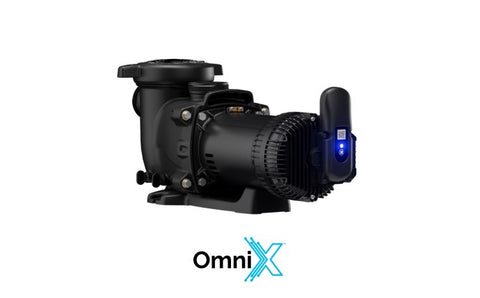

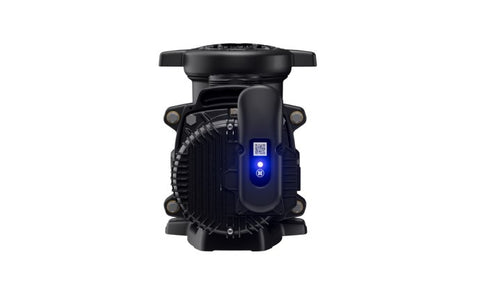

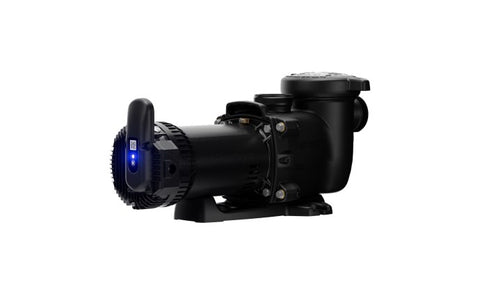

Set your in-ground pool’s circulation to suit the task with the Hayward MaxFlo VS 420, a complete 2.25 THP pump with adjustable speeds from 600 to 3,450 RPM. Use Bluetooth and the OmniX app to check water temperature, change settings, and plan daily circulation schedules from a compatible smartphone.

Run it locally from poolside, then add the optional OmniX Gateway if you want remote access beyond Bluetooth range. It’s a practical upgrade when you want more control over your pool routine without replacing the pump to expand connectivity.

Key Features

Adjustable circulation: Choose a speed from 600–3,450 RPM to suit filtration and other circulation needs.

App-based control: Bluetooth connects with the OmniX app for local access to settings, schedules, and water-temperature monitoring.

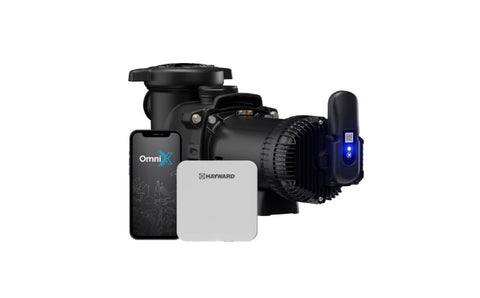

Remote access option: Add the separately sold OmniX Gateway for remote control.

Complete pump: Includes the motor, drive, strainer assembly, and OmniX module.

Electrical details: Supports 115V or 230V at 60 Hz, with listed amperage of 19.9A at 115V or 14.2A at 230V.

Strainer capacity: The 94-cubic-inch strainer volume gives you room for collected debris between basket cleanings.

Shipping size and weight: Measures 12.4" × 9.9" × 29" and weighs 34.09 lb for shipping.

Specifications

Warranty & Compatibility

Before replacing an existing pump, have a qualified professional check flow rate, total dynamic head, plumbing, electrical supply, and installation clearance. A matching horsepower rating alone does not confirm fit, and Hayward requires professional installation and servicing. This Expert Line model is available through local pool professionals or in-store; confirm purchasing arrangements, installation requirements, and applicable warranty coverage before ordering.
