Product Overview

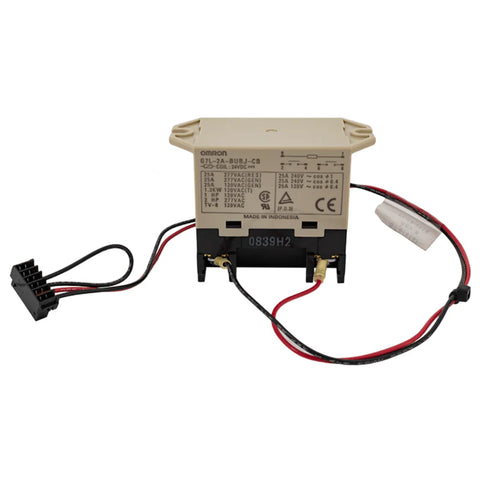

The Hayward OmniLogic 1 Relay Module | HLRELAY is a genuine Hayward automation accessory designed to expand the control capability of compatible Hayward OmniLogic pool and spa automation systems. This single high-voltage relay module allows the OmniLogic system to control an additional piece of pool or backyard equipment through the existing automation panel.

Designed for use with the Hayward OmniLogic base system, the HLRELAY is a practical expansion part for pool owners and service professionals who need to add control for equipment such as lights, pumps, waterfalls, cleaners, or other compatible on/off devices. After installation, the OmniLogic system can detect the relay and allow it to be configured through the system’s configuration wizard.

Ideal For

The Hayward HLRELAY 1 Relay Module is ideal for:

Expanding compatible Hayward OmniLogic automation systems
Adding control for one additional high-voltage device
Pool and spa equipment automation upgrades
Pool lights, water features, cleaners, pumps, or other compatible equipment
Residential inground pool and spa systems
Pool professionals installing or expanding Hayward automation panels
Customers who want more control without replacing the full automation system

Key Features

Genuine Hayward Automation Accessory

The HLRELAY is a genuine Hayward relay module designed for compatible OmniLogic automation systems, helping ensure proper integration and reliable performance.

Adds One High-Voltage Relay

This module adds one additional high-voltage relay to the OmniLogic system, allowing control of one extra compatible pool or backyard equipment circuit.

Designed for OmniLogic Systems

The HLRELAY is made for use with the Hayward OmniLogic base system. The base system includes four high-voltage relays, and up to two HLRELAY modules can be added for expanded control.

Automatic System Detection

After installation and power-up, the OmniLogic system can automatically detect the added HLRELAY module for setup through the configuration wizard.

Configuration Wizard Setup

The relay can be configured through the OmniLogic configuration wizard, allowing the added circuit to be assigned to compatible pool equipment.

Supports Backyard Equipment Expansion

This relay module is useful for adding automation control to features such as pool lights, pumps, water features, cleaners, and other compatible on/off equipment.

Compact Panel-Mounted Design

The HLRELAY installs inside the OmniLogic system panel beneath the dead front, helping keep the added relay integrated within the existing automation enclosure.

Professional Installation Solution

Because installation requires access inside the automation panel and high-voltage wiring, this module should be installed by a qualified pool professional or electrician.

Benefits

The Hayward OmniLogic HLRELAY helps expand the functionality of an existing OmniLogic automation system without replacing the entire control panel. By adding one additional relay circuit, pool owners can automate more equipment and improve control of their pool or backyard features from the OmniLogic interface.

For pool professionals, the HLRELAY provides a clean expansion solution when a customer needs one more controllable high-voltage circuit. Its automatic detection and configuration wizard setup help simplify integration once the module is properly installed.

Specifications

Customer-Facing Q&A

What is the Hayward HLRELAY used for?

The Hayward HLRELAY is used to add one additional high-voltage relay to a compatible Hayward OmniLogic automation system. It allows the system to control one more compatible piece of pool or backyard equipment.

Is this compatible with Hayward OmniLogic?

Yes. The HLRELAY is designed for the Hayward OmniLogic base system.

How many HLRELAY modules can be added?

Up to two HLRELAY modules can be added to the OmniLogic base system, allowing additional high-voltage relay control beyond the base panel’s included relays.

What equipment can this relay control?

This relay can be used for compatible on/off pool and backyard equipment such as lights, pumps, water features, cleaners, and similar high-voltage circuits when properly wired and configured.

Does the OmniLogic system detect this module automatically?

Yes. After proper installation and power-up, the OmniLogic system can detect the HLRELAY module and display it in the configuration wizard for setup.

Where does this relay install?

The HLRELAY installs inside the OmniLogic system panel beneath the dead front. Power must be shut off before accessing the panel.

Is this a low-voltage or high-voltage relay?

This is a high-voltage relay module.

Is professional installation recommended?

Yes. This module connects inside the automation panel and involves high-voltage wiring. Installation by a qualified pool professional or electrician is strongly recommended.
