Product Overview

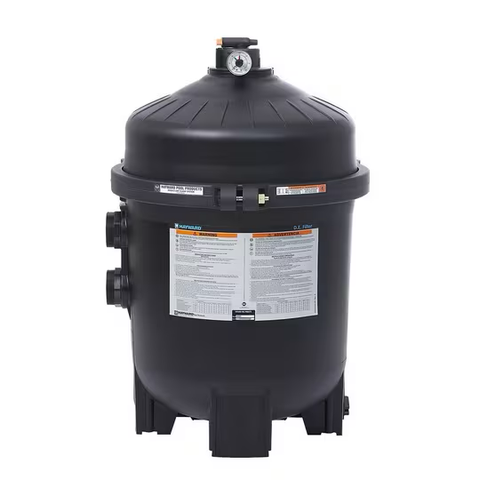

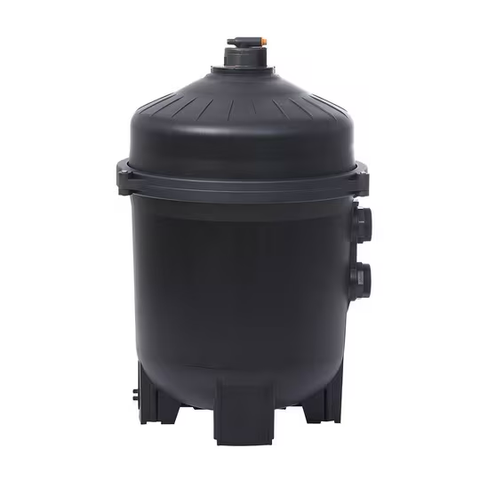

The Hayward Pro-Grid 36 sq. ft. DE Filter W3DE3620 is designed to deliver exceptional pool water clarity using high-performance diatomaceous earth filtration. Built for in-ground pools and spas, this vertical grid DE filter provides fine-particle filtration, efficient water flow, and dependable long-term operation.

The Pro-Grid series is built with a durable glass-reinforced co-polymer tank, high-impact grid elements, and a service-friendly clamp design. Its vertical grid layout supports efficient up-flow filtration and top-down backwashing, helping keep pool water clean, clear, and properly circulated.

Important: This model does not include a backwash valve. A compatible Hayward multiport or slide valve must be purchased separately.

Ideal For

Residential in-ground swimming pools
Pool and spa systems requiring DE filtration
Customers looking for superior fine-particle water clarity
Replacement for Hayward DE3620 / W3DE3620 filter systems
Pool owners upgrading from sand or smaller filter systems
Applications requiring a 36 sq. ft. vertical grid DE filter

Key Features

36 sq. ft. DE Filtration Area

The 36 square foot effective filtration area provides excellent debris capture and water clarity for residential pool and spa systems.

Superior DE Water Clarity

Diatomaceous earth filtration is known for capturing very fine particles, helping produce cleaner, clearer pool water than standard sand filtration.

Durable Glass-Reinforced Co-Polymer Tank

The filter tank is made from strong, corrosion-resistant glass-reinforced co-polymer material designed for demanding pool equipment environments.

High-Impact Vertical Grid Elements

The internal grid elements are designed for up-flow filtration and top-down backwashing for efficient performance.

Rapid-Release Manual Air Relief

A high-capacity manual air relief valve helps bleed trapped air quickly with a quarter-turn lever.

One-Piece Flange Clamp

The heavy-duty, tamper-proof clamp securely fastens the tank top and bottom while allowing access to internal components for cleaning and service.

Self-Aligned Tank Design

The tank top and bottom are designed to align easily, helping make servicing the grid assembly faster and simpler.

2" Full-Flow Internal Plumbing

Full-flow internal piping helps reduce flow resistance and supports efficient system performance.

Valve Flexibility

The filter can be paired with compatible Hayward multiport or slide valve options depending on the pool system’s plumbing setup.

Benefits

The Hayward W3DE3620 is a strong choice for pool owners who want the fine filtration performance of DE with a durable, service-friendly filter body. DE filters are especially valued for producing sparkling water clarity by trapping smaller particles than many other filter types.

With its 36 sq. ft. filtration area, 4.5 lb DE charge, 90 GPM residential design flow rate, and reinforced tank construction, this model is well suited for in-ground pool and spa systems when properly matched with the pump, plumbing, and valve.

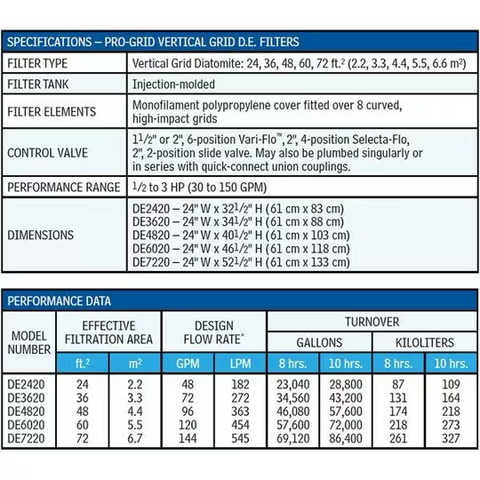

Specifications

Compatible Valve Options

Compatible valve selection depends on the pool system plumbing size and installation preference.

What’s Included

Hayward W3DE3620 Pro-Grid 36 sq. ft. DE filter tank
Internal vertical grid assembly
One-piece flange clamp system
Manual air relief assembly
Integral lift handles
Low-profile filter base

Backwash valve is not included.
Pool-grade DE powder is not included.
Pressure gauge is listed by Hayward as not included for this model.

Customer-Facing Q&A

Does this filter include the backwash valve?

No. The Hayward W3DE3620 does not include a backwash valve. A compatible multiport or slide valve must be purchased separately.

How much DE powder does this filter require?

This filter requires 4.5 lbs. of pool-grade diatomaceous earth after cleaning or backwashing.

Is DE powder included?

No. DE powder must be purchased separately.

What is the flow rate?

The Hayward W3DE3620 has a 90 GPM residential design flow rate and a 72 GPM public design flow rate.

Is this a cartridge filter?

No. This is a DE filter. It uses internal grids coated with diatomaceous earth powder.

Is this a sand filter?

No. This filter does not use sand. It uses DE powder as the filter media.

What type of pool is this filter for?

This model is designed for in-ground pool and spa applications.

How many grids are inside?

Hayward lists this model with 10 filter elements.

Does this filter include a pressure gauge?

Hayward lists the W3DE3620 as pressure gauge not included.

How is this filter cleaned?

The filter is cleaned by backwashing through a compatible backwash valve. The grid assembly can also be removed and cleaned during deeper maintenance.
