Product Overview

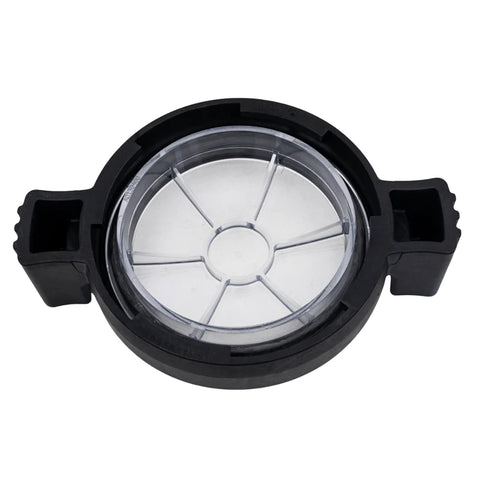

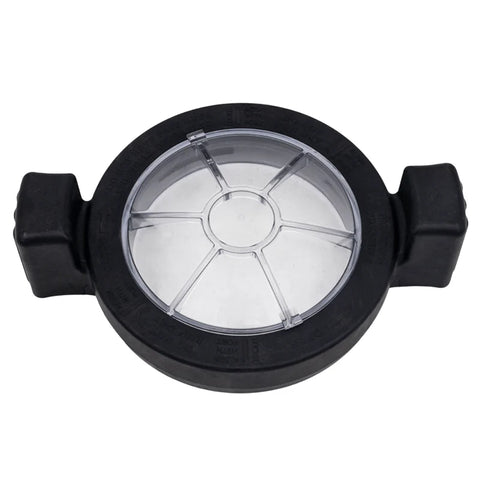

The Jandy FloPro Pump Lid and Locking Ring Assembly R0480000 is a replacement assembly designed for compatible Jandy FloPro Series pool pumps. It replaces the removable strainer lid and locking ring located above the pump basket chamber.

The clear lid allows technicians and pool owners to inspect water flow and basket condition without opening the pump. The locking ring secures the lid evenly against the pump housing, helping create the airtight seal required for reliable priming and circulation.

This assembly is an ideal replacement when the original lid is cracked, cloudy, warped, or leaking, or when the locking ring is damaged and can no longer secure the lid correctly.

Ideal For

• Replacing a cracked or warped pump lid
• Replacing a damaged locking ring
• Correcting air leaks around the strainer lid
• Restoring secure access to the pump basket
• Improving visibility into the basket chamber
• Repairing compatible Jandy FloPro pumps
• Addressing pump priming problems caused by lid damage

Key Features

• Replacement pump lid and locking ring assembly
• Designed for compatible Jandy FloPro pumps
• Clear lid allows visual inspection of the basket chamber
• Locking ring secures the lid evenly to the housing
• Helps maintain an airtight suction-side seal
• Provides convenient access for basket cleaning
• Replaces damaged or worn original components
• Durable construction for outdoor pool-equipment use
• Designed for straightforward installation on compatible pumps

Specifications

Included Components

This replacement assembly is identified as including:

• Pump strainer lid
• Locking ring

Only components contained in the manufacturer’s packaging should be considered included.

The following parts should not be assumed to be included unless specifically shown or stated:

• Lid O-ring
• Pump basket
• Pump housing
• Drain plugs
• Diffuser
• Impeller
• Motor
• Wet end
• Complete pump assembly

Compatible Pump Family

The R0480000 assembly is intended for select pumps within the:

• Jandy FloPro Series

Jandy has produced different FloPro pump generations and configurations. Similar-looking pumps may use different lids, locking rings, seals, or pump housings.

Verify the full pump model number and compare the original assembly before ordering.

Common Signs Replacement Is Needed

Replacement may be necessary when:

• The clear lid is cracked
• The lid is cloudy or difficult to see through
• The lid has become warped
• The locking ring is cracked
• Locking-ring threads are stripped
• The ring will not tighten evenly
• Air bubbles are visible inside the pump basket
• Water leaks from the lid area after shutdown
• The pump repeatedly loses prime
• The lid is unusually difficult to remove
• The assembly has freeze or impact damage

Lid-area air leaks may also be caused by a damaged O-ring, debris on the sealing surface, or a cracked pump housing.

Benefits

• Helps restore proper pump priming
• Supports an airtight strainer chamber
• Allows easy visual inspection of the basket
• Provides convenient access for maintenance
• Replaces the lid and locking ring together
• Helps reduce suction-side air leaks
• Restores secure lid retention
• Extends the service life of the existing pump
• Maintains the original pump configuration

Installation Information

Before installing the replacement assembly:

1. Turn off electrical power to the pump.
2. Close any necessary plumbing valves.
3. Release pressure from the filtration system.
4. Remove the existing locking ring and lid.
5. Inspect the pump housing and sealing surface.
6. Clean dirt and debris from the lid area.
7. Inspect the lid O-ring for wear or damage.
8. Apply an approved silicone-based pool lubricant to a reusable O-ring.
9. Position the lid evenly on the pump housing.
10. Install and hand-tighten the locking ring.
11. Restore water flow and inspect for leaks.

Do not use petroleum-based lubricant. Do not use tools or excessive force to tighten the locking ring.

Confirm Before Ordering

• Verify the complete pump model number.
• Confirm the pump belongs to a compatible Jandy FloPro generation.
• Compare the original lid and locking ring with R0480000.
• Inspect the lid O-ring to determine whether it must be ordered separately.
• Check the pump-housing threads for damage.
• Confirm the pump housing is not cracked or warped.
• Do not determine compatibility from horsepower alone.
• Confirm that both the lid and locking ring are required.

Troubleshooting a Lid-Area Air Leak

If the pump continues to pull air after installing the replacement assembly, inspect:

• Lid O-ring condition
• O-ring placement
• Pump-housing sealing surface
• Locking-ring alignment
• Drain-plug O-rings
• Pump inlet fitting
• Suction-side plumbing connections
• Pool water level
• Skimmer operation

This assembly will not correct an air leak caused by damaged plumbing, a cracked pump housing, or another failed suction-side component.

Warranty Information

This replacement assembly is covered according to Jandy’s applicable replacement-parts warranty terms.

Warranty eligibility may depend on:

• Correct pump compatibility
• Proper installation
• Normal intended use
• Proof of purchase
• Compliance with manufacturer service procedures

Damage caused by overtightening, incorrect installation, freezing, chemical exposure, physical impact, incompatible equipment, or misuse may not be covered.

Customer-Facing Q&A

What is included with R0480000?
This assembly is identified as including the pump lid and locking ring. The O-ring, basket, and other pump components should not be assumed to be included.

Which pumps does this assembly fit?
It is intended for select Jandy FloPro Series pumps. Verify the complete pump model before ordering.

Is the pump lid clear?
Yes. The clear inspection lid allows the basket chamber and water condition to be viewed without removing the lid.

Does it include the pump basket?
No. The strainer basket is not included.

Does it include the lid O-ring?
The O-ring has not been confirmed as included and should be ordered separately when required.

Can a damaged lid cause a pump to lose prime?
Yes. A cracked or warped lid, damaged locking ring, or worn O-ring can allow air into the pump.

Will this fit every Jandy FloPro pump?
Not necessarily. Jandy has produced different FloPro configurations, so the pump model and original part should be checked.

Should tools be used to tighten the ring?
No. The locking ring should normally be hand-tightened according to the manufacturer’s instructions.

Important Purchase Notice

⚠️ Important Purchase Notice: This product is intended to be purchased and installed by pool professionals. Product support is not provided to homeowners. Returns are not accepted on this or any electronic equipment. Damages to product from shipping will be covered and must be reported promptly. By purchasing this item, you agree to the terms above.
