Product Overview

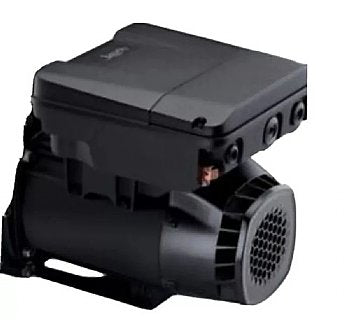

The Jandy R0816800 DV2A Motor with Drive Assembly is a genuine OEM replacement designed for compatible Jandy 2.7 HP variable-speed pool pumps. This complete assembly combines the electric motor and electronic variable-speed drive, allowing a qualified technician to restore pump operation without replacing the complete pump housing, plumbing connections, or wet end.
The R0816800 is designed for select DV2A configurations within the Jandy VS FloPro™, VS PlusHP™, and ePump™ product families. It restores variable-speed operation, programmable pump performance, and communication with compatible Jandy controllers or automation systems.
This replacement is ideal when the existing motor has failed, the drive no longer powers on, speed commands are not being accepted, or the pump displays a confirmed motor or drive fault. Because multiple generations of Jandy variable-speed pumps use different motors, drives, connections, and electronics, the pump model and existing replacement-part number must be verified before ordering.
This listing includes the 2.7 HP motor and drive assembly only. The pump body, diffuser, impeller, mechanical shaft seal, seal plate, controller, communication cable, unions, and complete pump are not included.
Key Features
- Genuine Jandy OEM replacement assembly
- Includes motor and electronic variable-speed drive
- Rated for compatible 2.7 HP DV2A pump models
- Restores variable-speed pump operation
- Designed for select VS FloPro, VS PlusHP, and ePump applications
- Compatible with supported Jandy pump controllers and automation
- Allows reuse of a serviceable pump wet end
- Factory-matched motor and drive components
- Suitable for professional pump repair
- Complete pump not included
Benefits
Replacing the motor-and-drive assembly can be more economical than replacing the complete pool pump when the wet end, housing, and plumbing connections remain in good condition. The R0816800 restores the ability to operate the pump at different speeds for filtration, heating, spa operation, water features, and other programmed functions.
Variable-speed operation allows compatible pumps to run at lower speeds during routine circulation and higher speeds when additional flow is required. This can reduce unnecessary energy use compared with operating a traditional single-speed motor continuously at full output.
Using a genuine Jandy replacement assembly also helps maintain the correct motor, drive electronics, mounting pattern, communication capability, and performance characteristics for supported DV2A pump models.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Jandy |
| Manufacturer Part Number | R0816800 |
| SKU | R0816800 |
| Product Type | Motor with Variable-Speed Drive |
| Horsepower Rating | 2.7 HP |
| Motor Configuration | DV2A |
| Pump Type | Variable Speed |
| Compatible Product Families | Select VS FloPro, VS PlusHP and ePump Models |
| Voltage Compatibility | 115/208–230V, Depending on Pump Model |
| Motor Included | Yes |
| Electronic Drive Included | Yes |
| Pump Wet End Included | No |
| Impeller Included | No |
| Mechanical Shaft Seal Included | No |
| UPC / Barcode | 052337078245 |
Jandy currently identifies compatible 2.7 HP DV2A pumps as operating on 115/208–230 VAC, although the exact electrical requirements must be confirmed from the pump data label before installation.
Installation Information
Disconnect all electrical power before servicing the pump. Installation requires separating the existing motor assembly from the pump wet end and transferring or replacing the required hydraulic components.
The mechanical shaft seal should be replaced whenever the motor is removed. Inspect the impeller, diffuser, seal plate, O-rings, wiring, and communication connections before reassembly.
The replacement assembly must be wired according to the pump data label, Jandy installation instructions, and applicable electrical codes. Programming or automation configuration may also be required after installation.
Installation must be completed by a qualified pool professional or licensed electrician.
Confirm Before Ordering
Verify the following before purchasing:
- Your pump uses a 2.7 HP DV2A motor and drive.
- The required replacement part is R0816800.
- Your pump model is listed as compatible with this assembly.
- The voltage shown on the pump label matches the installation.
- You need both the motor and electronic drive.
- The pump wet end, impeller, and diffuser are still serviceable.
- The failure has been properly diagnosed.
Warranty Information
This genuine Jandy replacement part is covered by the applicable manufacturer’s limited warranty when purchased and installed according to Jandy requirements. Warranty coverage does not include incorrect wiring, improper voltage, water intrusion, dry operation, chemical damage, installation errors, unauthorized modifications, or failures caused by incompatible pump components.
⚠️ Important Purchase Notice: This product is intended to be purchased and installed by pool professionals. Product support is not provided to homeowners. Returns are not accepted on this or any electronic equipment. Damages to product from shipping will be covered and must be reported promptly. By purchasing this item, you agree to the terms above.
Customer Q&A
Does this include the complete pump?
No. It includes the 2.7 HP motor and variable-speed drive assembly only.
Is the mechanical shaft seal included?
No. A new shaft seal should be purchased separately and installed during the repair.
Will this fit every Jandy 2.7 HP pump?
No. Compatibility depends on the pump series, DV2A configuration, manufacturing generation, voltage, and existing part number.
Can it communicate with Jandy automation?
Yes, when installed on a compatible pump and connected to a supported Jandy controller or automation system.
