Product Overview

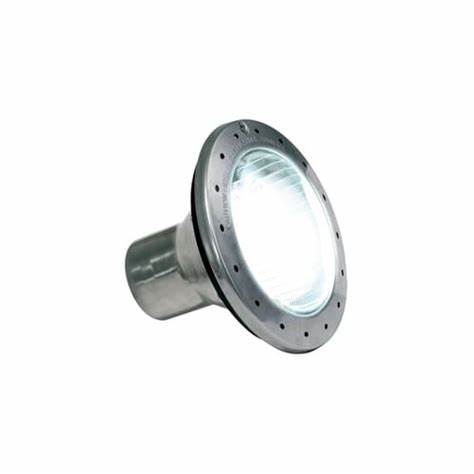

The Jandy WPHV500WS100 Large White Pool Light is a complete underwater incandescent light fixture designed to provide bright, traditional white illumination for compatible in-ground swimming pools. This model operates on 120 volts, uses a 500-watt incandescent lamp, and includes a 100-foot factory-installed power cord.

The large-format fixture features a stainless-steel body and face ring for strength, corrosion resistance, and a clean finished appearance. Its clear glass lens distributes bright white light throughout the pool, improving nighttime visibility and creating the familiar warm appearance associated with traditional incandescent pool lighting.

Jandy designed its white incandescent light line for residential and commercial pool applications where maximum white light output and straightforward ON/OFF operation are preferred. The fixture may be connected to a standard pool-light switch, approved time clock, or a compatible Jandy AquaLink® automation relay for convenient control.

This is a complete wet-niche pool-light fixture, not a replacement bulb, face ring, or LED retrofit. A compatible large underwater niche is required and is sold separately.

Key Features

• Genuine Jandy complete underwater pool-light fixture
• Large-format pool-light design
• Bright white incandescent illumination
• 500-watt lamp output
• 120V electrical operation
• Includes a 100-foot factory-installed cord
• Stainless-steel body and face ring
• Clear glass lens
• Traditional ON/OFF operation
• Compatible with approved switches and time clocks
• Can be controlled through a compatible AquaLink relay
• Designed for compatible large wet niches
• Suitable for residential and commercial pools

Benefits

The WPHV500WS100 provides strong, full-pool illumination using a traditional incandescent lamp. Its 500-watt output is well suited for larger pools or darker pool finishes that require substantial light output for nighttime visibility.

Unlike color-changing fixtures, this model provides simple, consistent white lighting without light-show programming or specialized controllers. Operation is controlled by supplying or removing power through the approved switch, relay, or time clock.

The 100-foot cord provides flexibility for installations where the approved junction box or electrical connection is located farther from the pool niche. Because the cord is attached and sealed at the factory, it provides a continuous electrical connection when installed correctly.

Specifications

Installation Information

Disconnect all electrical power before installing or servicing the light. Confirm that the lighting circuit is designed for 120V operation and that the niche, conduit, junction box, grounding, bonding, and circuit protection meet applicable electrical codes.

Route the complete 100-foot factory cord through the conduit to an approved junction box. Do not cut, splice, shorten, or modify the cord underwater or inside the conduit. Leave enough cord behind the fixture to allow the light to be lifted onto the pool deck for future service.

The fixture must remain submerged during operation to provide proper cooling. Installation must be completed by a licensed electrician or qualified pool professional.

Confirm Before Ordering

Verify the following:

• Your pool-lighting system operates on 120V.
• You require a 500-watt incandescent fixture.
• Your pool uses a compatible large wet niche.
• A 100-foot cord is appropriate for the installation.
• You want white-only lighting.
• You need a complete fixture rather than a replacement lamp.
• Your electrical circuit is properly sized for the 500-watt load.

Warranty Information

The Jandy WPHV500WS100 is covered by the applicable manufacturer’s limited warranty when installed and operated according to Jandy requirements. Coverage does not include incorrect voltage, dry operation, incompatible niches, modified cords, improper installation, chemical damage, broken lenses, or water intrusion caused by installation or servicing errors.

⚠️ Important Purchase Notice: This product is intended to be purchased and installed by pool professionals. Product support is not provided to homeowners. Returns are not accepted on this or any electronic equipment. Damage from shipping must be reported promptly. By purchasing this item, you agree to these terms.

Customer Q&A

Is this an LED pool light?
No. The WPHV500WS100 is a traditional 500-watt incandescent white pool light.

Does the fixture include the niche?
No. A compatible large underwater wet niche is required and sold separately.

Can this light be controlled by Jandy automation?
Yes. It may be connected to a compatible AquaLink auxiliary relay for basic ON/OFF operation.

Is the 100-foot cord included?
Yes. The light includes a factory-installed 100-foot power cord.
