Product Overview

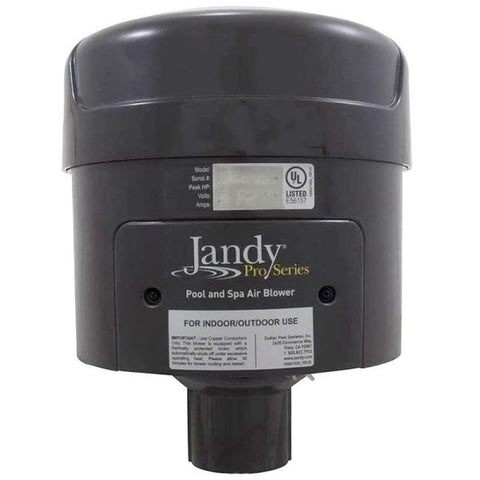

The Jandy PSB120 Pool and Spa Air Blower delivers powerful airflow for spa jets, bubblers, and compatible pool or spa water features. Its 2 HP motor is designed for applications requiring strong aeration and dependable performance while maintaining a reduced operating noise level for a more comfortable spa experience.
Designed for 120V electrical service, the PSB120 connects to a 2-inch PVC air line and can be installed in standard, long-run, or properly configured below-grade applications. Jandy rates this model for a maximum back pressure of 65 inches of water, but the blower must be properly sized to the plumbing system and required airflow before installation.
Key Features
- Powerful 2 HP air blower
- Designed for pools, spas, bubblers, and compatible water features
- 120V electrical configuration
- Reduced operating noise for a quieter spa environment
- Maximum back-pressure rating of 65 inches of water
- Connects to 2-inch PVC air-line plumbing
- Integrated mounting bracket for wall or post installation
- Suitable for standard and properly configured long-run installations
- Compatible with Jandy automation or a properly rated control system
- Genuine Jandy professional-grade equipment
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Jandy |
| Product Type | Pool and Spa Air Blower |
| Model | PSB120 |
| Motor Rating | 2 HP |
| Voltage | 120V |
| Frequency | 60 Hz |
| Maximum Back Pressure | 65 Inches of Water |
| Plumbing Connection | 2-Inch PVC Air Line |
| Application | Spas, Bubblers and Compatible Water Features |
| Installation Position | Above Water Level or Approved Hartford Loop Configuration |
| Mounting | Base or Included Vertical Mounting Bracket |
| Automation Compatibility | Compatible with Properly Rated Pool/Spa Controls |
| SKU | PSB120 |
| Barcode / UPC | Manufacturer UPC Not Published |
Quiet, Powerful Spa Performance
The Jandy pool and spa blower is designed to provide vigorous air movement through spa jets without excessive equipment noise. The powerful 2 HP motor makes the PSB120 suitable for systems with higher airflow or back-pressure requirements when confirmed through proper blower-sizing calculations.
Ideal For
- Residential spas
- Commercial spas
- Spa venturi-jet systems
- Pool and spa bubblers
- Water features requiring forced airflow
- Replacement of a compatible 2 HP, 120V spa blower
- New pool and spa construction
Installation Requirements
The blower should be installed by a qualified pool professional and licensed electrician in accordance with applicable electrical, plumbing, and building codes.
For standard installations, the blower should be positioned at least 12 inches above the maximum water level and generally between 5 and 25 feet from the spa wall. A properly rated check valve must be installed between the blower and spa jets to help prevent water from reaching the blower.
For installations located more than 25 feet from the spa or below the water level, an approved Hartford-loop plumbing configuration may be required. Jandy also directs installers to position the blower away from heater exhaust and other sources of contaminated air.
Proper Blower Sizing
Correct blower sizing is critical. The required blower must be selected based on:
- Vertical distance from the spa water surface to the air outlet
- Total length of 2-inch air-line plumbing
- Number of 90-degree and 45-degree elbows
- Number of check valves
- Number and size of air holes or spa jets
- Required airflow in standard cubic feet per minute
- Total system back pressure
Improper sizing or excessive back pressure can damage the blower and may not be covered under the manufacturer’s warranty.
Included Components
- Jandy PSB120 pool and spa air blower
- Integrated removable mounting bracket
- Factory-installed 120V selector configuration
- Installation instructions
Plumbing fittings, check valves, conduit, wiring, controls, and mounting hardware may be sold separately.
Confirm Before Ordering
Before purchasing, verify:
- Required motor size is 2 HP
- Available electrical service is 120V
- Existing air line uses a compatible 2-inch PVC connection
- Total calculated back pressure does not exceed 65 inches of water
- Required airflow matches the PSB120 performance curve
- Installation location meets water-level and clearance requirements
- A suitable check valve or Hartford loop will be installed
- The connected automation relay or switch is properly rated
Do not select a replacement blower by horsepower alone. The complete plumbing layout and airflow demand must also be considered.
Warranty Information
This product is covered by the applicable Jandy/Fluidra manufacturer warranty when purchased through an authorized dealer and installed according to the manufacturer’s requirements.
Professional installation is required. Damage caused by incorrect voltage, improper blower sizing, excessive back pressure, water intrusion, restricted plumbing, improper wiring, or installation contrary to the manufacturer’s instructions may not be covered.
Frequently Asked Questions
What voltage does the PSB120 require?
The PSB120 is the 120V, 2 HP model.
What is the maximum back pressure?
Jandy lists a maximum back-pressure rating of 65 inches of water for the PSB120.
What plumbing size does it use?
The blower is designed to connect to a 2-inch PVC air line.
Can it be installed below the spa water level?
Yes, but only with an approved Hartford-loop configuration and correct check-valve placement to prevent water from entering the blower.
Can the blower be glued directly to the PVC pipe?
No. Jandy warns against using chemical adhesive to permanently attach the blower to the air line. The blower must be secured using the installation method and fasteners specified by the manufacturer.
Can it be controlled by pool automation?
Yes, when connected through a properly rated relay or control circuit and installed by a qualified electrician.
