Product Overview

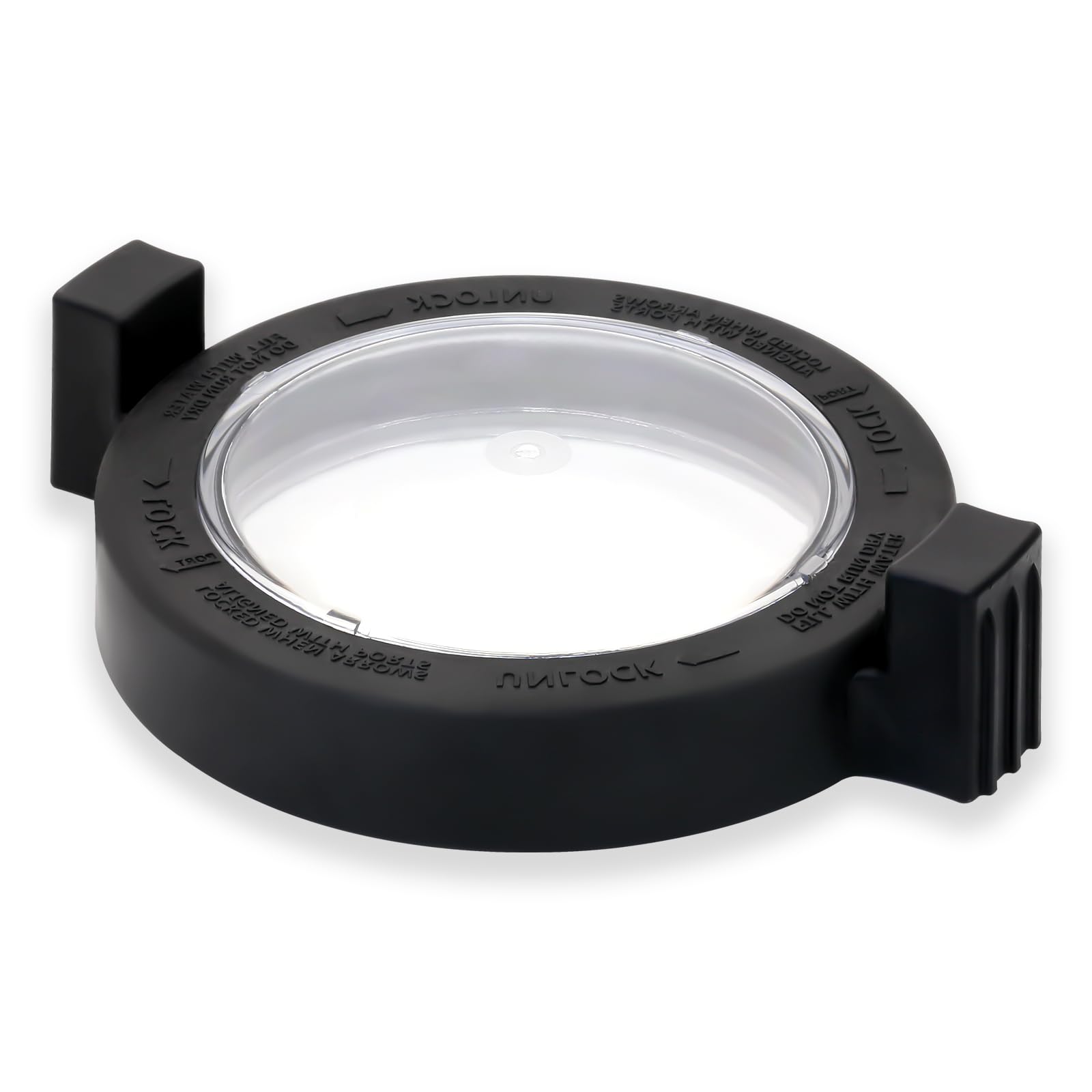

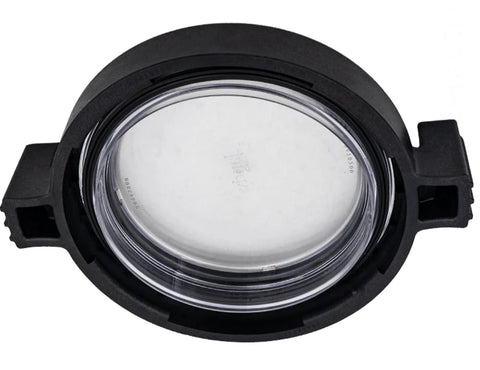

The Jandy Pro Series Locking Ring with Lid and O-Ring R0445800 is a complete replacement strainer-lid assembly for compatible Jandy pool pumps.

The assembly includes the three primary components needed to cover and seal the pump’s strainer basket chamber: the clear pump lid, locking ring, and lid O-ring. Replacing these components together helps restore a secure lid connection and an airtight seal when the original assembly is cracked, warped, worn, cloudy, or difficult to tighten.

The clear inspection lid allows the pump basket and water flow to be viewed without opening the pump. The locking ring secures the lid evenly against the pump housing, while the included O-ring creates the seal needed to help prevent suction-side air leaks and loss of prime.

Ideal For

• Replacing a cracked or warped pump lid
• Replacing a damaged locking ring
• Replacing a flattened or deteriorated lid O-ring
• Correcting air leaks around the strainer lid
• Restoring reliable pump priming
• Improving visibility into the pump basket chamber
• Repairing compatible Jandy Pro Series pool pumps

Key Features

• Complete pump-lid replacement assembly
• Includes clear strainer lid
• Includes locking ring
• Includes lid O-ring
• Designed for compatible Jandy Pro Series pumps
• Helps maintain an airtight strainer chamber
• Allows visual inspection of the pump basket
• Provides convenient access for basket cleaning
• Replaces three commonly worn components together
• Durable construction for outdoor pool-equipment use

Benefits

• Helps prevent suction-side air leaks
• Supports reliable pump priming
• Restores secure lid retention
• Replaces a cloudy or damaged inspection lid
• Eliminates the need to reuse a worn lid O-ring
• Makes routine basket inspection easier
• Provides convenient access for pump maintenance
• Helps extend the service life of the existing pump
• Maintains the original pump configuration

Specifications

Included Components

• Clear pump strainer lid
• Pump lid locking ring
• Lid O-ring

The following components are not included:

• Pump basket
• Pump housing
• Drain plugs
• Diffuser
• Impeller
• Motor
• Wet end
• Complete pump assembly

Compatible Equipment

The R0445800 is designed for select Jandy pool-pump applications.

Jandy has manufactured several pump families with similar-looking strainer lids and locking rings. Compatibility must be confirmed using:

• Complete pump model number
• Pump serial number
• Existing lid dimensions
• Original replacement-part number
• Pump parts diagram

Do not order this assembly based only on pump horsepower or the appearance of the existing lid.

Common Signs Replacement Is Needed

Replace the lid assembly when:

• The clear lid is cracked
• The lid is warped
• The lid has become cloudy or discolored
• The locking ring is cracked
• Locking-ring threads are stripped
• The ring will not tighten evenly
• The lid O-ring is flattened or stretched
• The O-ring is cracked or brittle
• Air bubbles are visible inside the pump basket
• The pump repeatedly loses prime
• Water leaks from the lid area after shutdown
• The lid is difficult to remove
• The assembly has freeze or impact damage

Pump priming problems may also be caused by low pool-water level, clogged suction lines, damaged drain-plug seals, or other suction-side plumbing leaks.

Installation Information

Before installing the replacement assembly:

1. Turn off and lock out electrical power to the pump.
2. Close any necessary plumbing valves.
3. Release pressure from the pool filtration system.
4. Remove the existing locking ring and lid.
5. Remove the existing lid O-ring.
6. Clean the pump-housing sealing surface.
7. Inspect the housing for cracks or damaged threads.
8. Lightly lubricate the new O-ring with an approved silicone-based pool lubricant.
9. Position the O-ring correctly in its sealing area.
10. Place the lid evenly onto the pump housing.
11. Install and hand-tighten the locking ring.
12. Restore water flow and check for air or water leaks.

Do not use petroleum-based lubricants on the O-ring. Do not use tools or excessive force to tighten the locking ring.

Confirm Before Ordering

• Verify the pump’s complete model number.
• Confirm R0445800 in the pump’s replacement-parts diagram.
• Compare the existing lid and locking ring with the replacement.
• Verify the lid diameter and locking-ring design.
• Inspect the pump-housing threads for damage.
• Confirm that the pump housing is not cracked or warped.
• Do not determine compatibility by horsepower alone.
• Confirm that the complete lid, ring, and O-ring assembly is required.

Troubleshooting a Lid-Area Air Leak

If the pump continues pulling air after installation, inspect:

• O-ring placement
• O-ring lubrication
• Pump-housing sealing surface
• Locking-ring alignment
• Housing threads
• Drain-plug O-rings
• Pump inlet connection
• Suction-side plumbing
• Pool water level
• Skimmer weir operation

This assembly will not correct an air leak caused by damaged plumbing, a cracked pump housing, or another failed suction-side component.

Warranty Information

This genuine Jandy replacement assembly is covered according to Jandy’s applicable replacement-parts warranty terms.

Warranty eligibility may depend on:

• Correct pump compatibility
• Proper installation
• Normal intended use
• Proof of purchase
• Compliance with manufacturer service procedures

Damage caused by overtightening, incorrect installation, freezing, chemical exposure, incompatible equipment, physical impact, or misuse may not be covered.

Customer-Facing Q&A

What is included with R0445800?
The assembly includes the clear pump lid, locking ring, and lid O-ring.

Does this include the pump basket?
No. The strainer basket is not included.

Is the lid clear?
Yes. The clear inspection lid allows the pump basket chamber and water flow to be viewed without removing the lid.

Can this assembly help fix a pump that loses prime?
Yes, when the problem is caused by a cracked lid, damaged locking ring, or failed lid O-ring. Other suction-side leaks must be repaired separately.

Does the O-ring need to be purchased separately?
No. A lid O-ring is included with the R0445800 assembly.

Will this fit every Jandy pump?
No. Compatibility varies by pump family and generation. Confirm the pump’s complete model number before ordering.

Should tools be used to tighten the locking ring?
No. The ring should generally be hand-tightened. Excessive force can damage the ring or pump housing.

What lubricant should be used on the O-ring?
Use only an approved silicone-based pool-equipment lubricant. Do not use petroleum jelly or petroleum-based products.

Important Purchase Notice

⚠️ Important Purchase Notice: This product is intended to be purchased and installed by pool professionals. Product support is not provided to homeowners. Returns are not accepted on this or any electronic equipment. Damages to product from shipping will be covered and must be reported promptly. By purchasing this item, you agree to the terms above.
