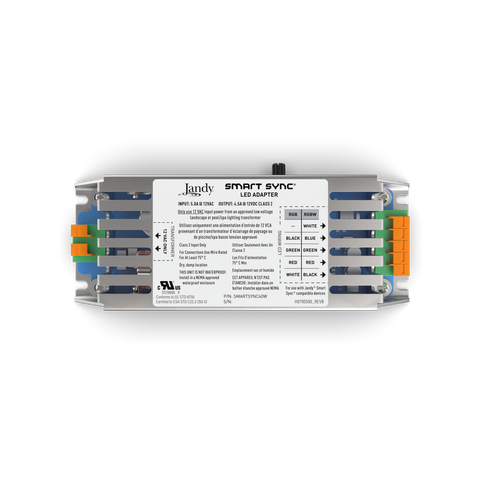

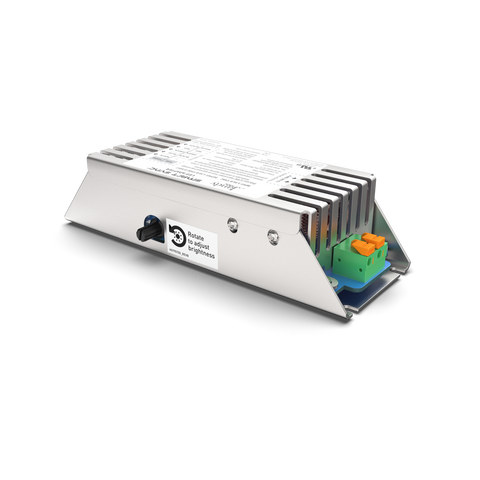

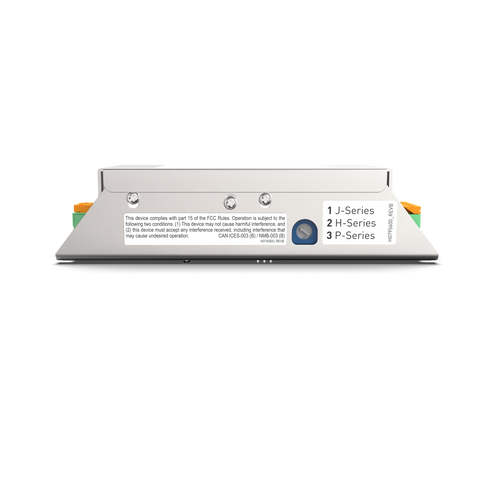

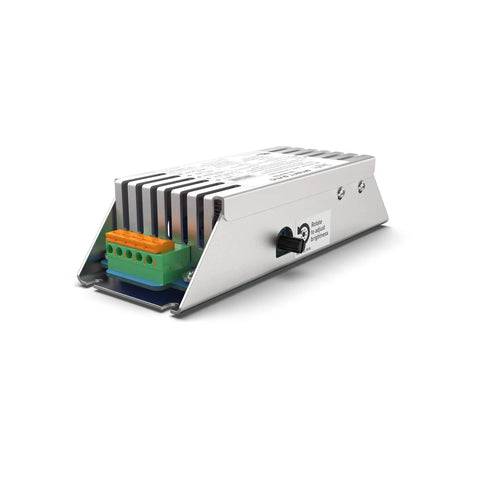

Jandy Smart Sync 60 Watt Led Adapter | SMARTSYNC60W
Easily synchronize multiple Brilliant Wonders® LED Waterfalls and the most popular pool lights and automation systems with the Jandy Smart Sync® LED Adapter. With simple installation, you can operate up to 12-feet of waterfalls allowing pool owners to conveniently create and control an enthralling atmosphere full of vibrant colors and the soothing sound of cascading water.
J-STYLE SYNC INSTRUCTIONS
To operate the light and change colors:
Turn the light ON. The first time the light is turned on, the color sequence will
begin with Alpine White. To change color, turn light OFF then back ON within three
(3) seconds. Continue turning OFF and ON until the desired light color mode is
reached.
When the light is turned off for more than seven (7) seconds, it will remain in the
color mode that was currently active when the light was turned off.
To RESET the light to the beginning color sequence (Alpine White), turn the light
OFF, wait four (4) to six (6) seconds, then turn the light ON.
H-STYLE SYNC INSTRUCTIONS
To operate the light and change colors:
The H-Style lights are operated through power-cycling; a method of changing
modes which requires no special controller or interface. To activate the lights simply
turn the power switch ON. To advance to the next programmed light mode, turn
the switch OFF then back ON within ten (10) seconds. Whenever the lights have
been off for more than sixty (60) seconds, and it is first turned on, they will come
on white for 15 seconds, then go back to the last programmed light mode it was
running before being powered off.
To sync the light with additional H-STYLE lights:
The H-Style lights can easily be synced with additional H-Style lights. All lights
should be wired to the same switch, this should automatically sync the lights. If the
lights get out of sync on the same switch: turn the switch OFF, then wait between
eleven (11) and fourteen (14) seconds and turn the switch back ON. When the
lights come back on, they should enter program mode number one (1) and be
synchronized.
P-STYLE COLOR SELECTION AND SYNC INSTRUCTIONS
To operate the light and change colors:
The P-Style lights can be controlled using a standard wall-mount light switch.
Multiple lights can be connected via a junction box to a single switch so that all
lights can be switched ON and OFF together. “P” Style Lights are controlled by
cycling the AC power from a standard wall switch. By turning the switch ON and
OFF a specific number of times, the light activates one of the seven (7) light show
modes, fixed colors, and enables the “Hold” and “Recall” feature.
No special sync instructions are required for P-Style lights. The lights will re-sync
automatically each time they are powered on.
