Product Overview

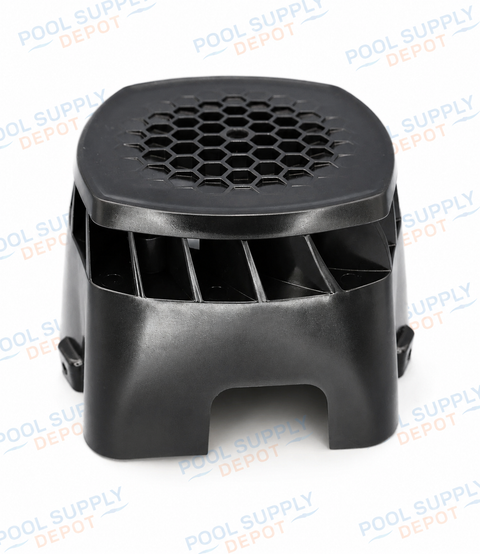

The Jandy R0851600 is a genuine OEM replacement fan shroud kit designed for compatible Jandy VS FloPro pumps equipped with a DV2A variable-speed motor.
The fan shroud mounts over the rear motor fan area and helps protect the cooling fan while directing airflow around the motor. Proper airflow is important for maintaining motor cooling and reliable pump operation.
This replacement kit includes the fan shroud and four mounting screws. It is intended for replacing a cracked, missing, damaged, or deteriorated motor fan cover.
Compatible Pump Models
The R0851600 fan shroud kit is compatible with select Jandy VS FloPro DV2A variable-speed pumps, including:
- Jandy VSFHP185DV2A
- Jandy VSFHP185DV2AS
- Jandy VSFHP270DV2A
- Jandy VSFHP270DV2AS
Compatible motor sizes include:
- 1.85 HP DV2A motors
- 2.7 HP DV2A motors
Confirm the complete pump model number and motor configuration before ordering.
Key Features
- Genuine Jandy OEM replacement part
- Designed for compatible Jandy DV2A motors
- Fits select 1.85 HP and 2.7 HP VS FloPro pumps
- Protects the rear motor cooling fan
- Helps direct cooling airflow around the motor
- Replaces a cracked, broken, or missing fan shroud
- Includes four mounting screws
- Designed to match the original factory installation
- Simple replacement during professional pump service
Specifications
| Specification | Details |
|---|---|
| Brand | Jandy |
| Manufacturer | Fluidra |
| Product Type | Motor Fan Shroud Replacement Kit |
| Manufacturer Part Number | R0851600 |
| SKU | R0851600 |
| Compatible Pump Series | Jandy VS FloPro DV2A |
| Compatible Motor Sizes | 1.85 HP and 2.7 HP |
| Compatible Models | VSFHP185DV2A, VSFHP185DV2AS, VSFHP270DV2A and VSFHP270DV2AS |
| Fan Shroud Included | Yes |
| Mounting Screws Included | Yes, Four |
| Motor Included | No |
| Variable-Speed Drive Included | No |
| Cooling Fan Included | No |
| Pump Wet End Included | No |
| Barcode / UPC | Not Provided |
| Condition | New |
| Installation | Professional Installation Recommended |
What Is Included
- One Jandy DV2A motor fan shroud
- Four fan-shroud mounting screws
Only the components specifically listed above are included.
Items Not Included
This replacement kit does not include:
- Pump motor
- Variable-speed drive
- Motor cooling fan
- Drive cover
- Wiring compartment cover
- RS485 access cover
- Pump housing
- Backplate
- Impeller
- Diffuser
- Shaft seal
- Electrical wiring
- Communication cable
- Installation labor
Fan Shroud Function
The fan shroud covers the cooling-fan area at the rear of the motor. It helps protect the fan from accidental contact and assists with directing airflow around the motor housing.
A damaged or missing fan shroud may expose the cooling fan to:
- Physical impact
- Leaves and debris
- Small animals or insects
- Loose wiring
- Accidental contact during servicing
- Reduced or disrupted airflow
The pump should not be operated with loose components near the motor fan.
When to Replace the Fan Shroud
Replacement may be necessary when the existing shroud has:
- Cracks or broken sections
- Missing mounting tabs
- Stripped screw locations
- Impact damage
- Heat damage
- UV deterioration
- Excessive vibration
- Missing mounting screws
- Contact with the cooling fan
Inspect the cooling fan and motor housing before installing the replacement shroud.
Compatibility Information
The R0851600 fan shroud is designed for compatible Jandy pumps using the DV2A motor platform.
Before ordering, confirm:
- Complete pump model number
- Motor horsepower
- DV2A motor designation
- Existing fan-shroud shape
- Mounting-screw locations
- Pump production configuration
Do not select this part based only on the Jandy brand or variable-speed designation. Older Jandy pumps and pumps using different motor platforms may require another fan cover.
Installation Recommendations
Installation should be completed with the pump electrically disconnected.
Recommended installation steps:
- Turn off power at the circuit breaker.
- Lock out the electrical supply when possible.
- Confirm that the motor and cooling fan have stopped completely.
- Remove the damaged fan shroud and mounting screws.
- Inspect the cooling fan for cracks or damage.
- Remove any leaves or debris from the motor ventilation area.
- Position the replacement shroud over the fan.
- Install the four supplied mounting screws.
- Tighten the screws evenly without overtightening.
- Confirm the fan rotates freely without contacting the shroud.
- Restore power and inspect the pump for abnormal noise or vibration.
Never reach into the fan area while electrical power is connected.
Confirm Before Ordering
Please confirm all of the following before purchasing:
- Your pump uses a Jandy DV2A variable-speed motor
- Your pump model is compatible with R0851600
- Your pump uses a 1.85 HP or 2.7 HP VS FloPro motor
- The existing fan shroud matches the replacement design
- The cooling fan itself is not damaged
- The motor does not have additional damage requiring replacement
Warranty Information
Manufacturer warranty coverage is subject to Jandy’s current written warranty terms, product eligibility, proof of purchase, purchase channel, and installation requirements.
Warranty coverage generally applies to qualifying manufacturing defects and does not cover damage caused by:
- Improper installation
- Overtightened mounting screws
- Impact damage
- Motor overheating
- Water exposure
- Chemical damage
- UV deterioration
- Use with an incompatible motor
- Missing or damaged cooling-fan components
- Normal wear and tear
