Product Overview

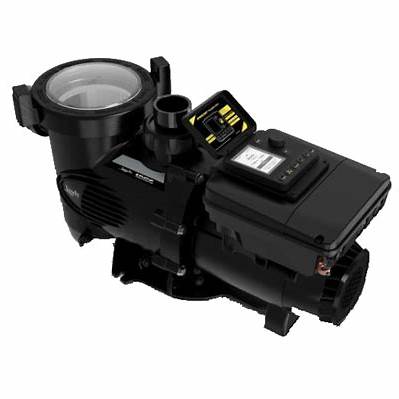

The Jandy VS PlusHP™ VSPHP270DV2AS is a high-performance 2.7 HP variable-speed pool and spa pump engineered for energy-efficient circulation, quiet operation, and advanced equipment control. Its mid-sized hydraulic platform delivers the performance required for larger residential pools, spas, heaters, water features, and other demanding circulation applications while offering the efficiency advantages of variable-speed technology.

This DV2AS configuration includes the Jandy SpeedSet™ Controller factory-installed, providing convenient local programming directly at the equipment pad. The pump features an auto-sensing dual-voltage motor that automatically recognizes either 115V or 208-230V power, simplifying replacement and new installations. Two programmable auxiliary relays can also be used to control compatible additional equipment such as a salt chlorinator or booster pump.

Key Features

Genuine Jandy VS PlusHP™ variable-speed pump

Manufacturer Part Number: VSPHP270DV2AS

2.70 THP

SpeedSet™ Controller factory-installed

Auto-sensing 115V / 208-230V dual-voltage motor

Two programmable auxiliary relays

Variable-speed operation for improved efficiency

Zero-clearance TEFC permanent-magnet motor

Oversized pump basket for reduced maintenance

Tool-free strainer lid

Battery backup retains programming during power outages

Compatible with Jandy AquaLink® automation

Compatible with iQPUMP01 / iAquaLink® control options

Designed for residential pools and spas with demanding hydraulic requirements

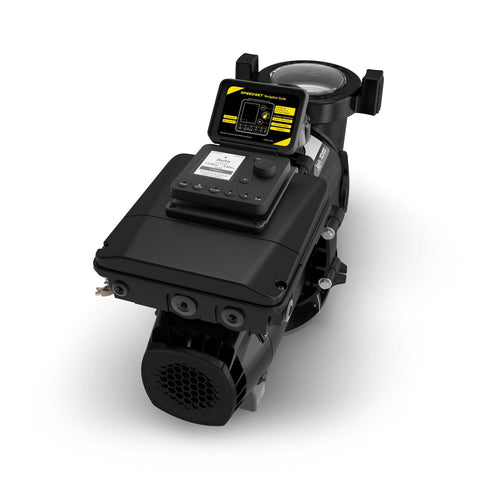

SpeedSet™ Controller Included

Unlike VSPHP270DV2A, where the controller is sold separately, VSPHP270DV2AS includes the SpeedSet controller preinstalled from the factory.

SpeedSet provides an intuitive interface for programming pump speeds, schedules, and operating functions directly at the equipment pad.

Dual-Voltage Flexibility

The auto-sensing motor automatically adapts to the incoming power supply, supporting either 115V or 208-230V operation. This can simplify retrofit installations where changing the existing electrical supply would otherwise require additional electrical work.

Two Auxiliary Relays

Two programmable auxiliary relay connections allow compatible equipment to be integrated with the pump. Depending on the system configuration, these can be used for equipment such as:

• Salt chlorine generators
• Booster pumps
• Other compatible auxiliary pool equipment

Specifications

Warranty & Compatibility

⚠️ Important Purchase Notice

IMPORTANT JANDY INSTALLATION NOTICE: Jandy pool equipment should be installed and serviced by a qualified pool professional. Electrical connections, plumbing, bonding, grounding, voltage configuration, and pump setup must be completed according to Jandy installation instructions and all applicable local and national codes. Improper installation may result in equipment damage, unsafe operation, reduced performance, or may affect applicable manufacturer warranty coverage.

Pool Supply Depot strongly recommends professional installation of all Jandy pumps and pool equipment.

Customer-Facing Q&A

Q: Does VSPHP270DV2AS include the SpeedSet controller?
A: Yes. The “S” configuration includes the SpeedSet Controller factory-installed.

Q: Is this pump 115V or 230V?
A: Both. The motor automatically recognizes 115V or 208-230V power.

Q: What is the total horsepower?
A: 2.70 THP.

Q: Does it have auxiliary relays?
A: Yes. It includes two programmable auxiliary relays.

Q: Can it work with AquaLink automation?
A: Yes. The VS PlusHP is designed to integrate with compatible Jandy AquaLink automation systems.

Q: Does this pump require professional installation?
A: Pool Supply Depot strongly recommends installation by a qualified pool professional to ensure proper electrical, plumbing, grounding, bonding, programming, and system configuration.
