Product Overview

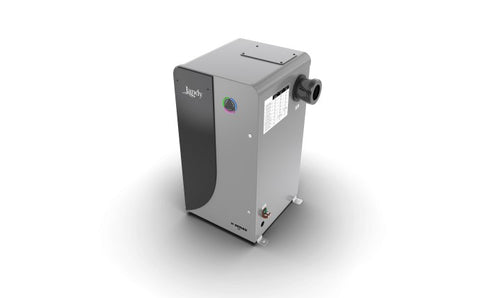

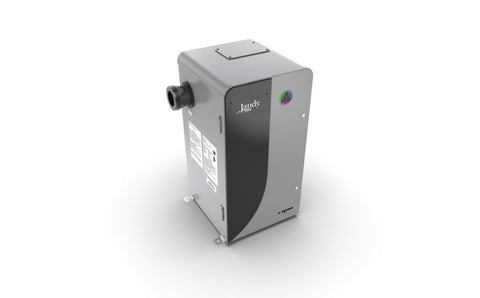

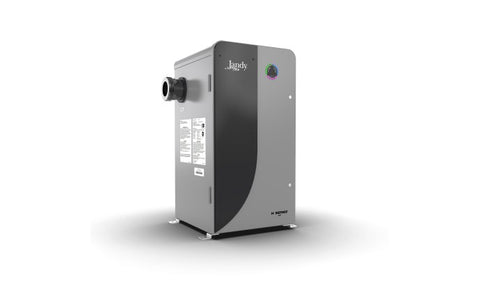

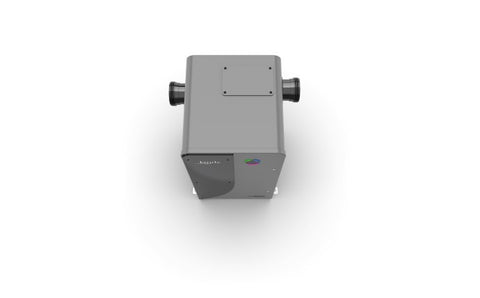

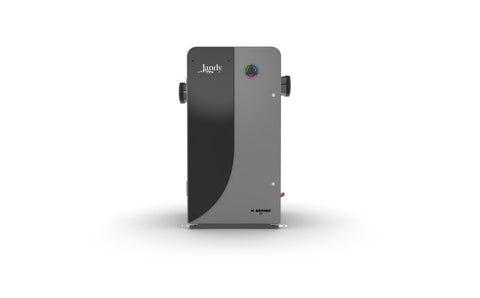

The Jandy X-Series X200 AOP System combines UV-C and ozone technologies to provide advanced supplemental pool-water treatment for residential swimming pools up to 25,000 gallons. Powered by DEL Technology, the X200 uses Advanced Oxidation Process technology to create powerful oxidation that targets contaminants traditional chlorine sanitation may leave behind. Its compact in-line design integrates directly into compatible pool circulation systems while helping deliver cleaner, clearer water and improved swimming comfort.

Ideal For

Residential pools up to 25,000 gallons

New pool equipment installations

Existing pools being upgraded with supplemental sanitation

Pool owners looking to reduce dependence on chlorine alone

Key Features

Combines UV-C and ozone to create Advanced Oxidation Process treatment

Corona-discharge ozone technology produces up to 200 mg/hr ozone output

NSF/ANSI/CAN 50 certified as a supplemental sanitizer

Maximum rated flow of approximately 30 GPM

2-inch inlet and outlet connections for in-line installation

LED status indicators communicate operation and service needs

Operates on 120V or 240V, 50/60 Hz electrical service

Benefits

The X200 supplements the pool's primary sanitizer by attacking certain contaminants and organic material as water circulates through the system.

Jandy states that the system can reduce chlorine demand, helping leave more free chlorine available for residual pool sanitation. Breaking down organic contaminants can also assist filtration and improve overall water clarity.

The combined UV-C and ozone process can help reduce chloramines associated with strong pool odors, irritated eyes, itchy skin, and uncomfortable swimming conditions.

Specifications

Warranty & Compatibility

Important Purchase Notice

The JAOPX200 is professional pool equipment involving line-voltage electrical connections, UV-C equipment, ozone generation, and pressurized plumbing. Proper installation by a qualified pool professional is strongly recommended. Confirm current Jandy warranty and installation requirements before purchasing.

Compatibility

The X200 is designed for residential swimming pools up to 25,000 gallons and should be installed as an in-line component of a properly sized circulation system.

It is intended to work alongside a primary sanitizer such as chlorine or a compatible salt-chlorine system. AOP does not replace the requirement for maintaining an approved residual sanitizer in the pool.

Confirm actual system flow, plumbing configuration, equipment-pad space, electrical service, and backpressure conditions before ordering.

Order the Correct OEM Part with Confidence

Choose the genuine Jandy X-Series X200 when your pool requires an AOP system sized for up to 25,000 gallons. Confirm pool volume, circulation flow, 2-inch plumbing, electrical service, and equipment-pad configuration before ordering to ensure the JAOPX200 is the correct system for your application.

Customer-Facing Q&A

Q: Does the X200 replace chlorine?
A: No. It is a supplemental sanitizer designed to work alongside the pool's primary sanitation system.

Q: What size pool can it treat?
A: The JAOPX200 is designed for residential pools up to 25,000 gallons.

Q: Can it be added to an existing pool?
A: Yes. Its in-line configuration is designed for both new construction and compatible retrofit installations.
