Product Overview

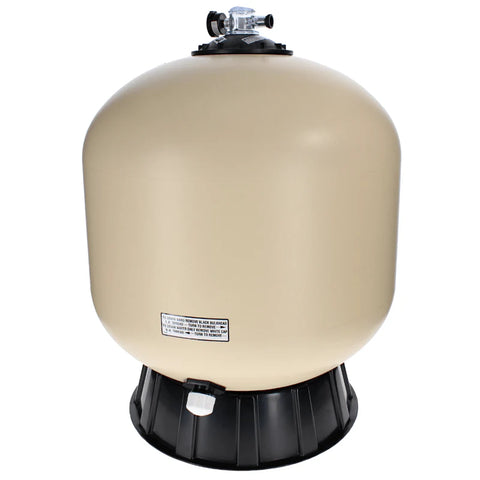

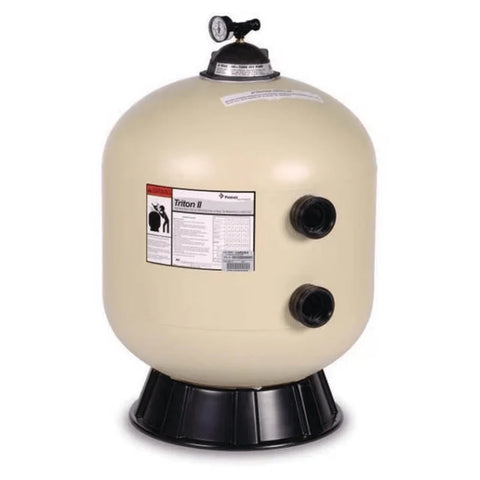

The Pentair Triton® II TR60 Side-Mount Sand Filter (EC-140264) delivers reliable, low-maintenance filtration for residential swimming pools. With 3.14 square feet of effective filtration area and a maximum flow rate of approximately 63 GPM, the TR60 is designed to provide consistent water clarity while requiring only occasional backwashing.

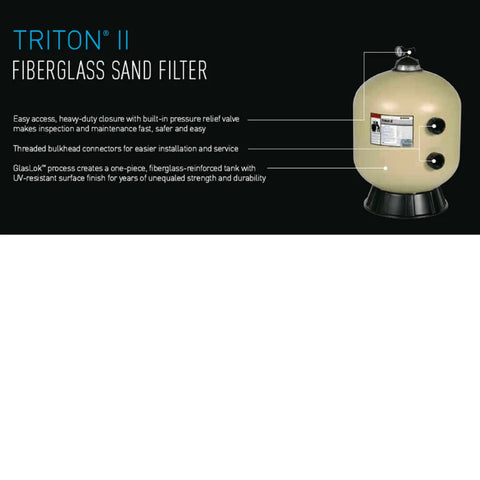

Its one-piece, fiberglass-reinforced tank features a UV-resistant surface finish for strength, corrosion resistance and dependable outdoor performance. Pentair’s internal flow design distributes water evenly across the sand bed, helping maximize filtration efficiency and extend the time between backwashing cycles.

The EC-140264 is Pentair’s e-commerce version of the standard 140264 TR60 filter. This is a side-mount filter tank without a valve; a compatible multiport or push-pull backwash valve must be purchased separately.

Key Features

• 3.14 sq. ft. effective filtration area
• Maximum flow rate of approximately 63 GPM
• Uses approximately 300 lbs. of No. 20 silica filter sand
• One-piece fiberglass-reinforced tank
• UV-resistant exterior finish
• Corrosion-resistant construction
• Side-mount plumbing configuration

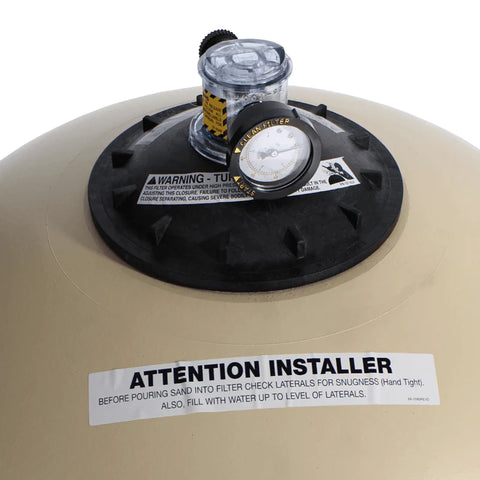

• Heavy-duty threaded tank closure
• Built-in pressure-relief valve
• Easy-to-read pressure gauge
• Automatic internal air bleed helps prevent trapped air
• Combination sand and water drain simplifies servicing and winterization
• Internal flow design promotes even filtration through the sand bed
• Requires only periodic backwashing
• Valve sold separately

Pentair rates the Triton II series for a maximum continuous operating pressure of 50 PSI and a maximum internal water temperature of 104°F.

Specifications

Ideal For

• Residential in-ground swimming pools
• Pool and spa combinations
• New pool construction
• Equipment-pad renovations
• Medium to large residential pools
• Systems operating at flow rates up to approximately 63 GPM
• Pool owners seeking dependable, low-maintenance sand filtration

Benefits

• Provides reliable filtration with simple operation
• Requires no replacement cartridges or D.E. powder
• Periodic backwashing restores normal water flow
• Durable tank resists corrosion, chemicals and outdoor exposure
• Internal flow design helps use the entire sand bed effectively
• Large service opening provides access to the filter media and internal components
• Automatic air bleed helps prevent unwanted air accumulation
• Side-mount configuration provides flexible plumbing options
• Widely available replacement parts and valve options
• Proven Triton II design used by pool professionals for decades

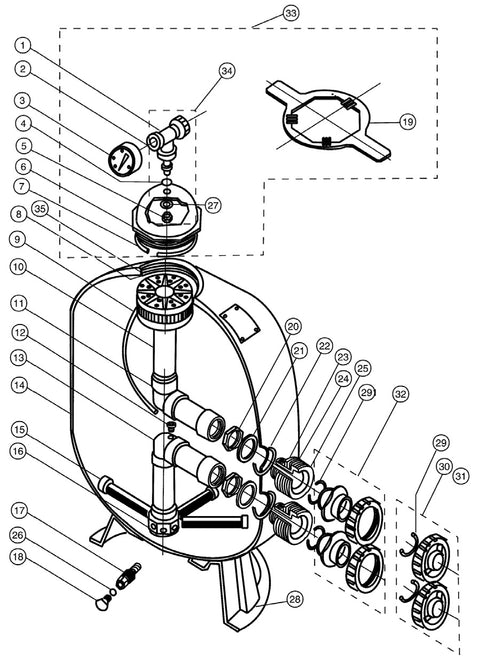

What’s Included

• Pentair Triton® II TR60 filter tank
• Internal diffuser assembly
• Lateral assembly
• Heavy-duty threaded top closure
• Pressure gauge
• Pressure-relief assembly
• Internal air-bleed assembly
• Combination sand and water drain
• Installation documentation

Filter sand, unions and the side-mounted backwash or multiport valve are not included unless specifically stated by the seller.

Valve Compatibility

The TR60 requires a compatible Pentair side-mounted multiport or push-pull valve. Pentair identifies valves as separate products and does not include one with the EC-140264 filter.

Valve selection depends on:

• Plumbing size
• Multiport or push-pull operation
• Existing equipment-pad layout
• Waste-line configuration
• Filter-to-valve connection spacing

Confirm that the selected valve is specifically approved for the Pentair Triton II TR60 before ordering.

Filter Media Requirements

The TR60 uses approximately 300 pounds of No. 20-grade silica filter sand. The recommended media should generally have a particle size between approximately 0.45 and 0.55 millimeters.

Do not use play sand, construction sand or excessively fine media. Incorrect filter media can restrict water flow, enter the pool through the laterals or reduce filtration performance.

Alternative approved sand-replacement media may be used only when the manufacturer’s volume and weight conversion instructions are followed.

Installation Requirements

Install the filter on a solid, level equipment pad with enough clearance for plumbing, valve operation and future servicing. The circulation pump must be sized so that the flow rate does not exceed the filter’s rated capacity.

A properly configured backwash line is required. The waste line must be able to handle the full backwash flow without restricting the system.

Always turn off the pump and fully relieve internal pressure before opening or servicing the filter. Pentair’s Triton II design includes a pressure-relief assembly, threaded bulkhead connectors and service access to the sand bed and internal components.

Confirm Before Ordering

Please verify:

• The required model is TR60
• The correct SKU is EC-140264
• A 3.14 sq. ft. sand filter is appropriate for the pool
• System flow does not exceed approximately 63 GPM

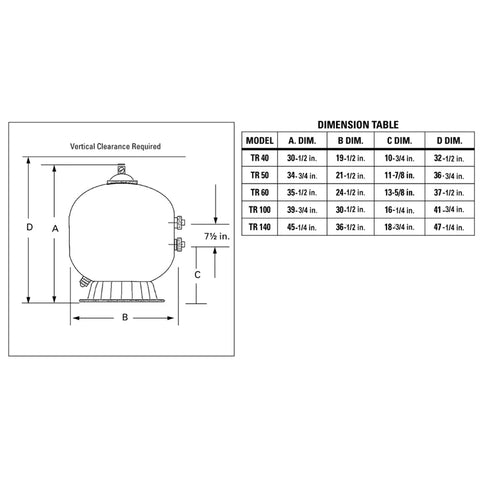

• The equipment pad can accommodate a tank approximately 24.5 inches in diameter
• Approximately 300 lbs. of filter sand is available
• A compatible side-mounted valve is already installed or will be purchased separately
• The existing plumbing arrangement matches the selected valve
• Adequate clearance is available above and around the filter
• The circulation pump is properly sized for the filter

Warranty Information

The EC-140264 is designated by Pentair as an e-commerce-exclusive product. Warranty eligibility is subject to Pentair’s current warranty terms, purchase requirements and installation guidelines.

Professional installation by a qualified pool professional is recommended. Improper installation, incorrect filter media, excessive system pressure, freeze damage or operation outside the published specifications may affect warranty coverage.
