Product Overview

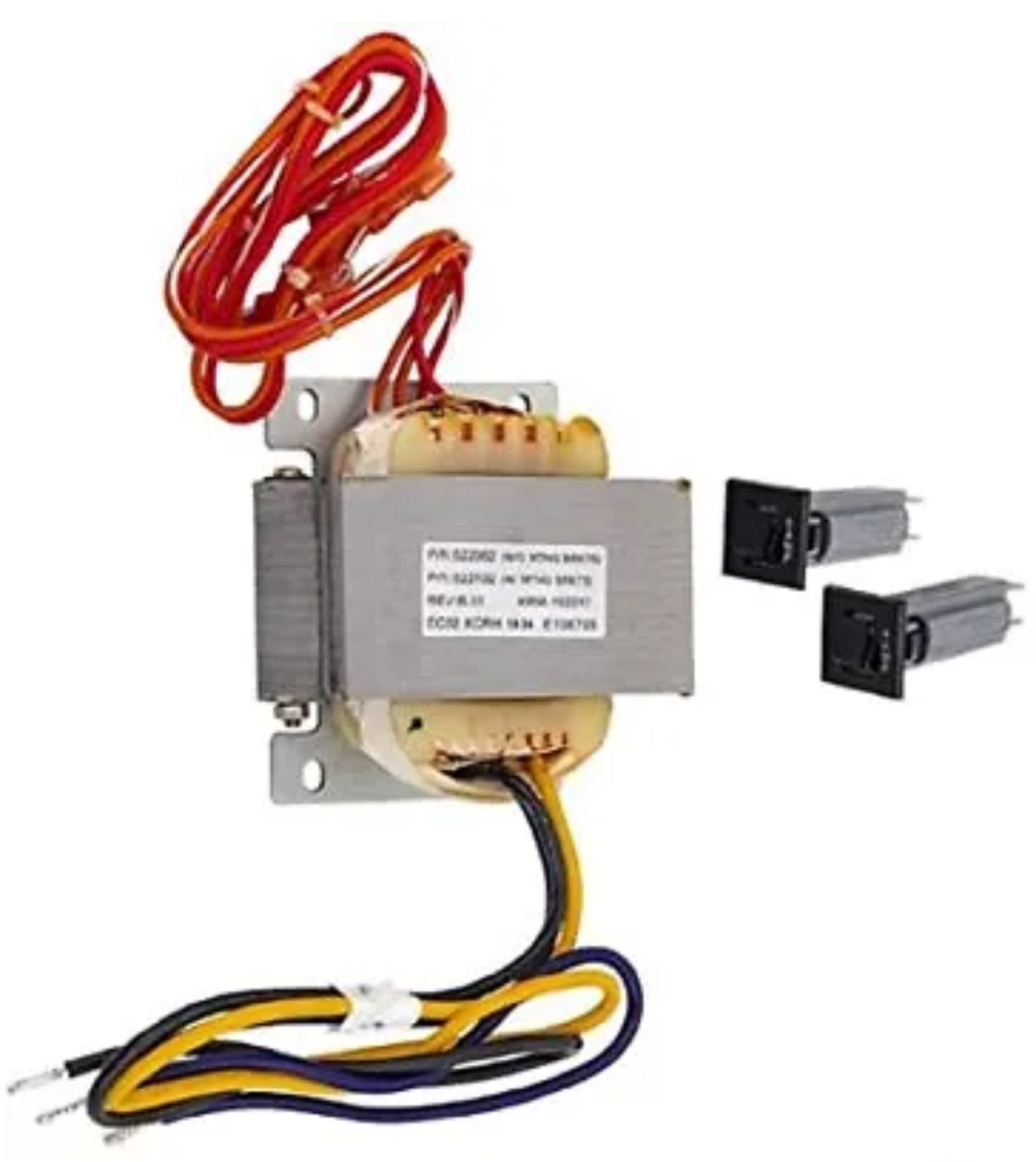

Restore the system transformer in your Pentair IntelliCenter® control system with Pentair replacement part 522102Z. Pentair lists this part as the IntelliCenter system transformer and identifies it as the transformer used for current-style IntelliCenter upgrade installations. It is a replacement component for an existing control system, not a complete automation kit. pentair.com
If you are repairing an IntelliCenter panel or replacing a transformer during an upgrade, check the part number and panel configuration before ordering. Pentair identifies 522062Z as the transformer for legacy EasyTouch® and IntelliTouch® upgrade installations. flowandfiltrationsolutions.pentair.com
Key Features
- Genuine Pentair IntelliCenter system replacement part
- Pentair part number 522102Z
- Listed for IntelliCenter control systems
- Identified by Pentair for current-style IntelliCenter upgrade installations
- Replaces the system transformer as a service component
Specifications & Fitment
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Part number | 522102Z |
| Product type | System transformer |
| Listed application | IntelliCenter control system |
| Upgrade application | Current-style IntelliCenter upgrades |
| Legacy upgrade transformer | 522062Z; verify before ordering |
Fitment note: The system transformer is different from an IntelliChlor® salt chlorine generator transformer and the transformer used with an IntelliCenter wireless remote charging cradle. Match the existing part and your panel’s configuration before purchase. Pentair lists these as separate components. pentair.com
Installation & Troubleshooting
A qualified pool equipment technician or electrician should diagnose the system before replacing its transformer. Power issues can involve the supply wiring, breaker, connections, transformer, or another control component. Disconnect power and follow Pentair’s installation instructions and applicable electrical codes when servicing the panel.
Frequently Asked Questions
Is 522102Z a complete IntelliCenter control system?
No. It is a replacement system transformer.
Will it work with an older EasyTouch or IntelliTouch upgrade?
That depends on the upgrade configuration. Pentair identifies 522102Z for current-style upgrades and 522062Z for legacy upgrades. Confirm the required part before ordering. flowandfiltrationsolutions.pentair.com
Is this the transformer for my IntelliChlor salt cell?
No. IntelliChlor transformer support is specified separately for Pentair load and power centers.
