Product Overview
The Pentair 523557 IntelliCenter Wireless Ethernet Link Kit provides a dedicated wireless network connection between a compatible Pentair IntelliCenter® automation system and the home internet router. Operating through a high-powered 900 MHz wireless bridge, the kit eliminates the need to run a long Ethernet cable from the outdoor equipment pad into the home.
Once properly installed and connected to the home network, the IntelliCenter system can communicate with the Pentair Pool app for remote monitoring and control. Pool owners can manage compatible pumps, heaters, lights, water features, schedules, temperatures, and other automated equipment from a supported smartphone or tablet.
The kit includes matched indoor and outdoor wireless transceivers, a Power over Ethernet module, communication cables, Ethernet cables, mounting hardware, and a power adapter. The indoor and outdoor transceivers are factory matched and must remain paired for proper communication.
Pentair identifies part number 523557 as the optional 900 MHz High-Powered Wireless Ethernet Link Kit for IntelliCenter systems that do not already include a wireless connection package.
Key Features
- Genuine Pentair wireless connectivity kit
- Designed for compatible IntelliCenter automation systems
- High-powered 900 MHz wireless communication
- Creates a point-to-point Ethernet bridge
- Eliminates long Ethernet cable runs between the pool equipment and home
- Includes indoor and outdoor transceivers
- Includes Power over Ethernet hardware
- Supports remote IntelliCenter access through compatible Pentair applications
- Factory-matched transceiver pair
- Suitable for new installations and connectivity replacements
- Outdoor transceiver installs near the automation panel
- Indoor transceiver connects near the home internet router
Benefits
The 523557 provides a more reliable connection than attempting to connect an outdoor automation panel directly to a distant household Wi-Fi signal. The dedicated 900 MHz link is designed to transmit data between the equipment pad and the indoor network location.
Remote connectivity allows users to review pool status and make adjustments without standing at the outdoor control panel. Depending on the connected equipment and system programming, users can change temperatures, activate spa mode, adjust lighting, manage schedules, and control water features.
The wireless bridge is especially useful when trenching, drilling, or pulling a permanent Ethernet cable between the home and equipment pad is impractical.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Name | IntelliCenter Wireless Ethernet Link Kit |
| Manufacturer Part Number | 523557 |
| SKU | 523557 |
| Product Type | Wireless Network Bridge Kit |
| Wireless Frequency | 900 MHz |
| Primary Application | IntelliCenter Pool Automation |
| Indoor Transceiver Included | Yes |
| Outdoor Transceiver Included | Yes |
| Power over Ethernet Module | Included |
| Ethernet Cables Included | Yes |
| Mounting Hardware Included | Yes |
| AC Power Adapter Included | Yes |
| Automation Panel Included | No |
| Internet Router Included | No |
| UPC / Barcode | 788379887896 |

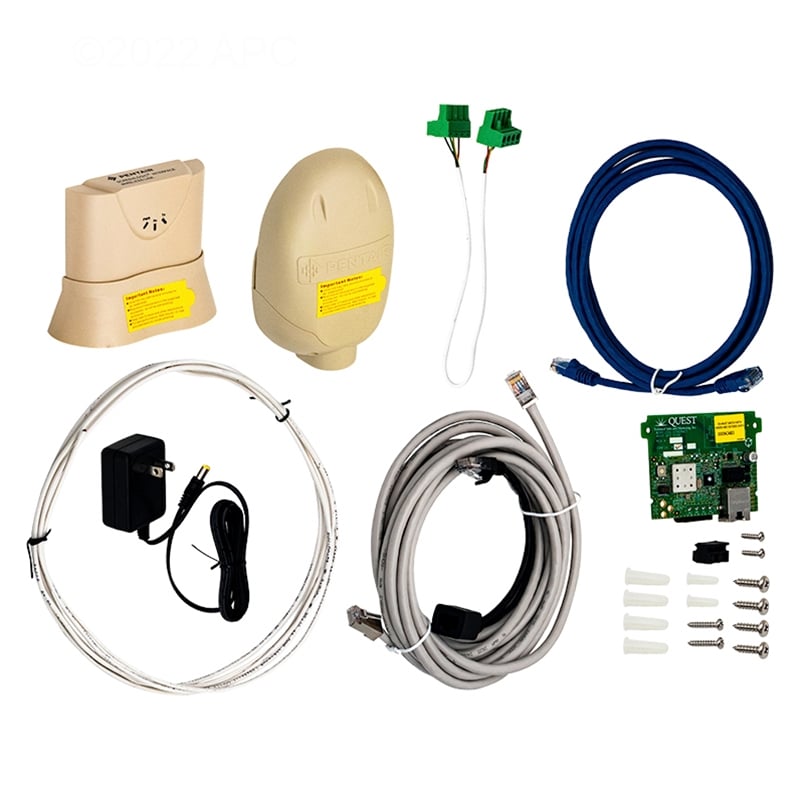

Included Components
- Outdoor wireless transceiver enclosure
- Indoor wireless transceiver with base
- Power over Ethernet module
- Ethernet cables
- Outdoor communication cable
- Indoor power adapter
- Mounting screws and anchors
- Installation instructions
Kit contents may be updated by Pentair without notice.
Installation Information
The outdoor transceiver is mounted near the IntelliCenter control panel and connected through the supplied Ethernet and Power over Ethernet components. The indoor transceiver should be positioned inside the home near the internet router and connected using the provided Ethernet cable and power adapter.
The indoor and outdoor units must have matching identification numbers. Maintain the required clearance from people and electrical equipment, and install the outdoor enclosure in accordance with Pentair instructions.
After the hardware is connected, network setup and IntelliCenter account configuration may be required. Installation by a qualified pool professional or low-voltage technician is recommended.
Confirm Before Ordering
Verify the following:
- Your automation system is a compatible Pentair IntelliCenter model.
- Your existing IntelliCenter package did not already include this wireless kit.
- You need a 900 MHz wireless bridge instead of a direct Ethernet connection.
- The required replacement or accessory part is 523557.
- Your home router has an available Ethernet port.
- Suitable indoor and outdoor mounting locations are available.
- You need the complete transceiver kit rather than an individual replacement component.
Warranty Information
The Pentair 523557 is covered by the applicable manufacturer’s limited warranty when purchased, installed, and operated according to Pentair requirements. Warranty coverage does not include incorrect wiring, damaged cables, water intrusion, lightning or power-surge damage, unauthorized modification, network configuration issues, or installation errors.
Customer Q&A
Does this kit provide internet service?
No. It connects the IntelliCenter system to an existing home network and internet connection.
Is this the IntelliCenter control panel?
No. This listing includes the wireless Ethernet link components only.
Can I use a direct Ethernet cable instead?
Yes. A properly installed Ethernet connection may be used when running a cable between the IntelliCenter panel and router is practical.
Does the kit include both transceivers?
Yes. It includes matched indoor and outdoor transceivers along with the required connection hardware.
