Product Overview

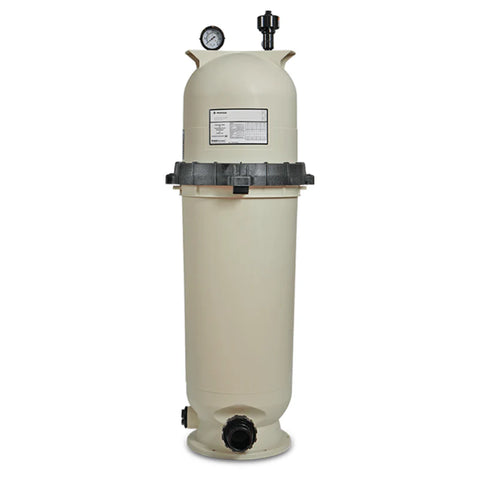

The Pentair Clean & Clear® 100 Sq. Ft. Cartridge Filter (EC-160316) delivers dependable residential pool filtration with simple maintenance and no backwashing required. Its single-cartridge design provides 100 square feet of effective filtration area and supports flow rates up to 100 GPM.

The Clean & Clear filter uses a durable, fiberglass-reinforced polypropylene tank designed to resist pool chemicals, corrosion and outdoor conditions. The removable cartridge captures debris and fine particles as small as approximately 20 microns and can be cleaned with a standard garden hose.

This filter includes the internal 100 sq. ft. cartridge element, making it ready for installation once the required plumbing connections are completed.

Key Features

• 100 sq. ft. effective filtration area
• Maximum rated flow of 100 GPM
• Single-cartridge filtration design
• Filter cartridge included
• No backwashing required
• Helps conserve water compared with sand and D.E. filters
• Fiberglass-reinforced polypropylene tank
• Chemical- and corrosion-resistant construction
• High Flow™ manual air-relief valve
• Continuous internal air relief supports filtration efficiency
• Easy-access locking ring
• Cartridge removes easily for hose cleaning
• 2-inch plumbing connections
• 1.5-inch drain cap and washout
• Suitable for residential pools and pool/spa combinations

Pentair’s locking ring requires only approximately one-half revolution to secure the filter tank and provides convenient access to the cartridge and internal components.

Specifications

Pentair’s published CC100 ratings list a 100-square-foot filtration area, 100 GPM flow rate, 15.5-inch diameter and approximately 61 inches of required vertical clearance for cartridge removal.

Ideal For

• Residential in-ground swimming pools
• Pool and spa combinations
• New pool construction
• Equipment-pad upgrades
• Variable-speed pump systems
• Pools operating at flow rates up to 100 GPM
• Installations where water conservation is important
• Pool owners seeking easy cartridge maintenance

Benefits

• Produces clear pool water without sand or D.E. powder
• No backwashing means less water waste
• Cartridge cleans easily with a garden hose
• Large filtration area supports longer cleaning intervals
• Compact 15.5-inch tank diameter saves equipment-pad space
• Chemical-resistant tank provides dependable outdoor durability
• Locking ring allows quick access without special tools
• Included cartridge reduces the number of components needed for installation
• Compatible with many standard residential pool pumps

What’s Included

• Pentair Clean & Clear CC100 filter tank
• 100 sq. ft. cartridge element
• Filter lid
• Locking ring
• High Flow™ manual air-relief valve
• Pressure gauge
• Internal air-relief assembly
• Drain cap and washout assembly
• Installation documentation

Plumbing pipe, unions, valves and installation materials are not included unless specifically stated by the seller.

Cartridge Maintenance

The cartridge should be cleaned when the filter pressure rises approximately 10 PSI above the recorded clean-starting pressure or when pool circulation noticeably decreases.

To clean the element:

1. Shut off the circulation pump.
2. Prevent the pump from restarting automatically.
3. Open the manual air-relief valve.
4. Confirm the pressure gauge reads zero.
5. Remove the locking ring and filter lid.
6. Remove the cartridge.
7. Rinse between the pleats with a garden hose.
8. Inspect the element for tears, collapsed pleats or damaged end caps.
9. Reassemble the filter and follow the proper startup procedure.

Never loosen or remove the locking ring while the system is pressurized.

Installation Requirements

Install the filter on a stable, level equipment pad with sufficient space for plumbing and future servicing. Approximately 61 inches of total vertical clearance is required to remove the cartridge element.

The pump and plumbing system must be sized so that water flow does not exceed 100 GPM or the rating of the lowest-rated system component.

The filter must not operate above 50 PSI or with internal water temperatures exceeding 104°F.

Confirm Before Ordering

Please verify:

• The required model is Clean & Clear CC100
• The correct SKU is EC-160316
• A 100 sq. ft. filter is appropriate for the pool
• System flow does not exceed 100 GPM
• Existing plumbing is compatible with 2-inch connections
• Approximately 61 inches of vertical clearance is available
• The equipment pad can accommodate a filter approximately 15.5 inches in diameter
• A single-cartridge filter is preferred
• The cartridge is included with the filter
• The circulation pump is properly matched to the filter

Warranty Information

The Pentair Clean & Clear Cartridge Filter is covered by Pentair’s applicable manufacturer’s limited warranty when purchased, installed and operated according to current Pentair requirements.

Warranty eligibility may depend on the seller, installation method and installer qualifications. Damage caused by improper installation, excessive system pressure, freezing, chemical misuse or operation outside the published specifications may not be covered.

Professional installation by a qualified pool professional is recommended.
