Product Overview

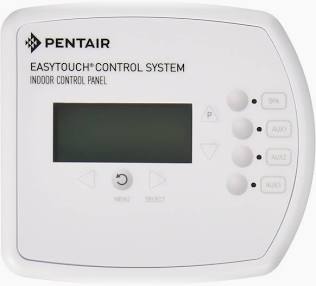

The Pentair EasyTouch Indoor Control Panel (P/N 520549) gives you complete control of your Pentair EasyTouch 8-Circuit Automation System from the convenience of inside your home. Designed as an optional wired remote interface, this indoor panel mirrors the operation of your outdoor EasyTouch control system, allowing you to manage pool and spa functions without going outside.

Featuring an easy-to-read LCD display and intuitive push-button controls, the Indoor Control Panel provides instant access to pool and spa temperature settings, equipment status, lighting, water features, auxiliary circuits, and heating functions. Whether you're preparing your spa before heading outside or adjusting equipment schedules from indoors, the EasyTouch Indoor Panel offers convenient centralized control.

The panel connects directly to the EasyTouch Load Center motherboard using low-voltage wiring and is specifically designed for EasyTouch 8-Circuit Pool & Spa Control Systems. It supports operation of pumps, heaters, IntelliChlor® Salt Chlorine Generators, valve actuators, lighting, waterfalls, fountains, and other auxiliary equipment connected to your EasyTouch automation system.

Key Features

Controls Pentair EasyTouch 8-Circuit Automation Systems

Convenient indoor wired remote control

Large backlit LCD display

One-touch Pool and Spa operation

Controls heaters and temperature settings

Operates lighting, water features, pumps and auxiliary circuits

Displays equipment status and system diagnostics

Easy menu-driven programming

Simple low-voltage connection to EasyTouch Load Center

Genuine Pentair OEM Replacement Part

Benefits

Operate your pool without going outside

Quickly switch between Pool and Spa modes

Easily adjust water temperatures

Monitor equipment status from indoors

Control lighting and water features with a single button

Improve everyday convenience for homeowners

OEM Pentair quality for long-term reliability

Perfect replacement or addition to existing EasyTouch systems

Specifications

Warranty & Compatibility

Installation Information

The Pentair 520549 connects directly to the EasyTouch Load Center motherboard using low-voltage communication wiring. Professional installation is recommended to ensure proper communication and configuration with your existing EasyTouch automation system.

This panel is intended for indoor installation in a clean, dry location.

Confirm Before Ordering

Please verify the following before purchasing:

• Your automation system is a Pentair EasyTouch 8-Circuit System
• You need the Indoor Wired Control Panel
• This is not a wireless remote
• This panel does not include an EasyTouch Load Center
• Compatible communication wiring is available between the Load Center and indoor mounting location

Warranty Information

Pool Supply Depot is an Authorized Pentair Dealer.

Pentair products are covered by the manufacturer's warranty. Warranty coverage may vary depending on installation type and whether the product is professionally installed. Please refer to Pentair's warranty guidelines for complete coverage details.

Customer-Facing Q&A

Q: What automation system is this compatible with?
A: This panel is designed specifically for Pentair EasyTouch 8-Circuit Automation Systems.

Q: Can this replace my damaged indoor panel?
A: Yes. It is a genuine Pentair OEM replacement for Indoor Control Panel Part Number 520549.

Q: Does this work with IntelliChlor?
A: Yes. When your EasyTouch system includes IntelliChlor integration, the indoor panel allows monitoring and control through the automation system.

Q: Is this a wireless controller?
A: No. This model is a wired indoor control panel.

Q: Can I control pool lights and water features?
A: Yes. The panel controls all circuits assigned within your EasyTouch automation, including lights, pumps, heaters, waterfalls, fountains, valve actuators, and auxiliary equipment.
