Product Overview

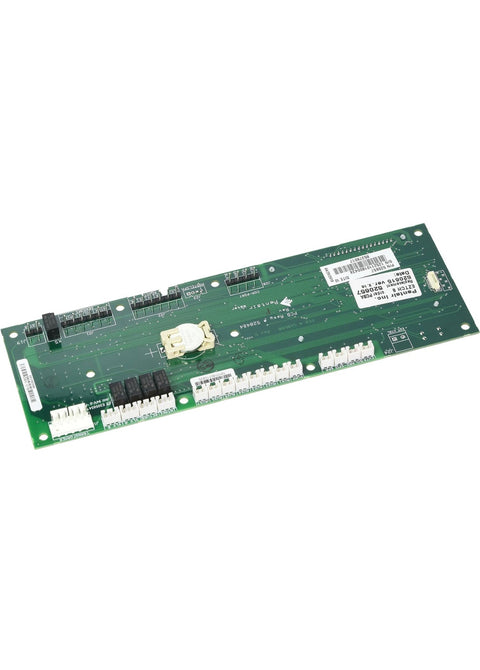

The Pentair 520657 EasyTouch UOC Motherboard is a genuine OEM replacement control board designed for compatible Pentair EasyTouch 8 Pool & Spa combination automation systems.

This 8-auxiliary motherboard serves as the primary outdoor control board for the EasyTouch automation system, managing compatible pool and spa equipment such as pumps, heaters, lighting, valves, relays, temperature sensors, and connected control accessories.

The 520657 is an ideal replacement when the original EasyTouch motherboard has failed or become damaged, allowing the existing compatible load center, relays, transformer, wiring, and other automation components to remain in service.

Key Features

Genuine Pentair OEM Replacement: Factory replacement motherboard designed specifically for compatible Pentair EasyTouch automation systems.

8-Auxiliary Configuration: Designed for EasyTouch 8 Pool & Spa combination systems requiring expanded equipment control.

Pool & Spa Combo Application: Specifically configured for shared Pool & Spa automation rather than single-body systems.

Primary Outdoor Control Board: Provides the main control interface and connections required for compatible EasyTouch equipment.

Integrated Equipment Connections: Supports connections for compatible filter pumps, heaters, auxiliary relays, motorized valves, temperature sensors, indoor controls, spa-side remotes, and communication accessories.

Benefits

Genuine Pentair OEM automation component

Restores EasyTouch 8 automation operation

Designed for Pool & Spa combination systems

Supports expanded auxiliary equipment control

Retains compatible existing load-center equipment

Supports pumps, heaters, lights, valves, and sensors

Allows motherboard replacement without replacing the complete automation system

Direct replacement for a failed or damaged 520657 motherboard

Specifications

Warranty & Compatibility

Installation Information

Disconnect all electrical power to the EasyTouch automation system before opening the load center or servicing the motherboard.

Before removing the existing board, identify and document all relay, valve, sensor, pump, heater, communication, and control-panel connections. Inspect wiring harnesses, terminals, connectors, relays, and the transformer for signs of corrosion, overheating, or physical damage.

The motherboard mounts to the back of the EasyTouch main outdoor control panel.

Because the enclosure contains line-voltage electrical equipment, installation should be performed by a qualified pool automation professional or electrician.

Confirm Before Ordering

Pentair 520657 is specifically identified as:

• EasyTouch motherboard
• 8-auxiliary configuration
• Pool & Spa combination system
• UOC / outdoor control motherboard
• Genuine Pentair replacement part

Do not confuse this board with:

• 520659 – 4-Aux Pool & Spa Combo motherboard
• 520711 – 8-Aux Single Body motherboard
• 520712 – 4-Aux Single Body motherboard

The distinction between Pool & Spa Combo and Single Body is important. Confirm the existing automation configuration and motherboard part number before ordering.

Warranty Information

The Pentair 520657 is currently listed with a 1-year general warranty. Warranty eligibility and coverage may depend on installation, purchase channel, proof of purchase, and current Pentair warranty requirements.

Customer-Facing Q&A

Q: Is the Pentair 520657 a genuine OEM motherboard?
A: Yes. It is a genuine Pentair replacement control board for compatible EasyTouch systems.

Q: Is this the 8-auxiliary version?
A: Yes. Pentair identifies the 520657 as the 8-Aux Pool & Spa Combo motherboard.

Q: Is this for a pool-only system?
A: No. The 520657 is designed for Pool & Spa combination systems. Pentair uses a different motherboard for single-body systems.

Q: What is the difference between 520657 and 520659?
A: The 520657 is the 8-Aux Pool & Spa Combo motherboard, while the 520659 is the 4-Aux Pool & Spa Combo motherboard.

Q: Is this the complete EasyTouch automation system?
A: No. This listing is for the motherboard only. The load center, enclosure, transformer, relays, actuators, sensors, and other automation equipment are not included unless specifically stated.
