Product overview

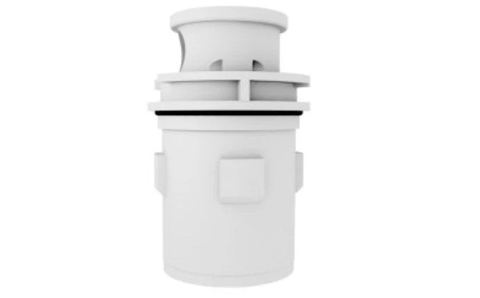

The Pentair A&A G4V Complete Head, part 230129, is a light gray in-floor cleaning head assembly for compatible G4V systems. It combines the pop-up cleaning head with the floor fitting and installation components needed when building or replacing a complete head location.
G4V uses a Venturi head design to increase water movement at the cleaning nozzle. As the head rises and directs water across the pool floor, it helps move debris toward the collection point while circulating water through the cleaning zone.
Key features
- Complete G4V assembly: Includes the internal head, floor fitting, color ring, slurry cap, and Protecta foam
- Light gray finish: Matches light gray pool surfaces and fittings
- Venturi cleaning action: Designed to strengthen the cleaning flow generated by the system
- Pop-up operation: Directs water across the pool floor as the in-floor system cycles
- Pentair A&A replacement: Identified as part 230129 in Pentair’s G4V complete-head lineup
Specifications and compatibility
| Specification | Detail |
|---|---|
| Brand | Pentair A&A In-Floor |
| Part number / SKU | 230129 |
| Product type | Complete in-floor cleaning head assembly |
| Series | G4V |
| Head design | Venturi |
| Color | Light gray |
| Included components | Internal head, floor fitting, color ring, slurry cap, and Protecta foam |
| Riser pipe | Not included; see the version sold with riser if required |
Verify your existing system before ordering. This is a G4V complete head, rather than a replacement internal alone. If your installed floor fitting is still in good condition and you only need the pop-up internal, Pentair lists the light gray G4V internal separately as 231202. For a light gray complete G4V head supplied with a riser, check 221002.
Installation and replacement context
Part 230129 is suited to a G4V installation or a repair that requires the floor fitting as well as the cleaning head. Before ordering, identify the existing A&A head series and confirm whether the project calls for a complete assembly, an internal replacement, or a version with a riser. G4V, G4, G4VHP, and Style 2 parts have different product designations.
For an existing pool, a qualified installer should assess the fitting and surrounding pool finish before replacing the complete assembly. After installation, confirm that the head seats correctly, rises when its zone runs, and returns when the cycle ends. Cleaning performance also depends on adequate pump flow and proper operation of the in-floor distribution valve.
Frequently asked questions
Is 230129 light gray or dark gray?
Part 230129 is light gray. Pentair lists 230123 as the dark gray G4V complete head.
Does this include the floor fitting?
Yes. Pentair lists the floor fitting as part of this complete-head assembly.
Does it include a riser pipe?
No. If your installation requires a supplied riser, check light gray part 221002.
What if I only need the removable internal head?
The light gray G4V internal is listed separately as 231202. Confirm the existing fitting and head series before ordering.
Is this the G4VHP version?
No. Part 230129 is the standard G4V complete head.
