Product Overview

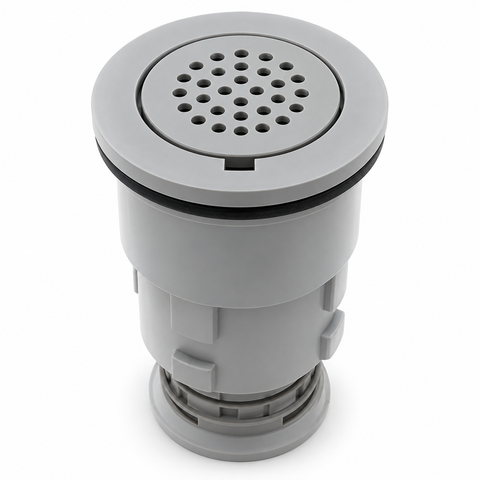

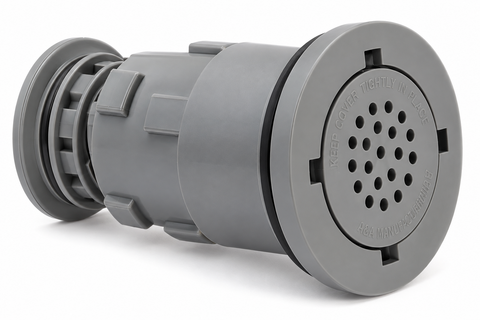

The Pentair 236703 Dark Gray G2V Venturi Retro Cleaner Head Internal is a genuine Pentair/A&A replacement cleaning head designed for compatible Style 2 / Gamma Series 2 in-floor pool cleaning systems.
The G2V Venturi design utilizes the flow of water through the cleaning head to enhance surrounding water movement, helping move dirt and debris across the pool floor while improving overall circulation.
Part 236703 installs into an existing compatible Style 2 floor fitting, allowing the removable cleaning-head internal to be replaced without replacing the permanent fitting installed in the pool shell.
The dark gray finish is well suited for darker plaster, pebble, quartz, and other coordinating pool interior finishes.
Key Features
- Genuine Pentair / A&A replacement component
- Manufacturer Part Number: 236703
- Legacy A&A Part Number: 566952
- G2V Series Venturi cleaning head
- Designed for compatible Style 2 / Gamma Series 2 systems
- Dark gray finish
- Venturi-assisted water-flow design
- Retrofits compatible existing Style 2 floor fittings
- Helps restore proper in-floor cleaning performance
- Supports debris movement and pool circulation
- Ideal replacement for worn, damaged, sticking, or missing cleaning heads
- No electrical connections required
- Designed for submerged in-floor pool applications
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair / A&A Manufacturing |
| Manufacturer Part Number | 236703 |
| Legacy A&A Part Number | 566952 |
| Product Type | In-Floor Cleaning Head Internal |
| Series | G2V / Gamma Series 2 Venturi |
| Style | Style 2 |
| Configuration | Venturi Retro Internal |
| Color | Dark Gray |
| Application | In-Floor Pool Cleaning |
| Installation | Compatible Style 2 Floor Fitting |
| Material | Injection-Molded Thermoplastic |
| UPC / GTIN | 818965011647 |
| Quantity | 1 Cleaning Head Internal |
Pentair currently identifies 236703 specifically as the Dark Gray G2V Retro Internal within its Style 2 cleaning-head product family.
Style 2 / Gamma Series 2 Compatibility
The 236703 is designed for compatible A&A Style 2 / Gamma Series 2 floor fittings.
This replacement allows an existing Style 2 system to use G2V Venturi cleaning-head technology without replacing the permanent floor fitting when that fitting remains in good condition.
Style 2 heads are not interchangeable with Style 1 or Style 1.5 systems, so the existing cleaning-head style should always be confirmed before ordering.
G2V Venturi Design
The G2V designation identifies this cleaning head as the Venturi version of the Gamma Series 2 system.
As pressurized water exits the cleaning head, the Venturi design helps draw surrounding water into the flow pattern. This creates additional water movement around the cleaning head and assists in moving debris toward the pool's main drain or designated collection area.
Properly operating in-floor cleaning heads can help improve:
- Pool-floor circulation
- Debris movement
- Distribution of sanitized water
- Temperature distribution
- Cleaning around steps and benches
- Reduction of stagnant areas
G2V vs. Standard G2
The 236703 is a G2V Venturi cleaning head, not the standard G2 variable-flow version.
For the standard Dark Gray G2 Retro Internal with variable-flow orifices, Pentair lists 236683.
| Cleaning Head | Dark Gray Part Number |
|---|---|
| G2 Variable Flow Retro Internal | 236683 |
| G2V Venturi Retro Internal | 236703 |
These are separate cleaning-head designs and should not be treated as the same replacement.
Available G2V Retro Colors
Pentair offers the G2V Retro Internal in several colors:
| Part Number | Color |
|---|---|
| 236744 | Black |
| 236703 | Dark Gray |
| 236701 | White |
| 236702 | Light Gray |
| 236786 | Dark Blue |
Installation Notes
Before replacing the cleaning head:
- Turn off the pool pump.
- Relieve pressure from the circulation system.
- Verify that the existing fitting is Style 2 / Gamma Series 2.
- Remove the existing internal using the proper Style 2 installation/removal tool.
- Inspect the floor fitting for debris, cracks, or damage.
- Install the new G2V internal and make sure it locks securely into position.
- Restart the system and verify proper cleaning-head operation.
The commonly used Style 2 / Gamma Series 2 installation and removal tool is Pentair Part Number 229642.
Frequently Asked Questions
What is Pentair 236703?
The 236703 is a Dark Gray G2V Venturi Retro Internal cleaning head for compatible Pentair/A&A Style 2 in-floor cleaning systems.
What is the old A&A part number?
The legacy A&A Manufacturing part number is 566952.
Does 236703 fit Style 2 systems?
Yes. It is designed for compatible Style 2 / Gamma Series 2 installations.
Is this a complete floor fitting?
No. 236703 is the removable cleaning-head internal. The permanent floor fitting installed in the pool is a separate component.
Is 236703 the same as 236683?
No.
236703 = Dark Gray G2V Venturi Retro Internal
236683 = Dark Gray G2 Variable Flow Retro Internal
What color is 236703?
Pentair officially identifies the color as Dark Gray. Some distributors shorten the description to simply “Gray.”
