Product Overview

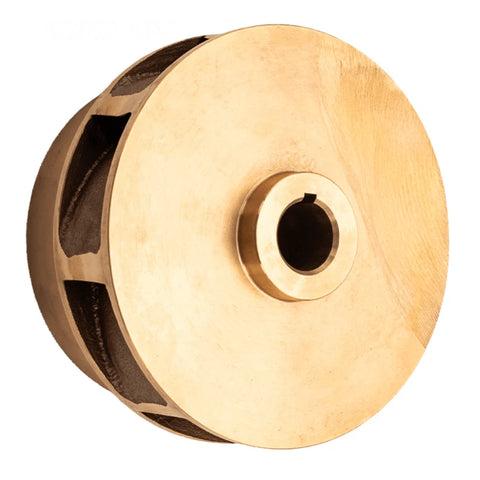

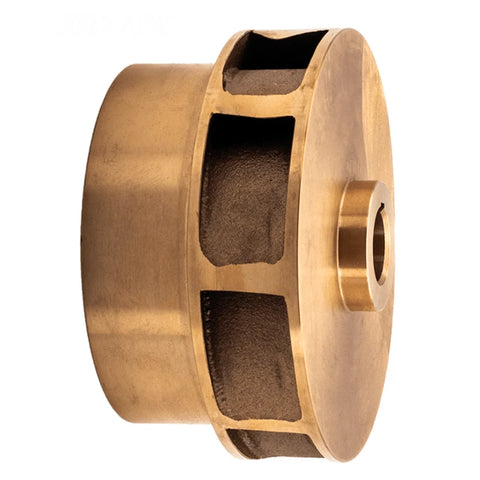

The Pentair High Head C-Series Brass Impeller | 073830 is a genuine OEM replacement impeller designed for select 10 HP Pentair C-Series high-performance commercial pool and spa pumps.

Engineered specifically for high-head applications, the 073830 converts motor power into the hydraulic pressure and flow required for demanding commercial circulation systems.

This heavy-duty impeller features a cast brass/bronze construction and closed-face, 8-vane design, providing excellent durability and hydraulic performance in commercial pool, spa, water-feature, and aquatic-facility applications.

Pentair specifies the 073830 for compatible:

• CH-100 – 10 HP, Single Phase
• CHK-100 – 10 HP, Three Phase
• CHKL-100 – 10 HP, Three Phase

This is the HIGH HEAD impeller. It should not be confused with the 070226 medium-head 10 HP impeller.

Key Features & Benefits

• Genuine Pentair OEM Replacement
• Designed for 10 HP C-Series Pumps
• High-Head Hydraulic Configuration
• Cast Brass / Bronze Construction
• Closed-Face Impeller Design
• 8-Vane Configuration
• 5-3/8" Outside Diameter
• Fits Single- and Three-Phase Applications
• Commercial Pool & Spa Application
• Precision Keyed Shaft Connection
• Designed for Demanding Continuous-Duty Systems

Specifications

Current distributor specifications confirm the 5.375" outside diameter, 4.6-lb weight, bronze construction, and UPC 788379700058.

Compatible Pentair C-Series Pumps

The 073830 is designed for the following high-head 10 HP C-Series configurations:

CH-100

10 HP – Single Phase – High Head

CHK-100

10 HP – Three Phase – High Head

CHKL-100

10 HP – Three Phase – High Head

Pentair’s current catalog specifically lists 073830 for CH-100 / CHK-100 10 HP high-head applications, with Pentair replacement-parts documentation also identifying the CHKL-100 configuration.

High Head vs. Medium Head

IMPORTANT COMPATIBILITY NOTICE

Pentair uses different impellers for high-head and medium-head C-Series pumps, even when the motor horsepower is the same.

For 10 HP applications:

073830
10 HP High Head
CH-100 / CHK-100 / CHKL-100

070226
10 HP Medium Head
CM-100 / CMK-100 / CMKL-100

These parts should not be selected solely by horsepower.

Before ordering, verify the complete pump model number and hydraulic configuration.

Heavy-Duty Brass Construction

Commercial circulation pumps may operate for extended periods and under demanding flow conditions.

The 073830 uses cast brass/bronze construction, providing:

• High structural strength
• Excellent resistance to mechanical wear
• Long service life
• Stable hydraulic performance
• Suitability for commercial pump applications

This construction is substantially heavier and more durable than the thermoplastic impellers commonly found in smaller residential pool pumps.

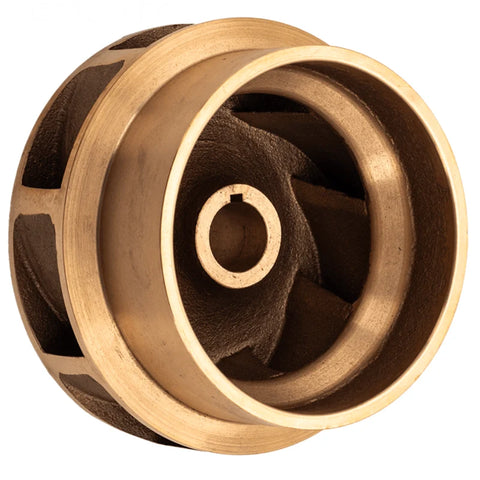

Closed-Face 8-Vane Design

The impeller uses a closed-face design with eight internal vanes.

As the pump motor rotates the impeller, water enters near the center and is accelerated outward through the vane passages.

This action converts motor energy into:

• Water velocity
• Flow
• Discharge pressure

The high-head vane geometry is specifically designed for installations requiring greater system pressure.

Typical Applications

Pentair C-Series pumps are commonly found in:

• Commercial swimming pools
• Hotels and resorts
• Municipal pools
• Schools and universities
• Recreation centers
• Competition pools
• Large spas
• Water features
• Aquatic facilities
• High-flow filtration systems

The 073830 provides the factory hydraulic configuration for compatible 10 HP high-head C-Series pumps.

Installation Guidance

Replacing a commercial pump impeller requires proper pump disassembly and inspection.

During replacement, technicians should also inspect:

• Mechanical shaft seal
• Impeller key
• Impeller lock screw
• Impeller washer
• Washer gasket
• Pump shaft
• Volute
• Pump seals and O-rings

Pentair lists separate associated components including the 071037 impeller lock screw, 071048 impeller washer, and 071046 impeller key within the C-Series assembly.

Professional installation is recommended.

Frequently Asked Questions

What horsepower pump uses Pentair 073830?
It is designed for compatible 10 HP Pentair C-Series high-head pumps.

Which pump models fit 073830?
Compatible models include CH-100, CHK-100, and CHKL-100.

Is this a high-head or medium-head impeller?
High head.

What is the medium-head 10 HP version?
Pentair lists 070226 for compatible 10 HP medium-head C-Series configurations.

What material is the impeller?
It is manufactured from cast brass/bronze.

How large is it?
The outside diameter is approximately 5-3/8 inches.

How many vanes does it have?
The 073830 uses an 8-vane closed-face design.

Will it fit a 7.5 HP C-Series pump?
No. Pentair lists 073829 as the high-head impeller for compatible 7.5 HP CH-75 / CHK-75 / CHKL-75 pumps.
