Product Overview

High-Power Wireless Link Kit For IntelliCenter, IntelliTouch, and EasyTouch Control Systems.

The Pentair 523434 High Power Wireless Link Kit is a matched pair of indoor and outdoor 902-928 MHz wireless transceivers that connects a Pentair IntelliCenter, IntelliTouch, or EasyTouch control system at the equipment pad to the home network, without running a cable from the house to the pad.

This equipment has been tested and found to comply with the limits for a Class B digital device. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Ideal For

IntelliCenter, IntelliTouch, and EasyTouch owners who want a wireless network link to the equipment pad

Installations where running Ethernet cable from the home to the pad is impractical

Replacing a failed transceiver pair

Key Features

Matched transceiver pair: indoor and outdoor units ship from the factory with matching ID numbers.

902-928 MHz wireless link between the equipment pad and the home.

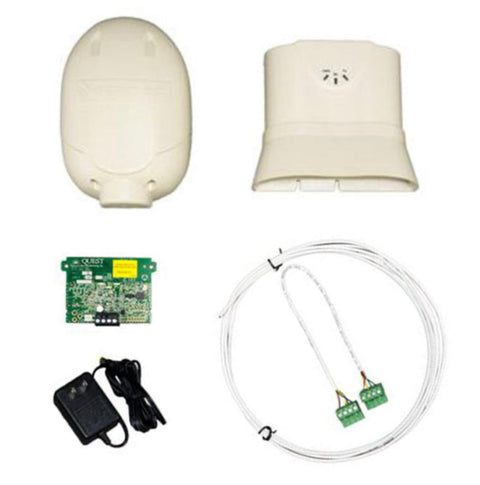

Includes installation hardware: 15 ft. Ethernet cable, AC power adapter, mounting screws and anchors.

The High Power Wireless Link consists of an indoor and outdoor 902-928 MHz wireless transceiver.

Note: The wireless transceivers ship from the factory as a matched pair.

The ID numbers on each transceiver must be the same number to function correctly.

If needed, the transceivers must be replaced as a matched pair.

Automation Control System: The High Power Wireless Link indoor and outdoor transceiver provides a wireless connection between the Internet and the IntelliCenter, IntelliTouch, or EasyTouch Control System Load Center (or Power Center) located at the equipment pad.

This eliminates the need for a hard wire connection from inside your home to the equipment pad.

Specifications

Warranty & Compatibility

Compatibility Notes

Designed for Pentair IntelliCenter, IntelliTouch, and EasyTouch control systems. The indoor and outdoor transceivers must carry the same ID number; if one fails, the transceivers must be replaced as a matched pair. Confirm your automation system model before ordering.

Installation Notes

The outdoor transceiver mounts at the equipment pad and connects to the control system load center or power center; the indoor transceiver connects to the home network. Follow the included Pentair installation guide. Installation by a qualified pool or low-voltage technician is recommended.

Customer-Facing Q&A

Q: What is the part number and UPC?
A: Pentair part number 523434, UPC 788379888008.

Q: Which automation systems does it work with?
A: Pentair IntelliCenter, IntelliTouch, and EasyTouch control systems.

Q: Are both transceivers included?
A: Yes. The kit includes a matched indoor and outdoor transceiver pair.

Q: Can I replace just one transceiver?
A: No. The transceivers must have matching ID numbers and are replaced as a matched pair.
