Product Overview

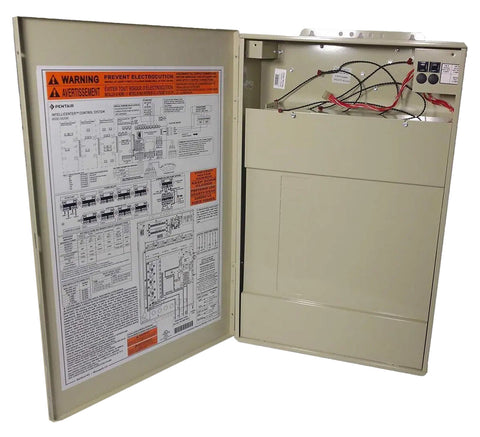

The Pentair IntelliCenter Load Center 522043 provides the electrical enclosure and relay capacity needed to build or replace an IntelliCenter pool and spa automation system. Designed for systems that do not require a built-in IntelliChlor salt chlorine generator transformer, this load center offers a clean, centralized location for pool equipment power distribution and automation components.

The enclosure includes five 3 HP auxiliary relays for controlling compatible pumps, lights, heaters, water features, blowers, and other pool or spa equipment. A compatible IntelliCenter Personality Kit must be selected separately to configure the system for a pool-only, pool-and-spa, or dual-body application.

This is an à la carte IntelliCenter component—not a complete automation package. The controller, personality kit, wireless antenna, salt cell, and other system accessories are sold separately.

Key Features

Five Included Equipment Relays
Includes five 3 HP relays for controlling compatible pool and spa equipment through a properly configured IntelliCenter system.

Integrated Electrical Load Center
Provides a centralized enclosure for automation components, circuit breakers, relays, and pool equipment electrical connections.

No IntelliChlor Transformer Included
Designed for installations that do not require integrated salt chlorine generator support or already use a separate IntelliChlor power center.

Expandable IntelliCenter Platform
Can be paired with compatible IntelliCenter Personality Kits, expansion modules, remotes, valve controls, and other accessories.

Pool and Spa Equipment Control
When completed with the required IntelliCenter components, the system can manage pumps, heating equipment, lighting, valves, water features, spa equipment, and compatible chemical-control devices.

Benefits

• Creates a customized IntelliCenter automation system
• Centralizes equipment power and relay connections
• Supports new installations and compatible system replacements
• Avoids paying for an IntelliChlor transformer when one is not required
• Provides room for future automation expansion
• Uses genuine Pentair IntelliCenter components

Specifications

Installation Information

Installation must be completed by a qualified pool professional or licensed electrician. This load center contains high-voltage electrical connections and must be installed according to applicable electrical codes, Pentair instructions, and local regulations.

The appropriate IntelliCenter Personality Kit, circuit breakers, communication accessories, actuators, sensors, and other required components must be selected separately based on the pool configuration.

Confirm Before Ordering

Confirm that part number 522043 is appropriate for your IntelliCenter installation. This model does not include an IntelliChlor transformer and should not be ordered when integrated salt chlorine generator support is required.

This product is not a complete IntelliCenter automation system. Verify all required personality, control, communication, sanitation, and valve components with your installer before purchasing.

Warranty Information

Manufacturer warranty coverage may vary based on the seller, installation method, installer qualifications, and whether the product is purchased as part of a qualifying equipment bundle. Review current Pentair warranty terms before purchase and retain all invoices and professional installation records.

Customer Q&A

Is this a complete IntelliCenter control system?
No. This is the load center component. A compatible IntelliCenter Personality Kit and other system components are required.

Does it include a salt chlorine generator?
No. It does not include an IntelliChlor salt cell or IntelliChlor transformer.

How many relays are included?
The load center includes five 3 HP relays.

Can this control both a pool and spa?
Yes, when paired with the correct pool-and-spa IntelliCenter Personality Kit and required equipment.

Does it include Wi-Fi equipment?
The Wi-Fi antenna is not included when building an IntelliCenter system à la carte and must be purchased separately.

Can a homeowner install this load center?
Professional installation is strongly required because the enclosure contains high-voltage electrical equipment and requires system-specific configuration.
