Product Overview

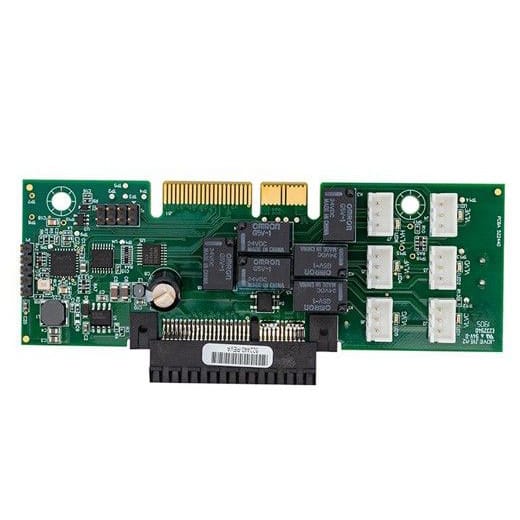

The Pentair 522039Z IntelliCenter Pool Cover Expansion Card is a genuine OEM automation module designed for compatible Pentair IntelliCenter Control Systems. This expansion board allows the IntelliCenter system to interface with automatic pool cover controllers and monitor pool cover position.

The 522039Z supports up to two pool covers, providing separate digital inputs for Pool Cover 1 and Pool Cover 2. When properly installed and configured, IntelliCenter can recognize and display cover status such as OPEN or COVERED through the automation interface.

Key Features

Supports Two Pool Covers
Provides dedicated digital inputs for monitoring up to two compatible automatic pool covers.

IntelliCenter Integration
Designed specifically for Pentair IntelliCenter automation systems.

Pool Cover Position Monitoring
Allows IntelliCenter to recognize and display open or covered pool-cover status.

Expansion Card Design
Installs directly into an available expansion-card slot on the compatible IntelliCenter motherboard.

Low-Voltage Interface
Connects to compatible pool cover controller equipment through low-voltage digital input terminals.

Benefits

• Genuine Pentair OEM automation component
• Adds automatic pool cover interface capability
• Supports up to two pool covers
• Displays pool cover position through IntelliCenter
• Integrates cover status with the existing automation platform
• Direct motherboard expansion-card installation
• Allows IntelliCenter functionality to be expanded without replacing the main control board
• Ideal for advanced pool and spa automation installations

Specifications

Installation Information

Disconnect all electrical power to the IntelliCenter Load Center or Power Center before opening the enclosure or installing the expansion card.

The 522039Z slides onto an available expansion-card connector on the IntelliCenter motherboard and is secured using the appropriate retaining screws.

If a personality card is installed, Pentair requires the personality card to occupy Slot 1. The Pool Cover Expansion Card can then be installed in an available expansion slot such as Slot 2, 3, or 4. If no personality card is installed, Slot 1 may also be used for the pool cover card.

The compatible pool cover controller connects to the Pool Cover 1 or Pool Cover 2 digital input terminals.

Confirm Before Ordering

Pentair 522039Z is specifically designed for:

• Pentair IntelliCenter Control Systems
• Automatic pool cover interface applications
• Monitoring up to two compatible pool covers
• IntelliCenter Load Center / Power Center expansion-card installations
• Pool cover open/covered position recognition

This module does not include the automatic pool cover system. The cover, motor, tracks, mechanism, rotary encoder/controller, wiring, and other pool cover equipment are separate.

The 522039Z is primarily an interface and position-monitoring expansion board. It should not be assumed to directly operate the pool cover motor unless specifically supported by the separate pool cover control system.

Warranty Information

The Pentair 522039Z is currently listed with a 60-day general warranty. Additional dealer warranty coverage may be available depending on purchase channel, installation, and current Pentair warranty terms.

Customer Q&A

Q: What does the Pentair 522039Z do?
It allows a compatible IntelliCenter automation system to interface with automatic pool cover equipment and monitor cover position.

Q: How many pool covers can it support?
The board supports up to two pool covers.

Q: Will IntelliCenter show whether the cover is open or closed?
Yes. When properly installed and configured, IntelliCenter can display the cover position as OPEN or COVERED.

Q: Does this include the automatic pool cover controller?
No. This listing is for the IntelliCenter expansion circuit board only.

Q: Does the card directly open and close the pool cover?
The 522039Z is designed primarily to interface with the pool cover controller and monitor cover position. Actual cover operation is handled by the compatible automatic pool cover equipment.
